Technical Specifications
| Parameter | Specification |
|---|---|

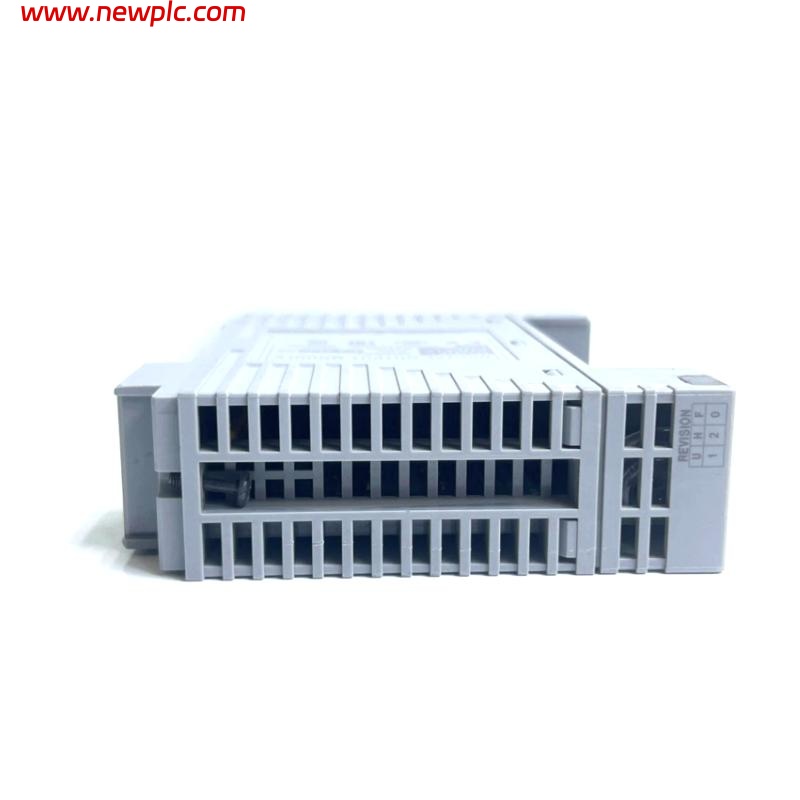

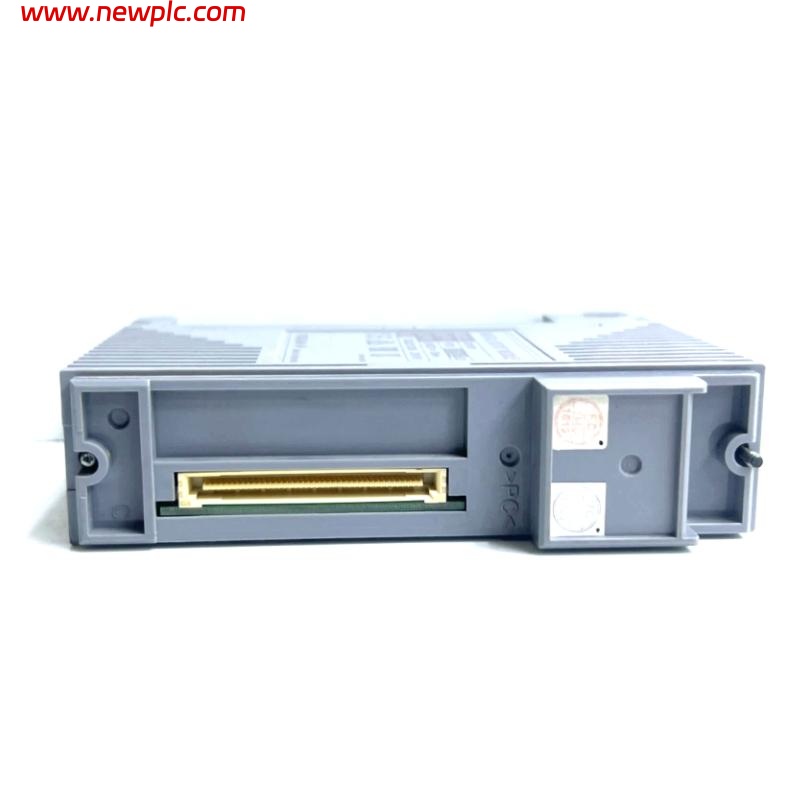

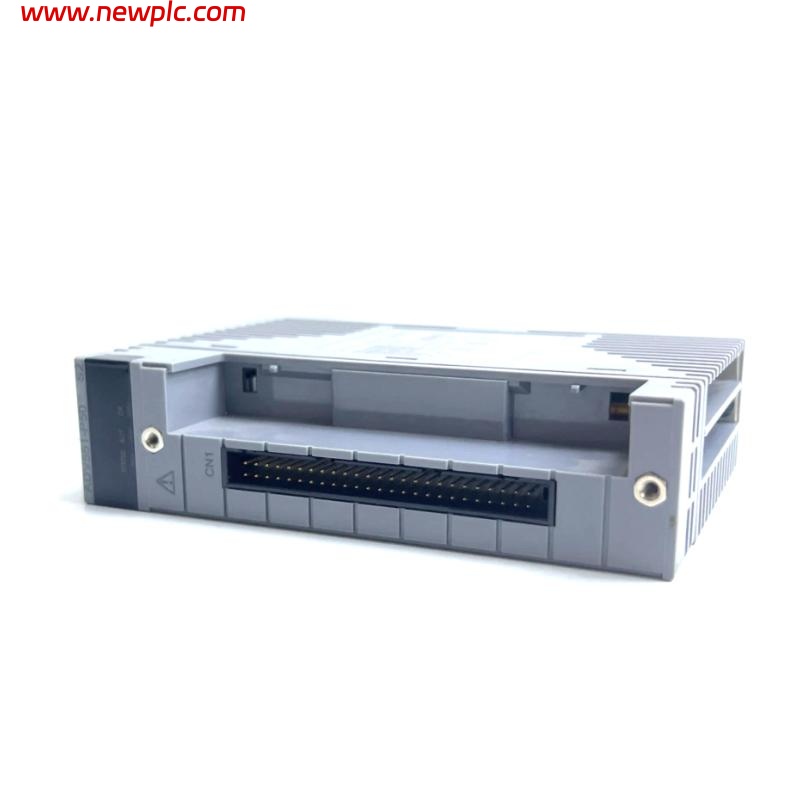

| Model | ADV551-P50/D5A00 Digital Output Module |
| Number of Output Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 50 mA |
| External Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Maximum Output ON Voltage | 2 V DC |
| Maximum Leak Current (OFF) | 0.1 mA |
| Output Format | Current sink |
| Maximum Load Current | 100 mA/channel, 26.4 V |
| Withstanding Voltage | 2 kV AC (output signal to system, 1 min), 500 V AC (common − side every 16 channels, 1 min) |
| Functions | ON/OFF status output, one-shot pulse width output, time-proportioning ON/OFF output |
| Output Response Time | ≤ 3 ms (status output), ≤ 10 ms (mixed status and pulse outputs) |
| Pulse Width | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (ON/OFF delay max. 1 ms) |
| Maximum Current Consumption | 700 mA (5 V DC), 60 mA (external power supply) |
| External Connection | Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
FAQ
FAQ
Q1: How many output channels does this module support?
A1: The module supports 32 output channels.
Q2: What is the rated voltage?
A2: The rated voltage is 24 V DC.
Q3: What is the output type?
A3: The output type is current sink.
Q4: What is the maximum load current per channel?
A4: The maximum load current is 100 mA/channel at 26.4 V.
Q5: What is the pulse width range?
A5: The pulse width range is from 8 ms to 7200 s.
Q6: What is the output response time?
A6: ≤ 3 ms for status output and ≤ 10 ms for mixed status and pulse outputs.
Q7: What is the module weight?
A7: The module weighs approximately 0.2 kg.
Q8: What types of external connections are supported?
A8: It supports pressure clamp terminals, dedicated cable (AKB331), and MIL connector cables.
