Technical Specifications
| Parameter | Specification |
|---|---|

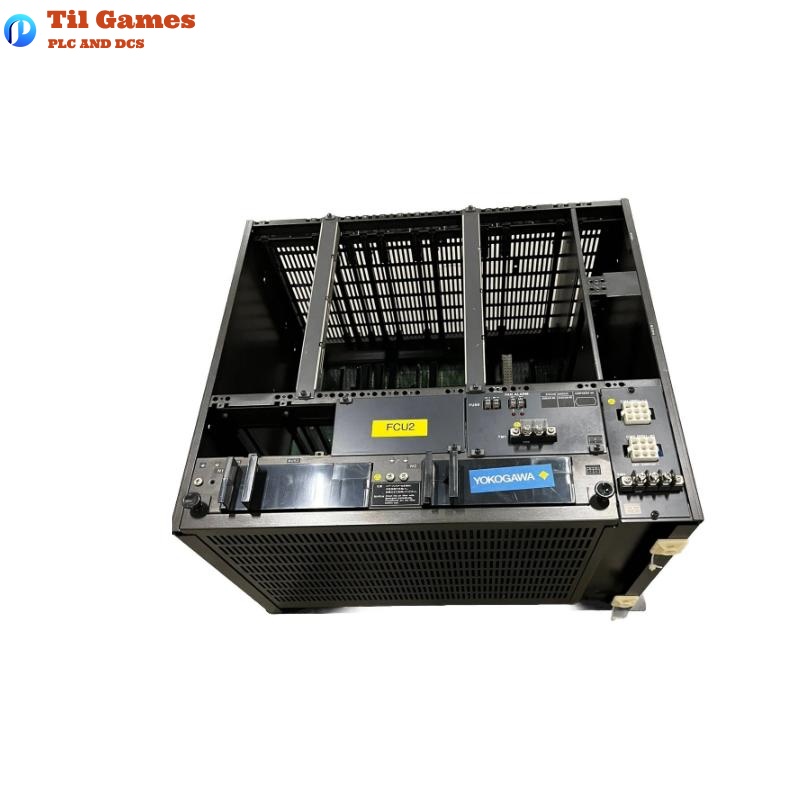

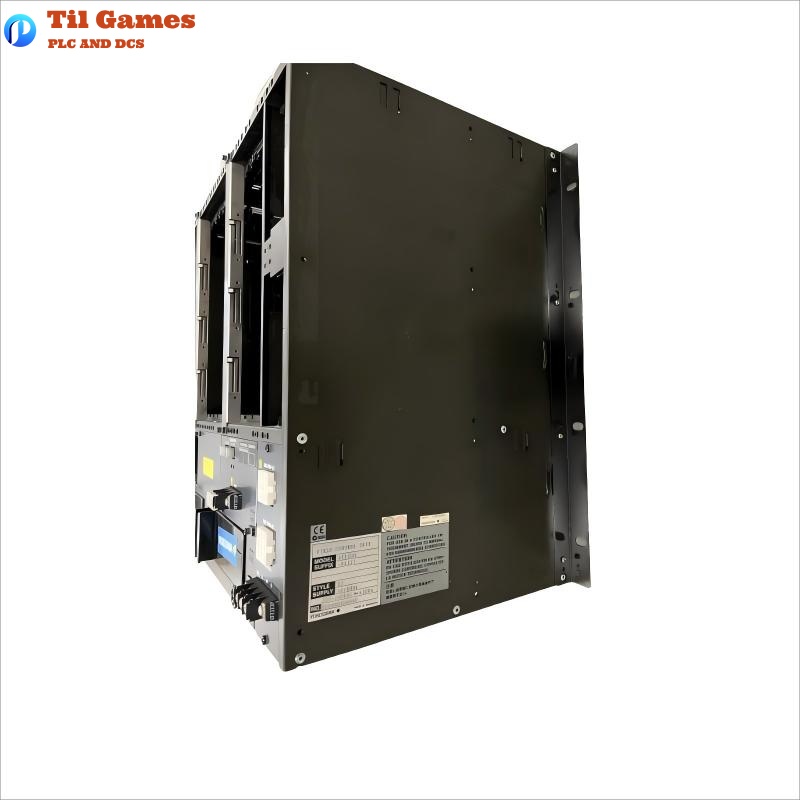

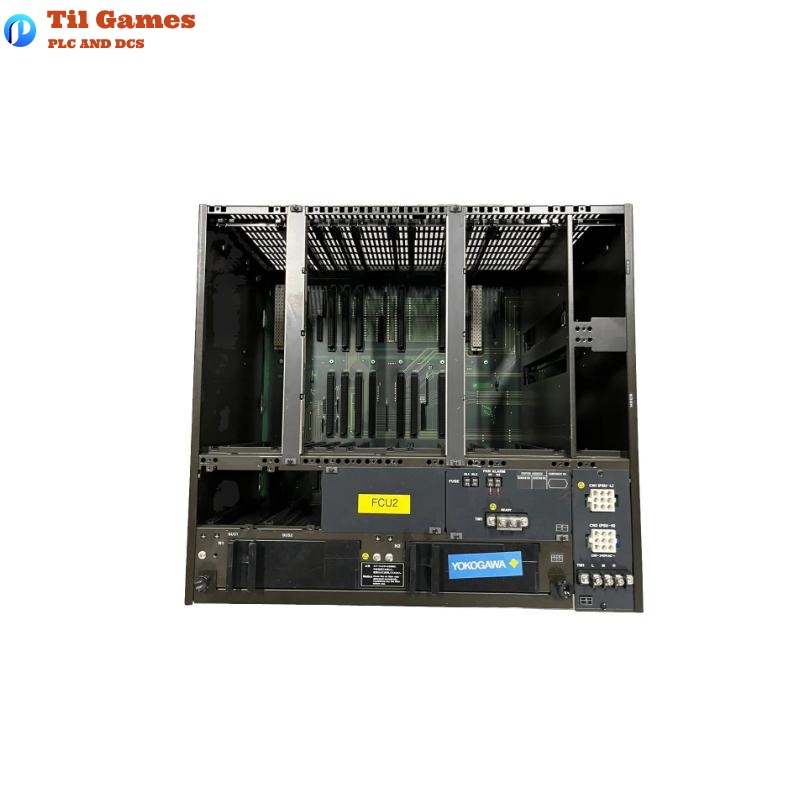

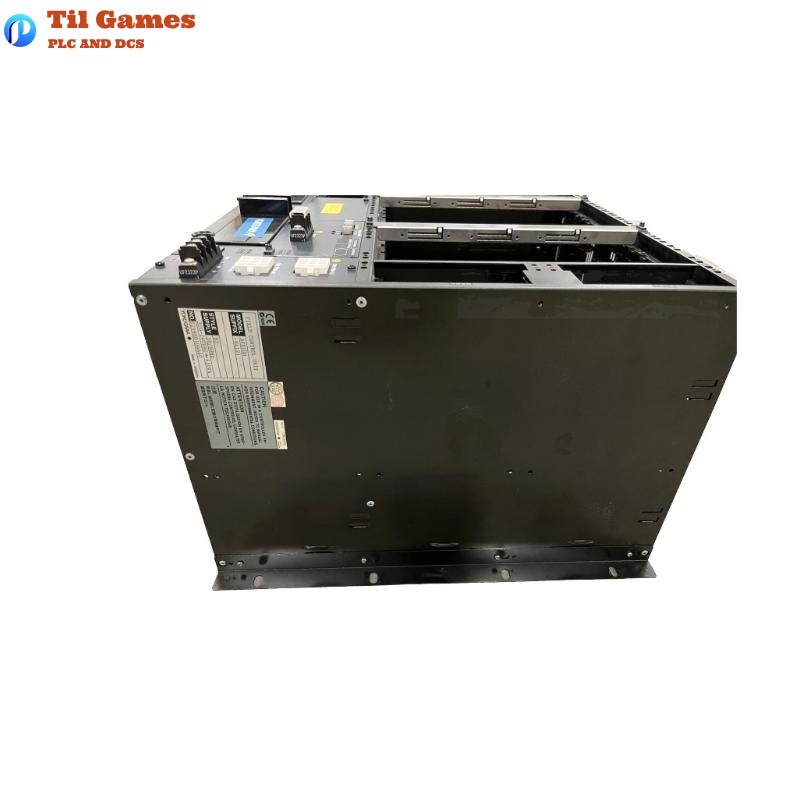

| Product Model | AFS40S |
| System | Yokogawa CENTUM CS 3000 |
| Type | Standard Field Control Unit (FIO, with cabinet) |
| Main Memory | 16 MB |
| Communication Interface | ESB/ER Bus (for FIO connection) |
| Mounting Type | Cabinet-mounted |
| Dimensions | 125.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Humidity | 10 to 90% RH (no condensation) |
| Power Supply Options | 24 VDC / 100–120 VAC / 220–240 VAC |
| Transmission Bus | V net (token-bus), ESB/ER for I/O |
| Max Number of Node Units | 10 local / 15 total (local + remote) |
| Redundancy Support | Supported (Duplex model available: AFS40D) |
| Certifications | CE, CSA, FM, Type n, Type i (intrinsic safety) |
| EMC Compliance | EN 61000-6-2, EN 55011 Class A |
FAQ
FAQ
Q1: What is the primary application of the AFS40S?
A1: The AFS40S is mainly used in industrial process automation such as petrochemical, power, and pharmaceutical sectors for real-time field control and data communication.
Q2: Does the AFS40S support redundancy?
A2: Yes, the AFS40S supports redundancy. A duplex version, the AFS40D, is available for high-availability applications.
Q3: How does the AFS40S connect to I/O modules?
A3: The AFS40S connects to both local and remote I/O nodes via the ESB and ER buses, providing high-speed communication.
Q4: What is the installation method for the AFS40S?
A4: The AFS40S is a cabinet-mounted unit, designed for standardized industrial field installations.
Q5: Does it support FOUNDATION Fieldbus?
A5: Yes, the AFS40S supports FOUNDATION Fieldbus through dedicated communication modules for integrating field devices.
Q6: Is the AFS40S certified for hazardous environments?
A6: Yes, it holds certifications such as CE, CSA, FM, and supports explosion-proof standards (Type n and Type i).
Q7: What are the environmental requirements for AFS40S?
A7: It operates in temperatures from 0 to 50°C and humidity levels between 10 to 90% RH without condensation.
Q8: What is the maximum number of I/O nodes supported?
A8: The AFS40S supports up to 10 local nodes and a total of up to 15 combined local and remote I/O nodes.
