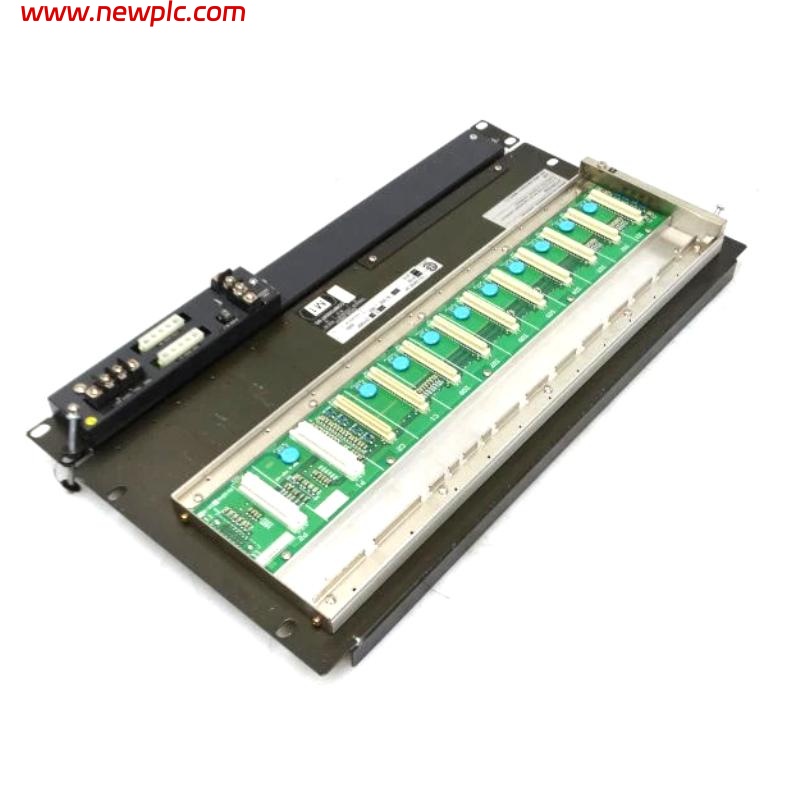

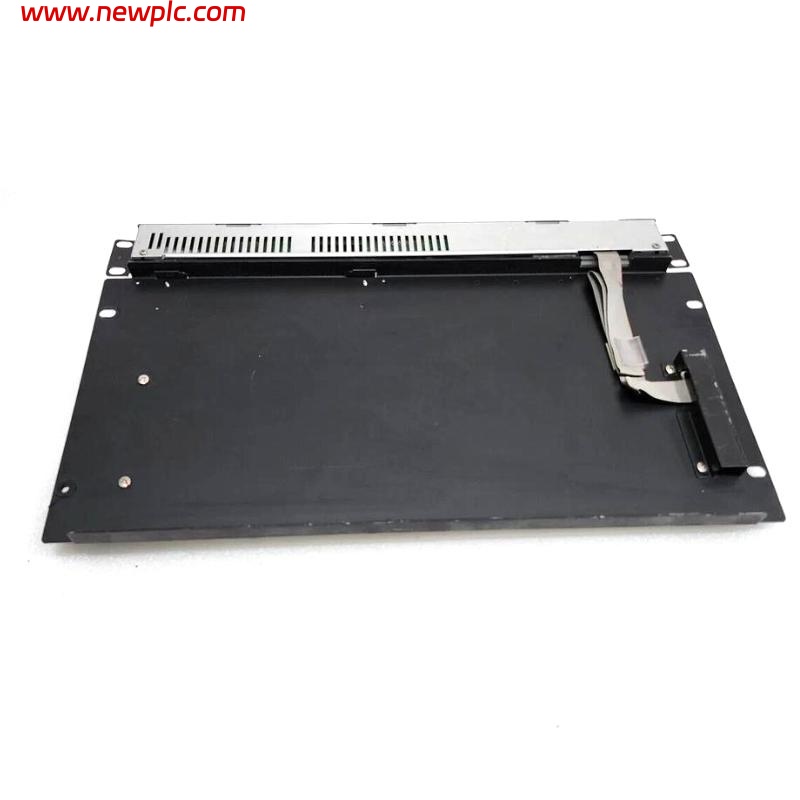

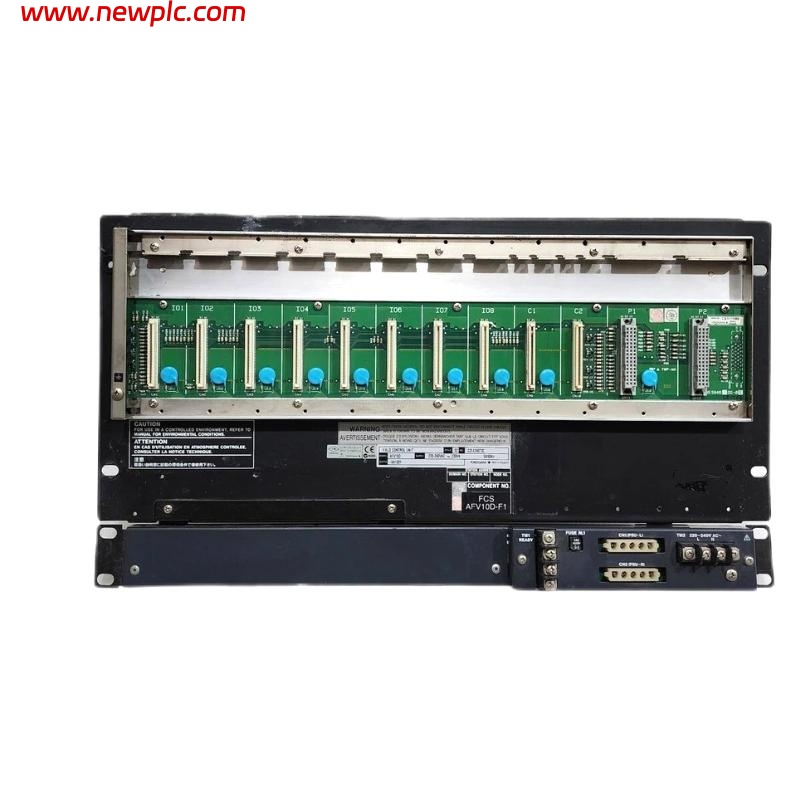

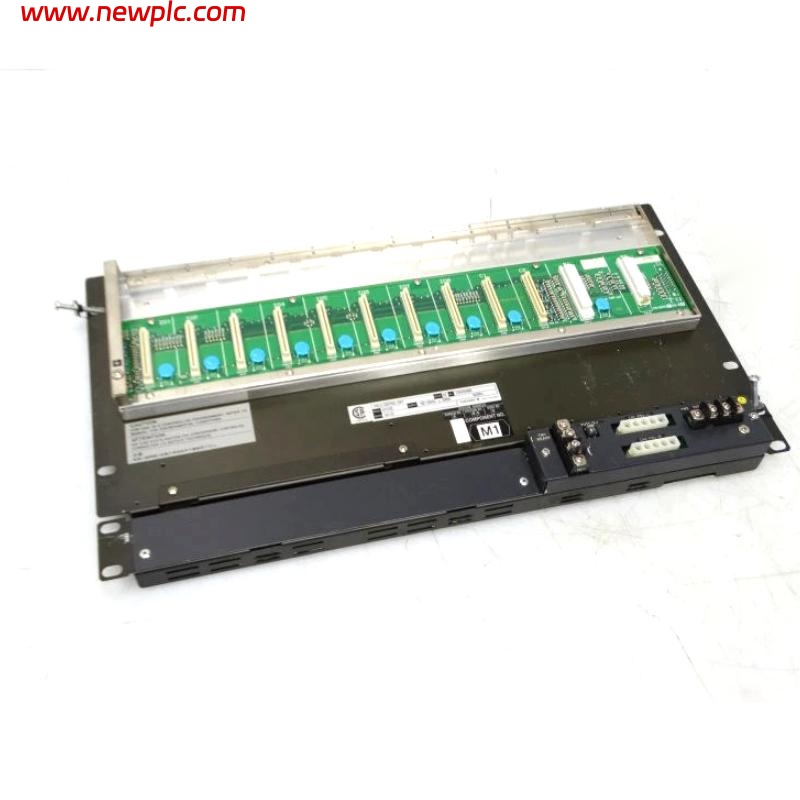

Yokogawa AFV10D-S41151 Duplexed Field Control

FAQ

Q1: What is the primary function of the AFV10D-S41151 in a CENTUM VP system?
A1: It serves as the core duplexed Field Control Unit (FCU), handling process control, redundancy management, and communication with field I/O modules via Vnet/IP.

Q2: How does the duplexed architecture enhance system reliability?
A2: The duplexed design includes redundant CPUs, Vnet/IP interfaces, and power supplies, ensuring continuous operation even in the event of a component failure.

Q3: What is the supported communication standard and its maximum transmission distance?
A3: It uses 1 Gbps full-duplex Ethernet over CAT5e UTP cabling (RJ45), with a maximum cable length of 100 m to a Layer 2 switch.

Q4: How many I/O modules and nodes can be connected to this FCU?
A4: The unit supports up to 8 I/O modules and a maximum of 14 node units per FCU.

Q5: What is the function of the battery-backed memory system?
A5: The 32 MB main memory is protected by a backup battery, retaining data for up to 72 hours during power loss, with a minimum recharge requirement of 48 hours.

Q6: What type of failure indication does the AFV10D-S41151 provide?
A6: It offers status contact outputs with NC and C terminals that open during FCU failure, rated at 30 V DC, 0.3 A max.

Q7: What environmental standard does the unit comply with?
A7: It complies with ISA Standard G3, ensuring durability in environments with corrosive gases.

Q8: How does the AFV10D-S41151 differ from the earlier AFV10D-S41101 model?
A8: The S41151 model incorporates ISA G3 compliance, LFS1500 control functionality, and enhanced reliability features compared to the previous version.

AFV10D AFV10D-S41151 Duplexed Field Control Unit Yokogawa
