Technical Specifications
| Parameter | Details |
|---|---|

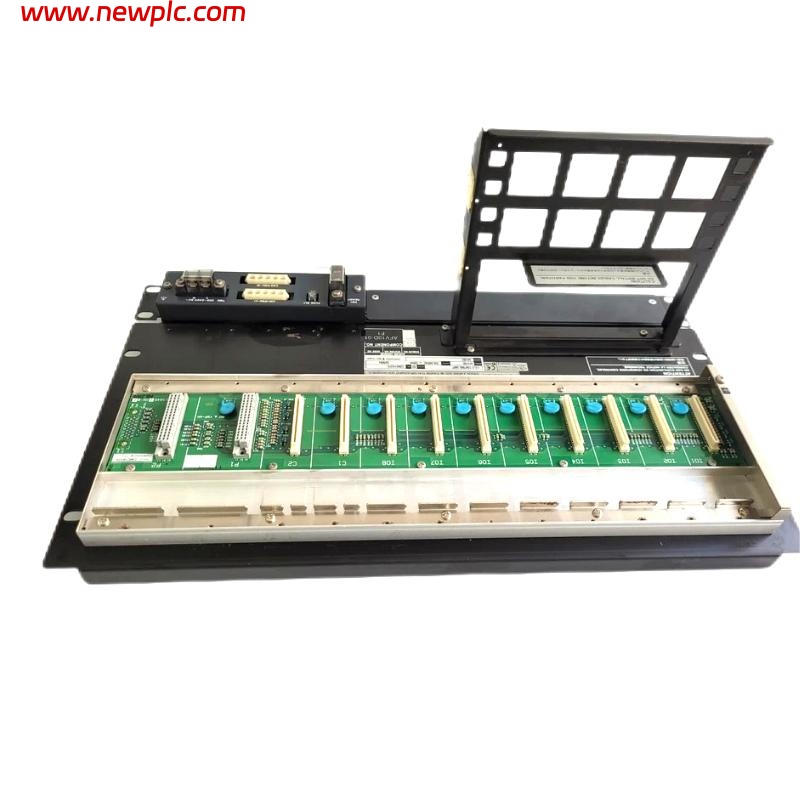

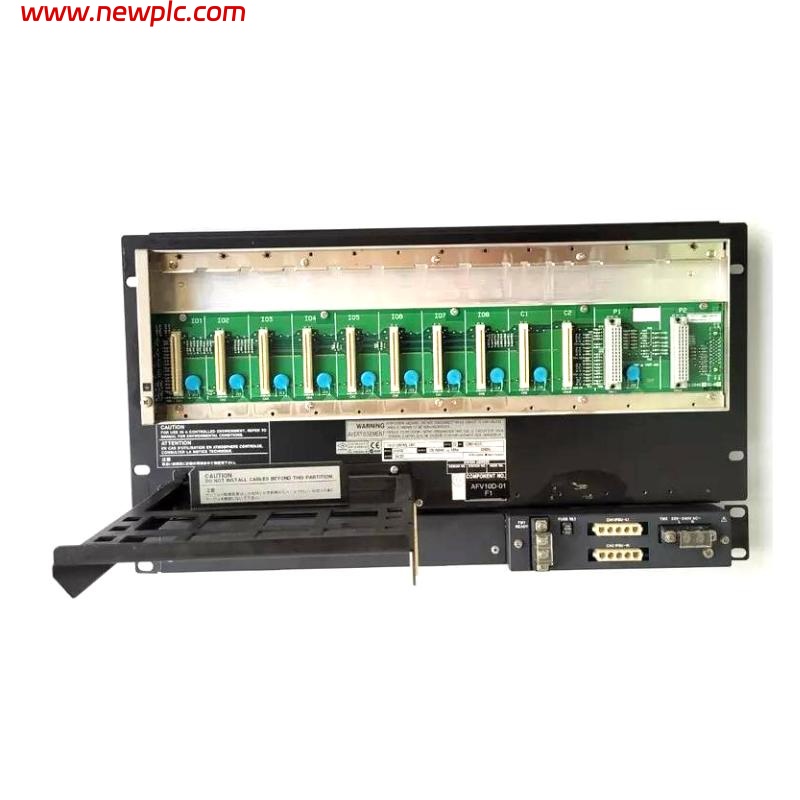

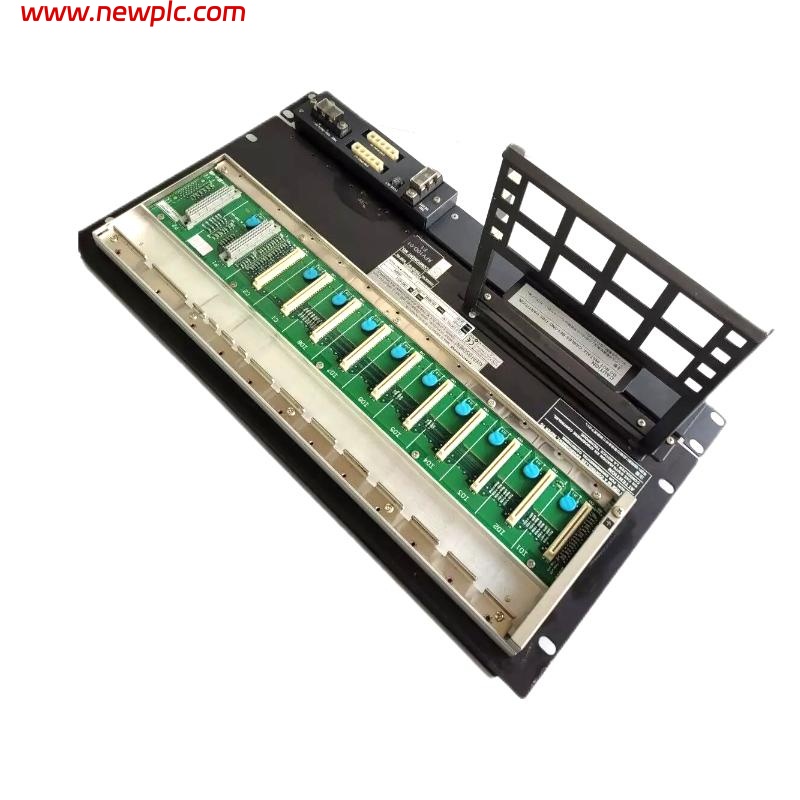

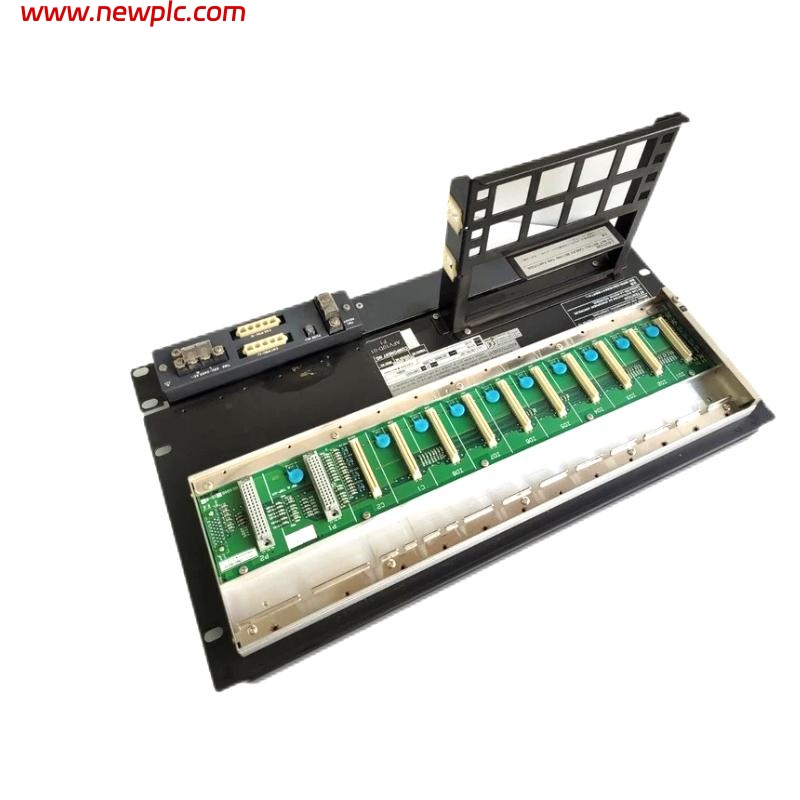

| Model | Yokogawa AFV10D-S41451 Duplexed Field Control Unit |
| Dimensions (W × H × D) | 207 × 265.9 × 482.6 mm |
| Weight | 8 kg |
| Mounting | 19-inch rack, rack-mountable with M5 screws and insulation bush |
| Power Supply | 24 V DC, 5.5 A (other variants support AC 100–120 V / 200 VA or 220–240 V / 230 VA) |
| Network Interface | Dual-redundant Vnet/IP, 1 Gbps full-duplex, CAT5e cable (up to 100 m), RJ-45 |
| CPU | VR5432, 133 MHz |
| RAM | 32 MB with battery backup (72 hours retention, 48 hours recharge) |
| Node & I/O Support | Up to 8 I/O modules, supports up to 14 node units (local or remote) |
| Redundancy | Duplexed system with dual-redundant Vnet/IP and power supply |
| Application Compatibility | Compatible with Yokogawa CENTUM VP system, supports FIO networking |
FAQ
FAQ
Q1: What is the primary advantage of using the AFV10D-S41451 in a process control system?
A1: Its duplexed design ensures high availability and fault tolerance, making it suitable for mission-critical industrial automation applications.
Q2: How does the AFV10D-S41451 handle communication reliability?
A2: It supports dual-redundant Vnet/IP at 1 Gbps, ensuring uninterrupted communication even if one network path fails.
Q3: What is the role of the battery-backed memory in this unit?
A3: The 32 MB RAM is supported by a backup battery that preserves system data for up to 72 hours in case of power loss, with a 48-hour recharge cycle.
Q4: Can this unit be expanded with remote I/O?
A4: Yes, it supports up to 14 node units, including both local and remote configurations via ESB or ER bus couplers.
Q5: How is redundancy implemented in this unit?
A5: Redundancy is provided through duplexed CPU modules, dual-redundant power supplies, and dual Vnet/IP interfaces.
Q6: What are the environmental requirements for installation?
A6: It is designed for standard industrial environments in 19-inch rack enclosures, requiring stable power input and compliance with cooling specifications.
Q7: How does this model differ from the single configuration AFV10S variants?
A7: The AFV10D-S41451 provides duplexed redundancy, while AFV10S models are simplex units without redundant hardware.
Q8: What is the typical use case for this control unit in process industries?
A8: It is typically used as a Field Control Station (FCS) within Yokogawa CENTUM VP systems, managing I/O modules and ensuring stable, redundant control in refineries, power plants, and chemical facilities.
