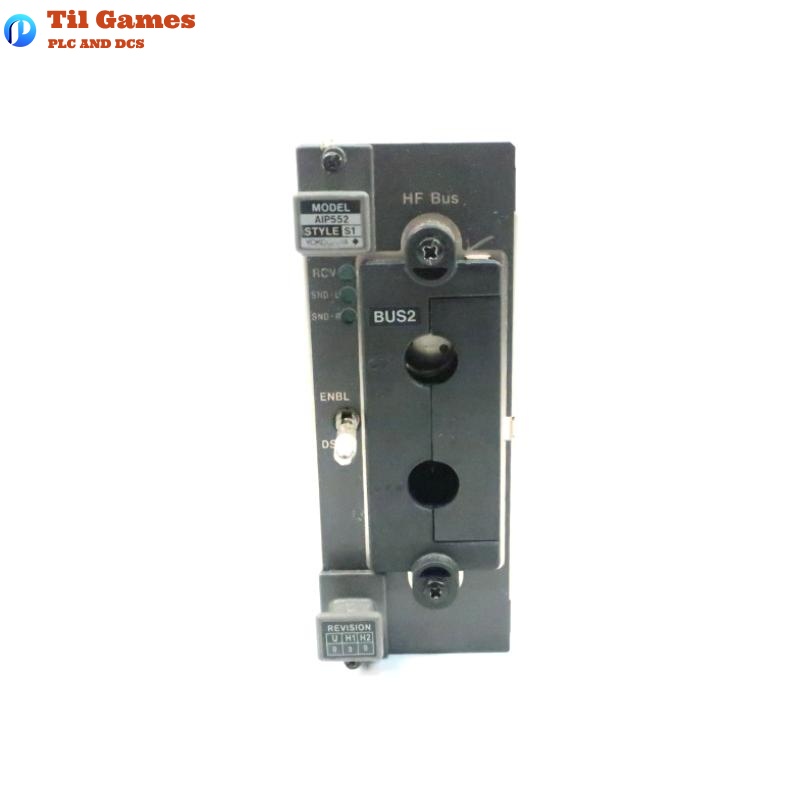

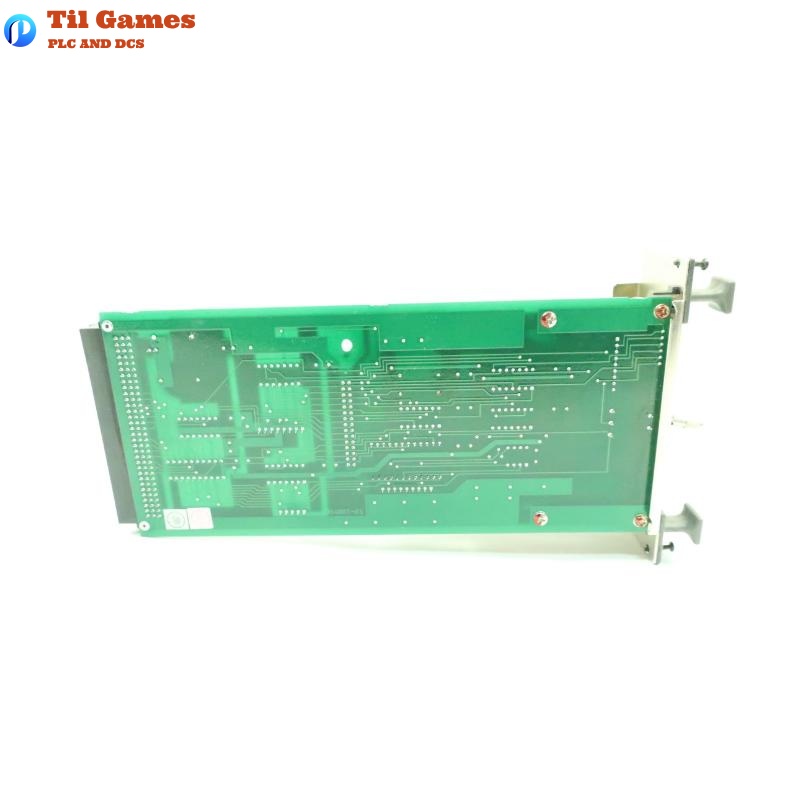

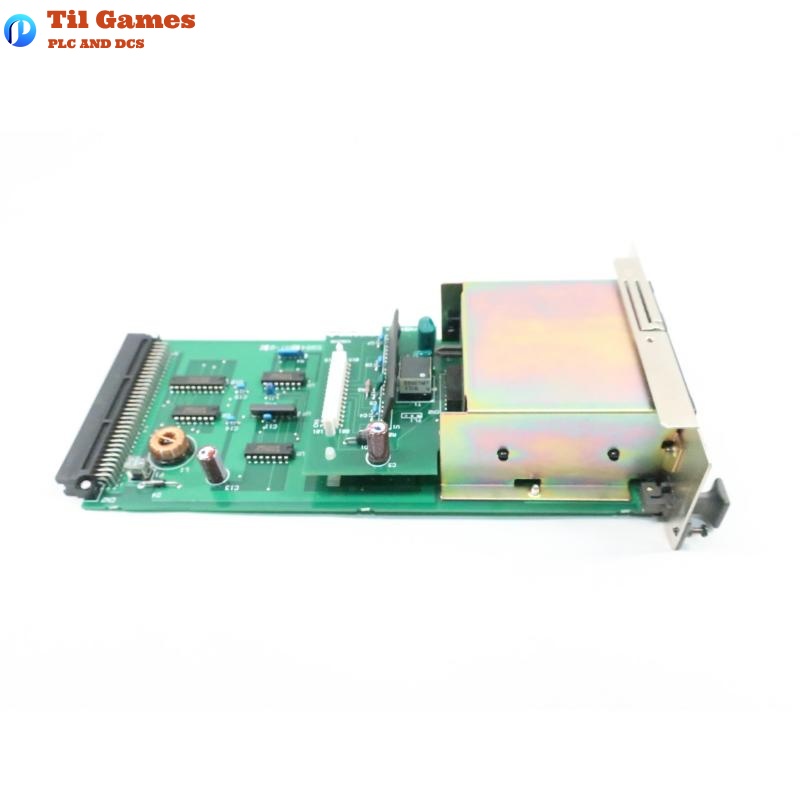

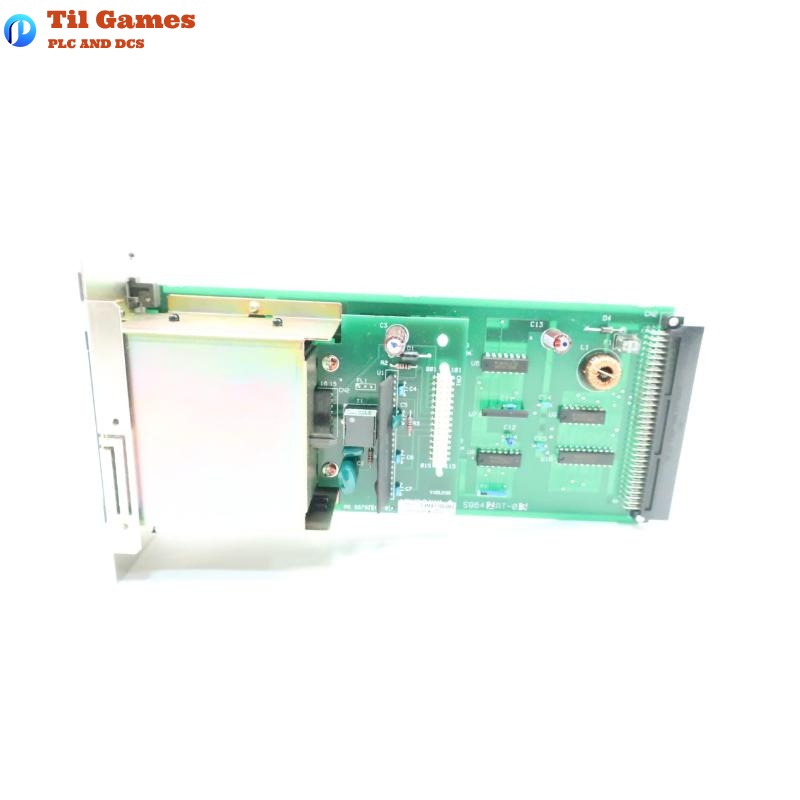

Technical Specifications – Yokogawa AIP552-S1 HF Bus Converter Module
| Parameter | Description |
|---|---|
| Model Number | AIP552-S1 |
| Product Name | HF Bus Converter Module |
| Function | Converts field device signals into system format |
| Interface Type | HF Bus |
| Power Supply | 24 V DC (range: 20.4 – 28.8 V DC) |
| Power Consumption | Max 1.2 W |
| Operating Temp. | 0°C to 55°C |
| Storage Temp. | -20°C to 70°C |
| Relative Humidity | 5% – 95% RH (non-condensing) |
| Mounting Type | DIN rail mounting |
| Enclosure Material | Polycarbonate (PC) |
| Protection Rating | IP20 |
| Dimensions (W×H×D) | 35 x 130 x 100 mm |
| Weight | 0.25 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What are the typical applications of the AIP552-S1?
A: It is typically used in process control systems to convert HF bus communication between field instruments and control systems.
Q2: Does this module support hot-swapping?
A: No, the AIP552-S1 does not support hot-swapping. Power must be turned off before replacing.
Q3: What is the maximum power consumption of this module?
A: The maximum power consumption is 1.2 watts.
Q4: What types of field devices are supported?
A: It supports intelligent field instruments using the HF bus communication protocol.
Q5: How is the module installed?
A: It is mounted via a DIN rail, allowing easy installation without tools.
Q6: Does the module provide electrical isolation?
A: Yes, it provides electrical isolation to enhance safety and noise immunity.
Q7: What is the operating temperature range of the AIP552-S1?
A: The operating temperature range is 0°C to 55°C.
Q8: What are the dimensions and weight of the module?
A: The dimensions are 35 x 130 x 100 mm, and the weight is 0.25 kg.
