Technical Specifications
| Parameter Category | Detailed Specification |
|---|---|

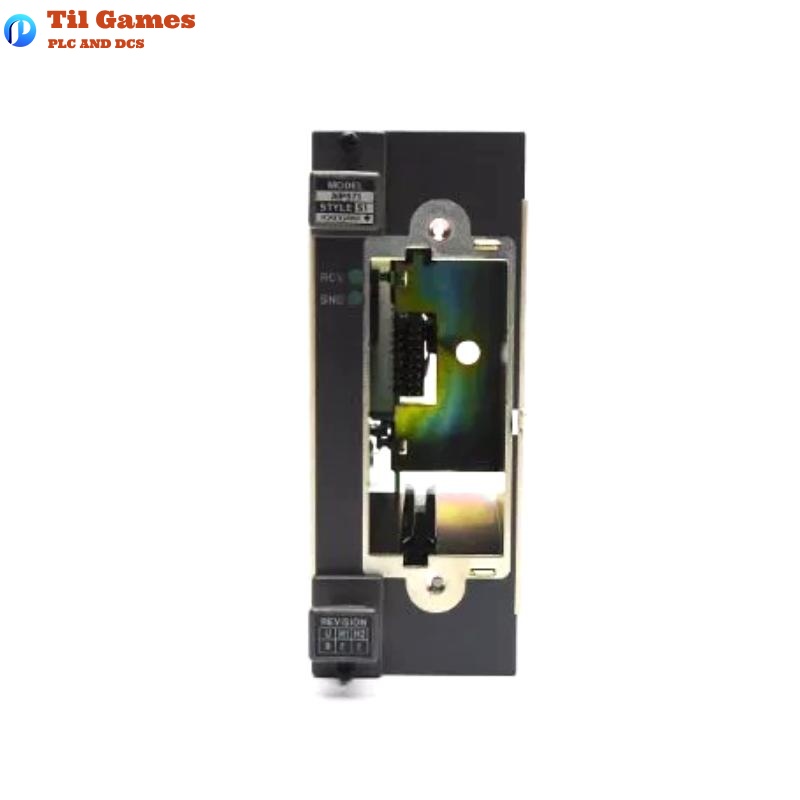

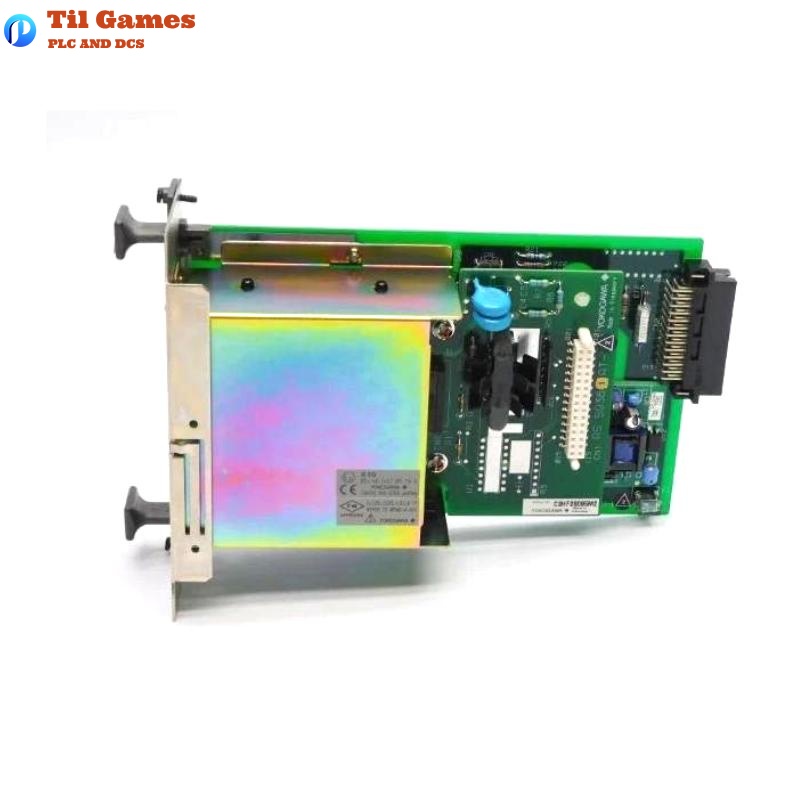

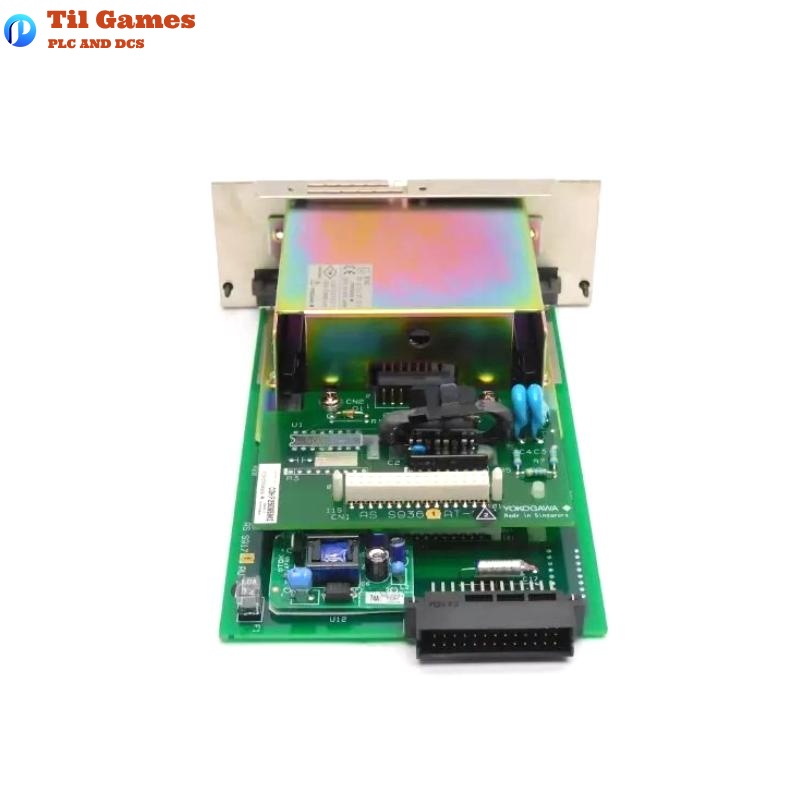

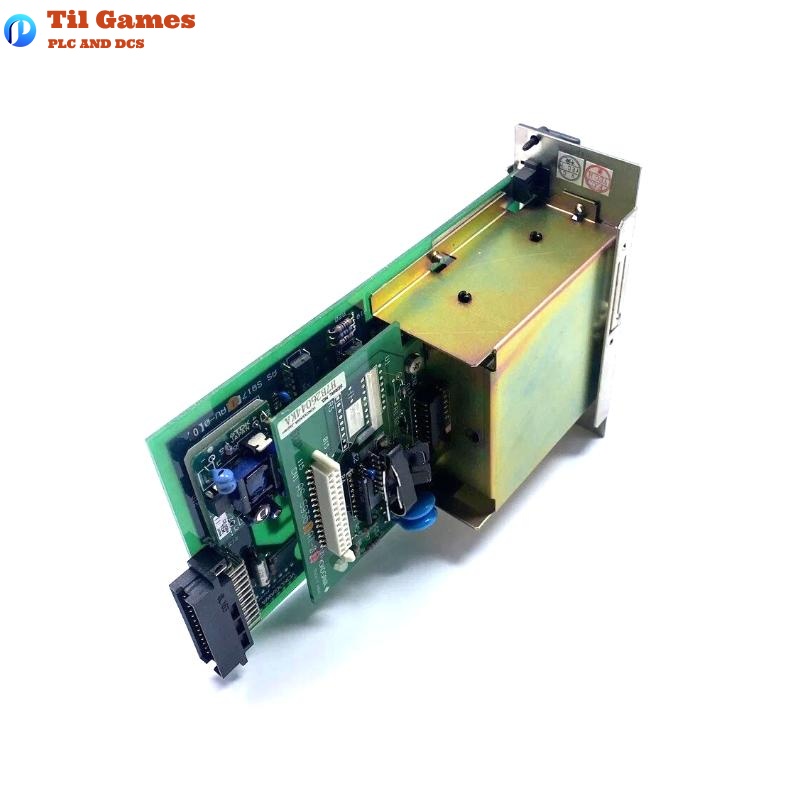

| Model Number | AIP571-S1 |
| Function | Electrical transceiver unit for V net communication |
| Communication Port | Interface for V net network |
| Communication Speed | 10 Mbps |
| Power Supply | Powered through FIO base rack (no external power needed) |
| Redundancy Support | Supports redundant configuration |
| Mounting Method | Installed in the FIO base rack slot |
| Housing Material | Industrial-grade metal housing with EMC protection |
| Dimensions (L×W×H) | 150 x 90 x 50 mm |
| Weight | 1.5 kg |
| Operating Temp. | 0 to 55°C |
| Storage Temp. | -40 to 70°C |
| Humidity Range | 5 to 95% RH (non-condensing) |
| Certifications | Compliant with CE, KC industrial standards |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the AIP571-S1?
A: It is a transceiver unit used to enable communication between the control station and the V net network.
Q2: Does the AIP571-S1 support redundant communication?
A: Yes, it supports redundancy for high-reliability system configurations.
Q3: What is the communication speed of this module?
A: It communicates at 10 Mbps, suitable for high-speed industrial communication.
Q4: How is the AIP571-S1 powered?
A: It is powered via the FIO rack, no external power supply is required.
Q5: Is the module hot-swappable?
A: Hot-swapping is not recommended. It should be replaced with the power off to maintain system stability.
Q6: Are there any special installation requirements?
A: It should be installed in the correct FIO slot with secure cable connections to avoid communication issues.
Q7: Does the unit provide electromagnetic interference protection?
A: Yes, it features a metal enclosure with good EMC protection suitable for industrial environments.
Q8: What systems are compatible with AIP571-S1?
A: It is compatible with Yokogawa systems like CENTUM VP and ProSafe-RS that utilize V net communication.
