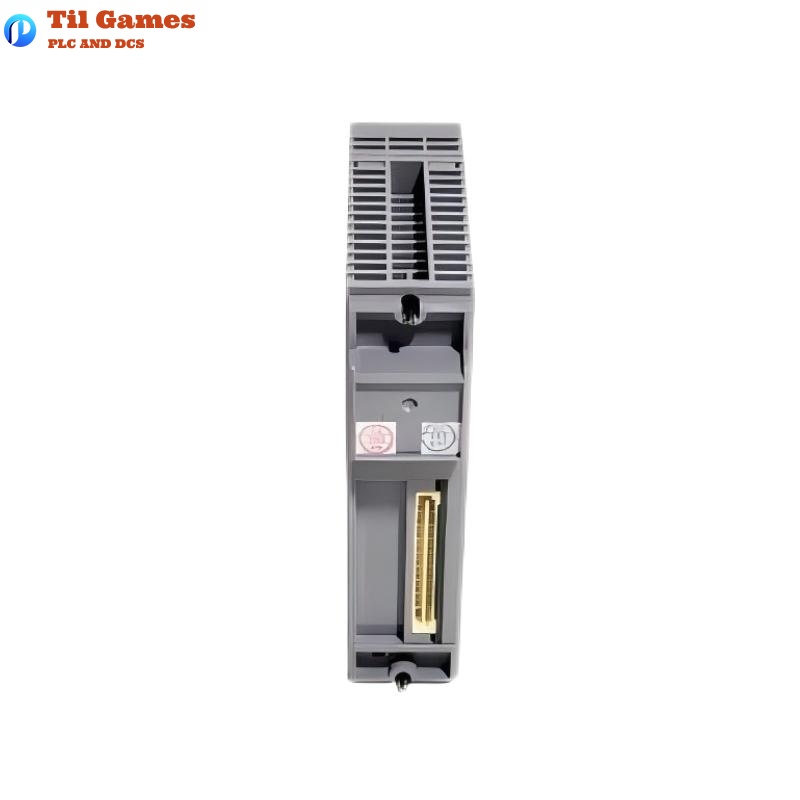

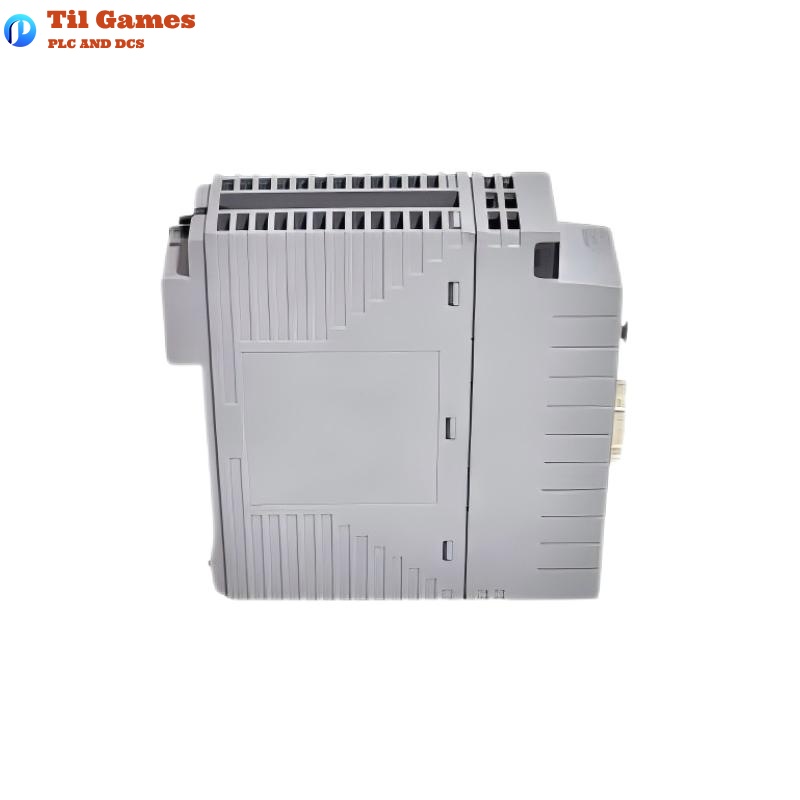

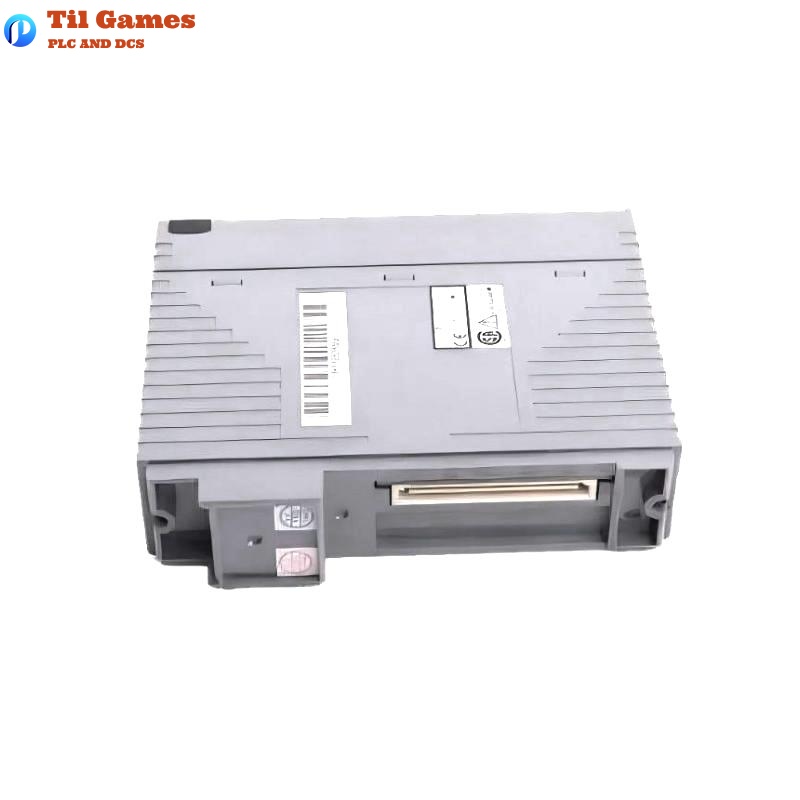

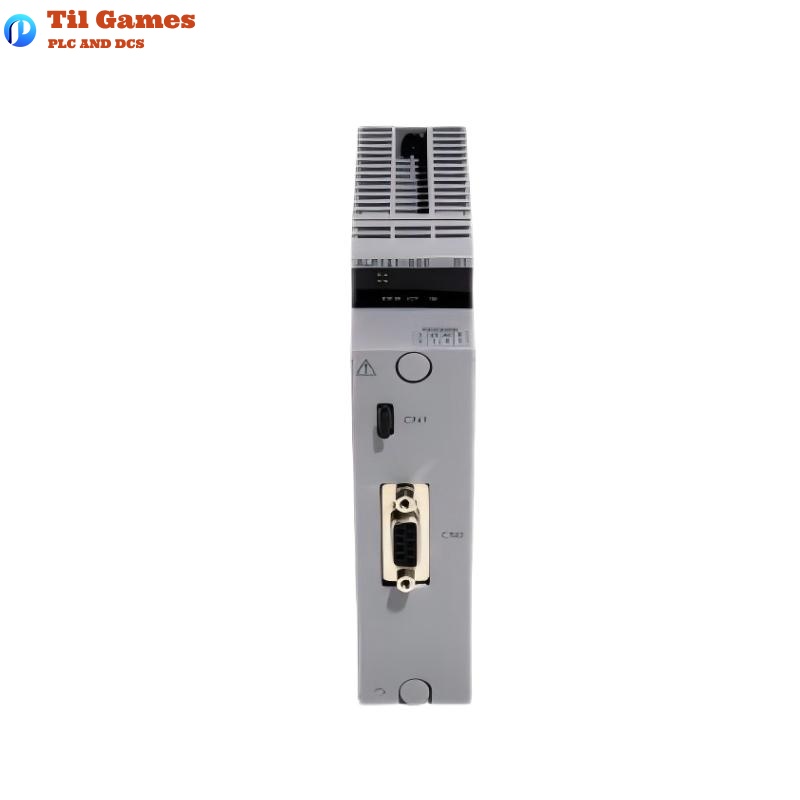

Yokogawa ALP121-S00 PROFIBUS-DP Communication Module

Frequently Asked Questions (FAQ)

Q1: What type of communication interface does the ALP121-S00 use?
A1: It uses a PROFIBUS-DP interface compliant with EIA-RS-485.

Q2: Can the ALP121-S00 be used in a redundant communication setup?
A2: Yes, it supports dual-redundant operation when two units are mounted in adjacent slots.

Q3: What is the maximum number of PROFIBUS slave devices it can support?
A3: It supports up to 31 devices without a repeater, and up to 123 with repeaters.

Q4: Is this module isolated between field and system sides?
A4: Yes, it provides electrical isolation between the field and system.

Q5: Which systems are compatible with this module?
A5: It is compatible with Yokogawa AFV30, AFV40, ANB10, and ANB11 series systems.

Q6: What is the current consumption of the ALP121-S00?
A6: The maximum current consumption is 0.7 A.

Q7: What software is required to configure the ALP121-S00?
A7: It requires CENTUM VP R5.02.00 or later and uses the Standard Builder Function with the PROFIBUS-DP Configurator.

Q8: Can the ALP121-S00 and ALP111 be used together in the same FCS?
A8: No, ALP121 and ALP111 cannot be mounted on the same FCS.

ALP121-S00 PROFIBUS-DP Communication Module Yokogawa
