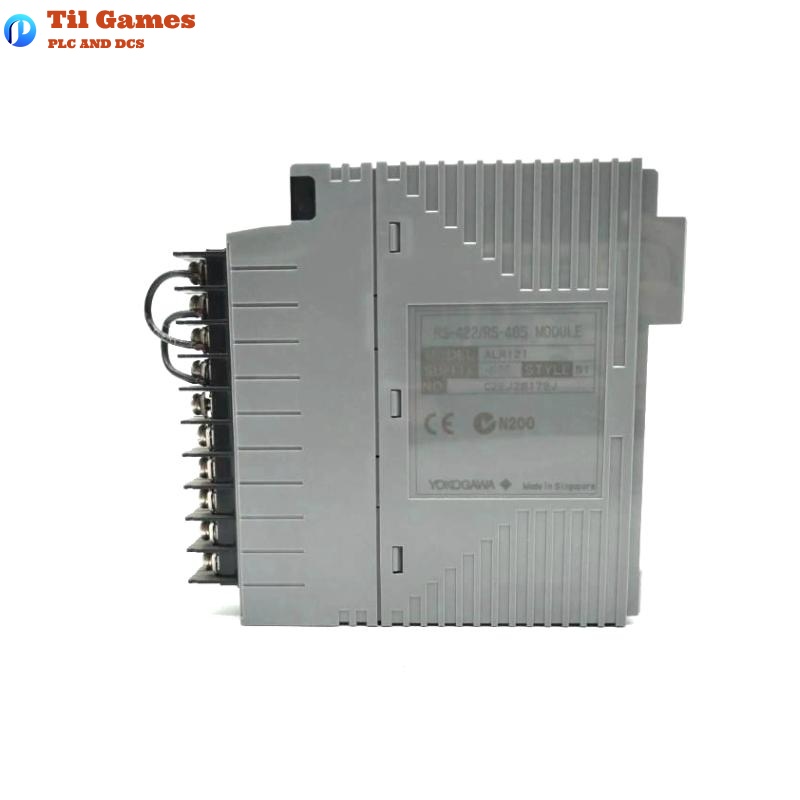

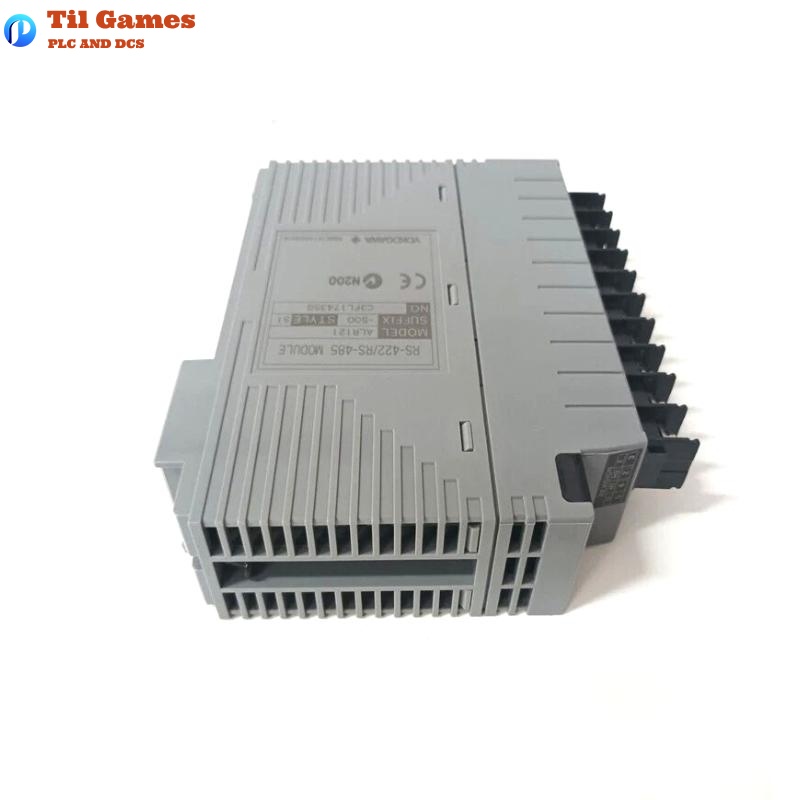

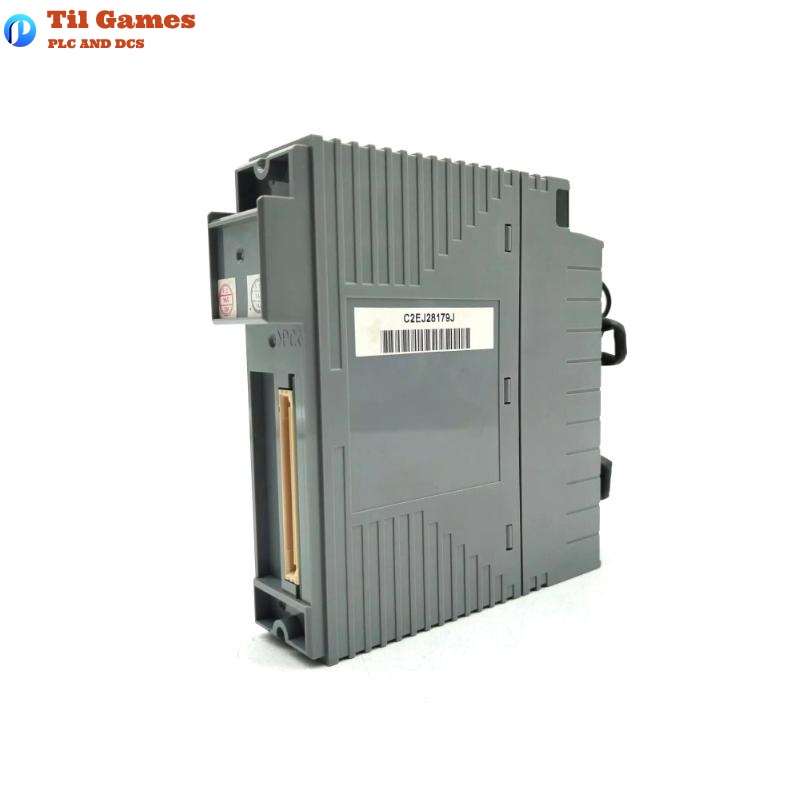

Technical Specifications

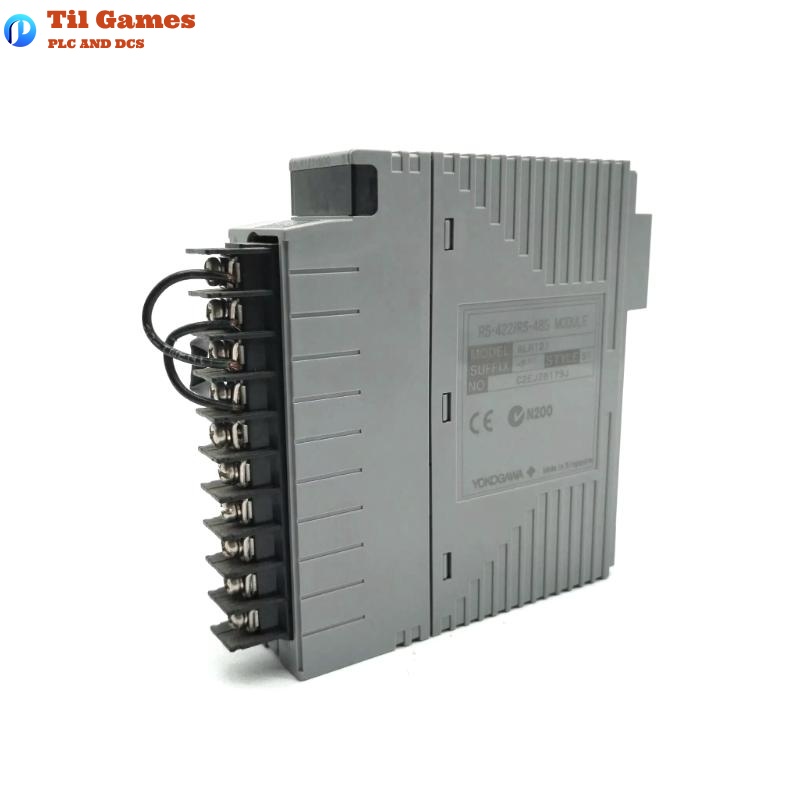

| Item | Description |
|---|---|
| Model | ALR121-SE1 |
| Communication Interface | RS-422/RS-485 |
| Connection Mode | Point-to-point (RS-422), Multipoint (RS-485) |
| Communication Function | Half-duplex |
| Synchronization | Start-stop synchronization |
| Transmission Speed | 1200/2400/4800/9600/19200/38400 bps (depends on system) |
| Transmission Code | ASCII / Binary |
| Character Length | 7 / 8 bits |
| Stop Bit Length | 1 / 2 bits |
| Parity Check | None / Even / Odd |
| Lag Time After Send | 1 ms |
| Max Transmission Length | Up to 1200 m |
| Installation Location | ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, AFV40 |
| Wiring Method | Terminal block clamped with M4 screws (5 poles × 2) |
| I/O Cable | 3-pair shielded cable (e.g., AKB161 or AKB162) |
| Current Consumption | 0.5 A |
| Comm. Definitions | Max. 128 definitions per module |
| I/O Capacity | Max. 1000 words per module |
| Dimensions (W × D × H) | 126.7 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What interface does the ALR121-SE1 module support?
A1: The module supports RS-422 and RS-485 serial communication.
Q2: Is multipoint communication supported?
A2: Yes, multipoint communication is supported via RS-485 mode.
Q3: What transmission speeds are available?
A3: Selectable speeds include 1200, 2400, 4800, 9600, 19200, and 38400 bps, depending on the subsystem.
Q4: Where can this module be installed?
A4: It can be installed on units such as ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, and AFV40.
Q5: Does the ALR121-SE1 support communication redundancy?
A5: Yes, it supports dual-redundant communication configurations for higher system reliability.
Q6: What is the maximum communication distance?
A6: The maximum distance is 1200 meters when using RS-485 mode.
Q7: Are multiple communication protocols supported?
A7: Yes, including FA-M3, Modbus, MELSEC-A, YS, SLC500, and PLC-S protocols.
Q8: How many types of communication functions can be handled in one system?
A8: A maximum of 8 types of communication functions can be handled per FCS.
