Technical Specifications
| Parameter | Description |
|---|---|

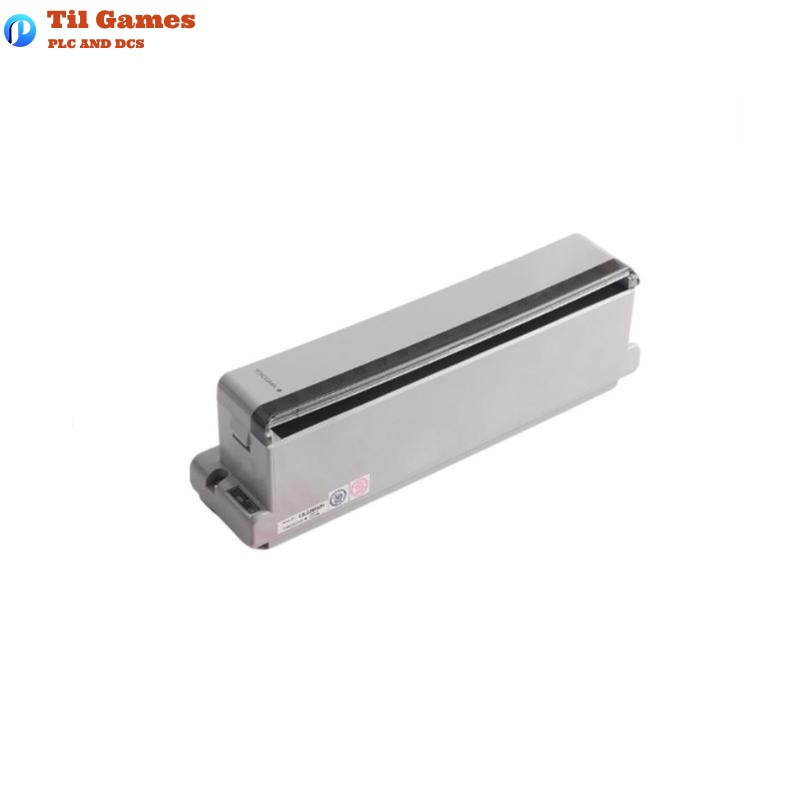

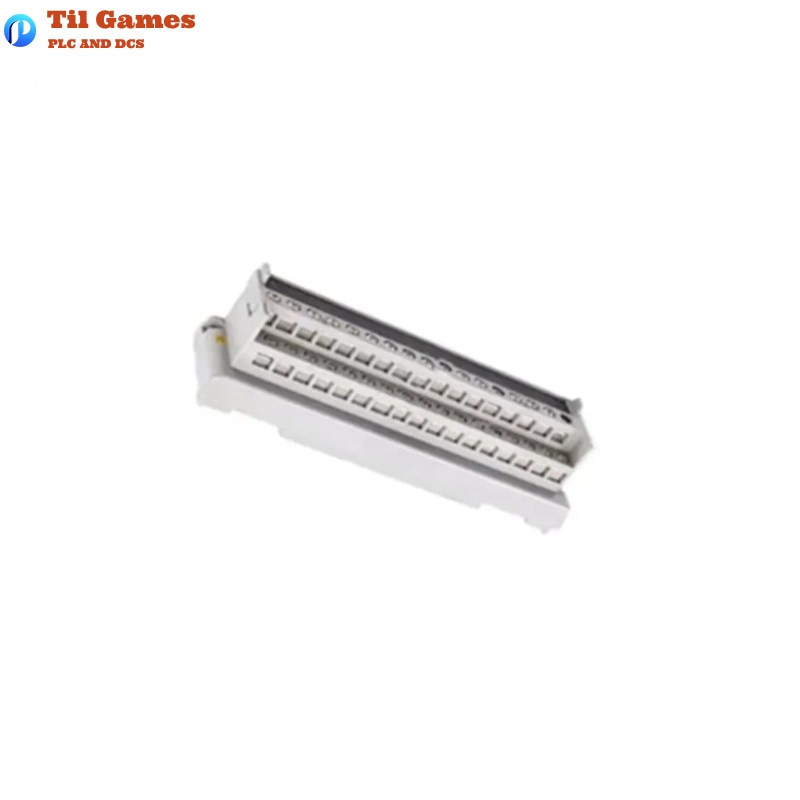

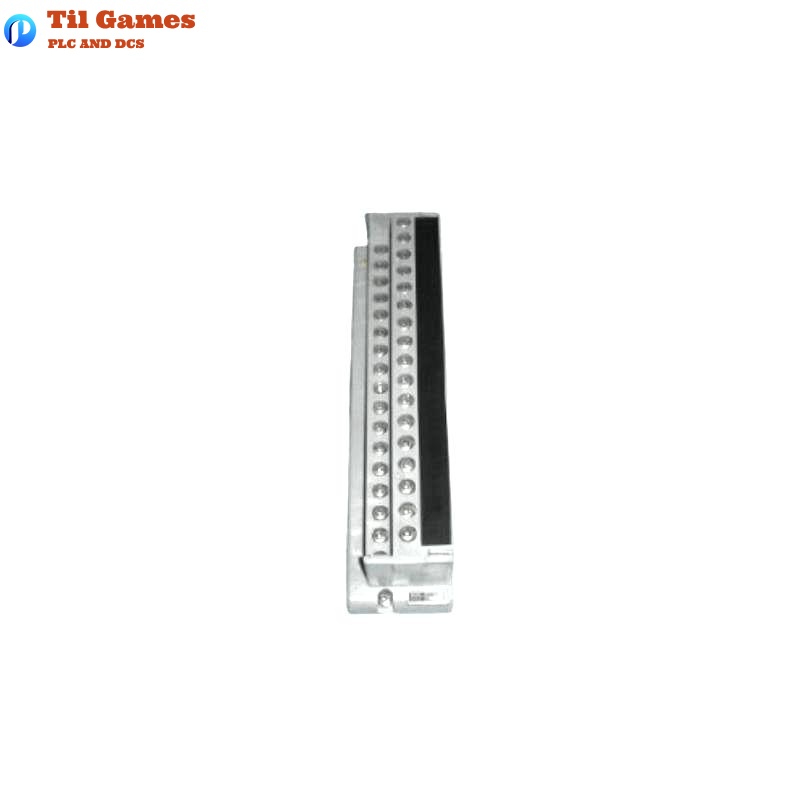

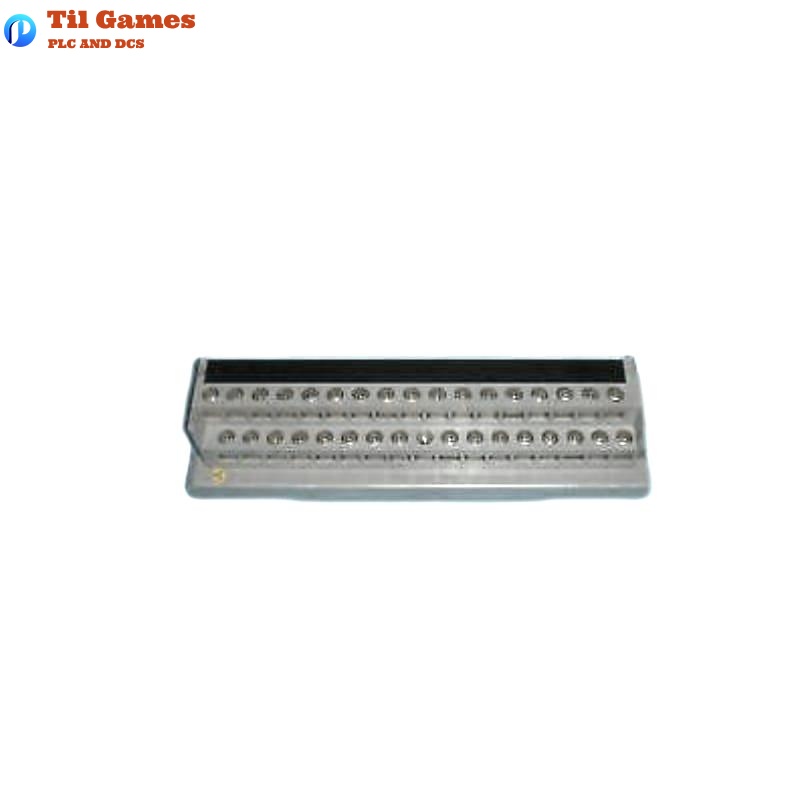

| Model | AMM11T |
| Type | Voltage Input Multiplexer Module (Terminal Type) |
| Input Channels | 16 channels |
| Input Signal Range | -10 V to +10 V |
| Input Impedance | 1 MΩ or more |
| Resolution | 16-bit A/D conversion |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Accuracy | ±0.1% of span |
| Scan Time | Configurable per channel, multiplexed operation |
| Power Supply | Supplied via the I/O nest |
| Mounting Method | Installed in I/O nest (e.g., AMN11) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W × H × D) | 45 × 97 × 103 mm |
| Weight | 0.5 kg |
FAQ
FAQ
Q1: What kind of signal does the AMM11T module accept?
A1: It accepts voltage signals in the range of -10 V to +10 V.
Q2: How many input channels are available on the AMM11T module?
A2: The module provides 16 input channels.
Q3: Is each channel isolated from others?
A3: Yes, each channel is isolated from other channels and ground.
Q4: What type of A/D conversion does the AMM11T support?
A4: It uses a 16-bit A/D converter for high-resolution measurements.
Q5: Can this module be used for thermocouple or RTD inputs?
A5: No, the AMM11T is designed only for voltage signal input. For thermocouples or RTDs, use AMM22T or AMM32T respectively.
Q6: What is the mounting method for this module?
A6: It is mounted into an analog I/O nest, such as AMN11.
Q7: What is the module’s power source?
A7: Power is supplied through the I/O nest where the module is installed.
Q8: Is it suitable for high-speed data acquisition?
A8: It supports multiplexed scanning, which is suitable for general-purpose monitoring but not for high-speed real-time acquisition.
