Technical Specifications
| Parameter | Specification |
|---|---|

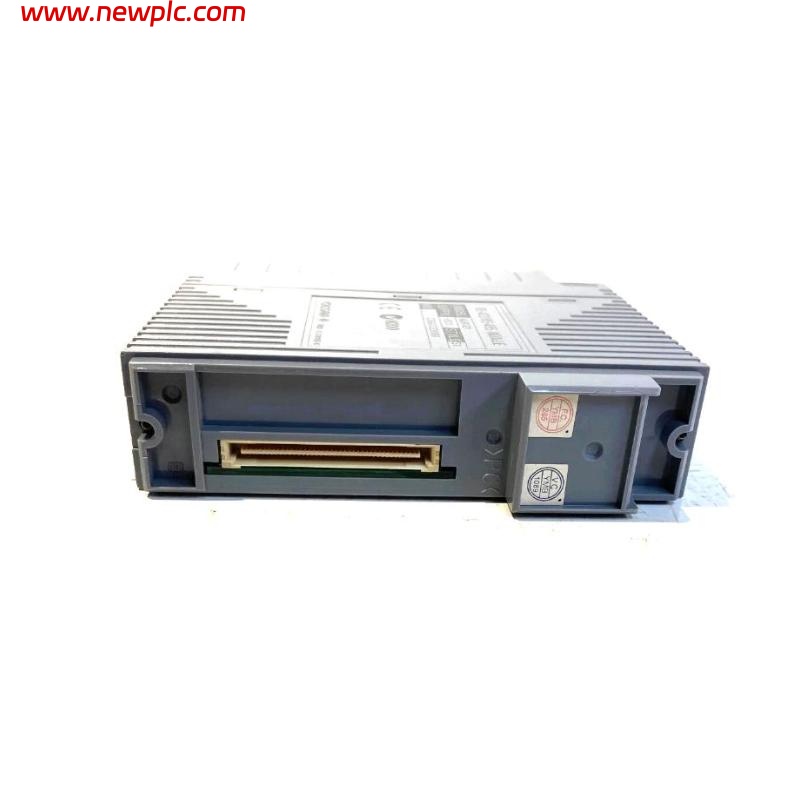

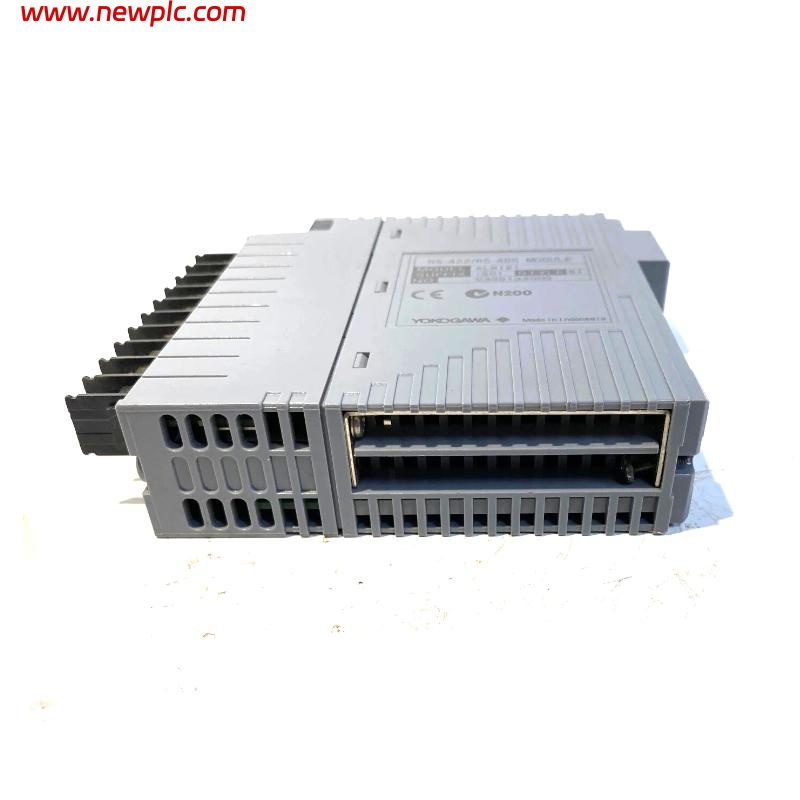

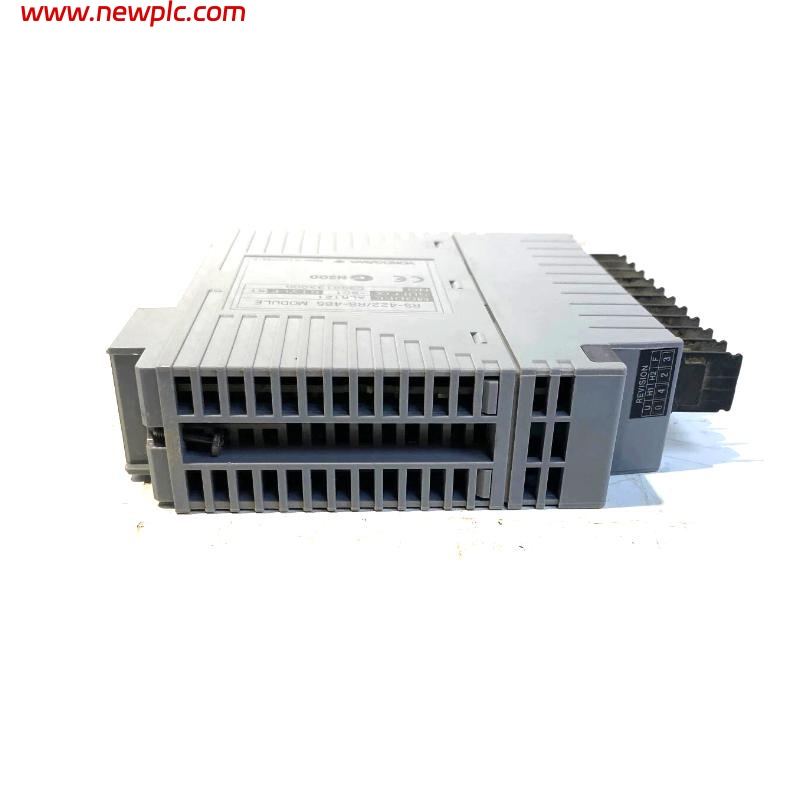

| Model | ALR121 Serial Communication Module |
| Interface | RS-422 / RS-485 |
| Communication Method | Half-duplex, start-stop synchronization |
| Connection Type | Point-to-point (RS-422) / Multipoint (RS-485) |
| Transmission Speed | 1200 / 2400 / 4800 / 9600 / 19200 / 38400 bps |
| Transmission Code | ASCII / Binary |
| Character Length | 7 / 8 bits |
| Stop Bit Length | 1 / 2 bits |
| Parity | None / Even / Odd |
| Transmission Distance | Max. 1200 m (total) |
| Installation | Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, AFV40 |

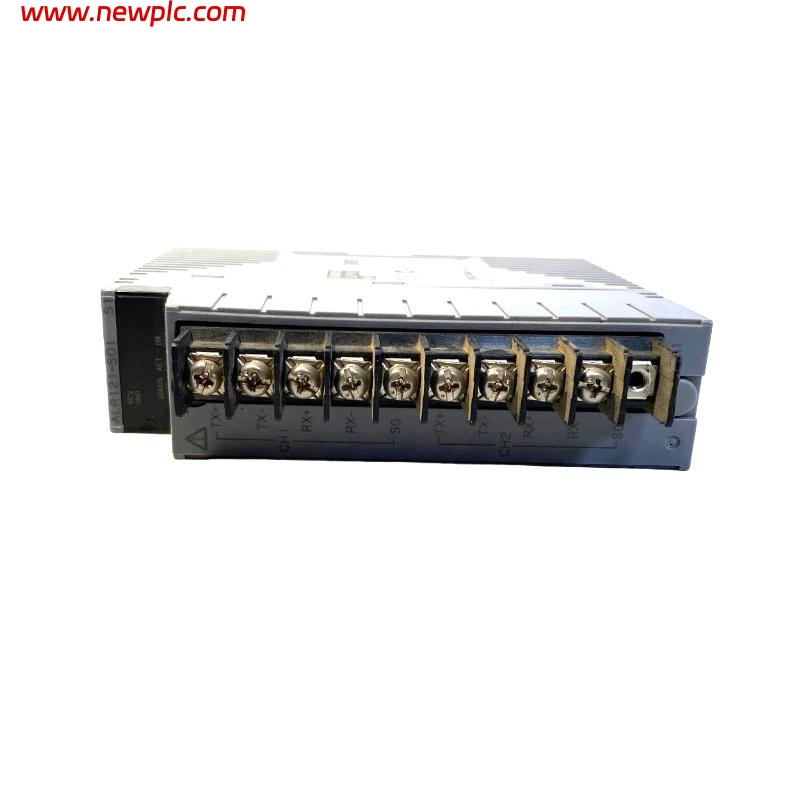

| I/O Wiring | Shielded cable with terminal block M4 screws (5 poles x 2) |
| Power Consumption | 0.5 A |
| Dimensions | 126.7 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What communication interfaces does the ALR121 support?
A1: The ALR121 supports RS-422 and RS-485 interfaces, suitable for point-to-point and multipoint connections.
Q2: What is the maximum communication distance of the ALR121?
A2: When using RS-485, the communication distance can reach up to 1200 meters (total length).
Q3: Does the ALR121 support multiple communication protocols?
A3: Yes, it supports FA-M3, Modbus, MELSEC-A, YS, SLC500, and PLC-5 protocols.
Q4: What transmission speeds are available for the ALR121?
A4: It supports multiple speeds: 1200 / 2400 / 4800 / 9600 / 19200 / 38400 bps.
Q5: Can the ALR121 be configured for dual-redundant communication?
A5: Yes, dual-redundant communication is supported by configuring two identical modules in adjacent slots.
Q6: Are there any installation requirements for the ALR121?
A6: Yes, it must be installed in specified node units, such as ANB10, ANB11, ANR10, AFF50, or AFV series.
Q7: What are the dimensions and weight of the ALR121?
A7: The dimensions are 126.7 × 32.8 × 130 mm, and the weight is approximately 0.3 kg.
Q8: What parity options are available on the ALR121?
A8: The ALR121 offers None, Even, and Odd parity options.
