Technical Specifications
| Parameter | Specification |
|---|---|

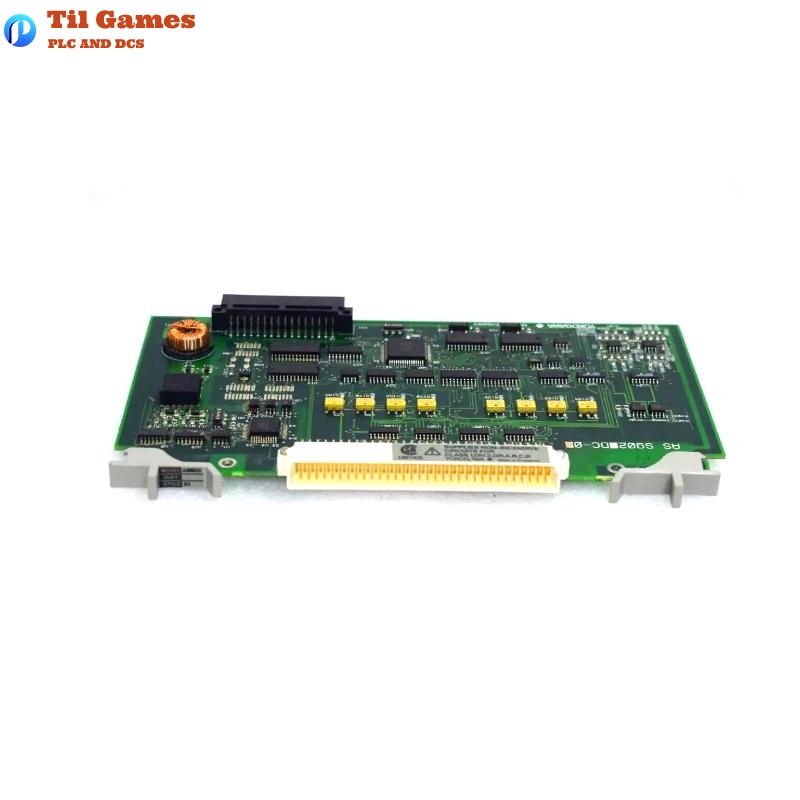

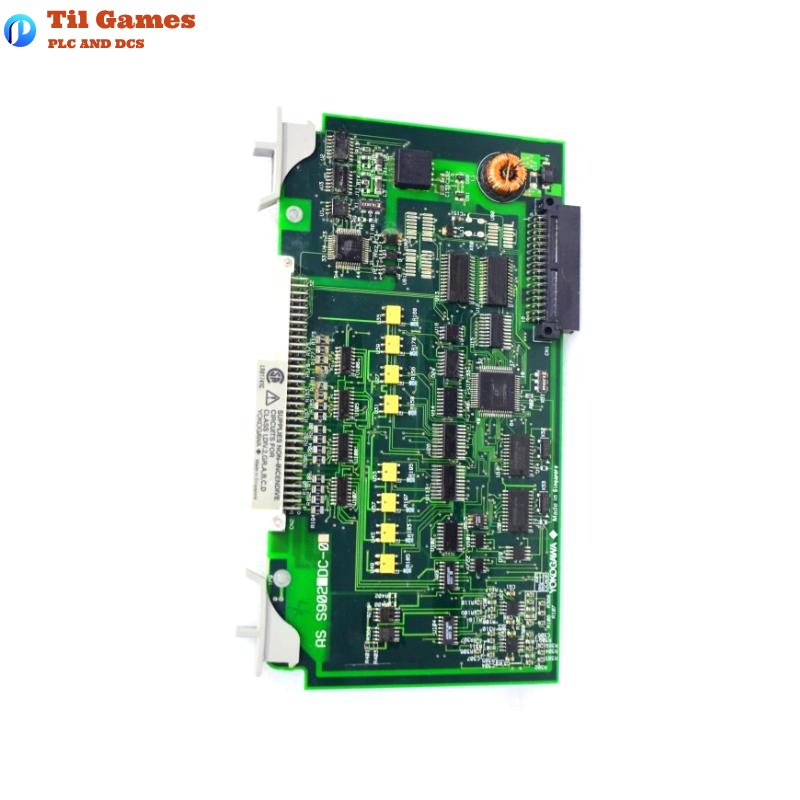

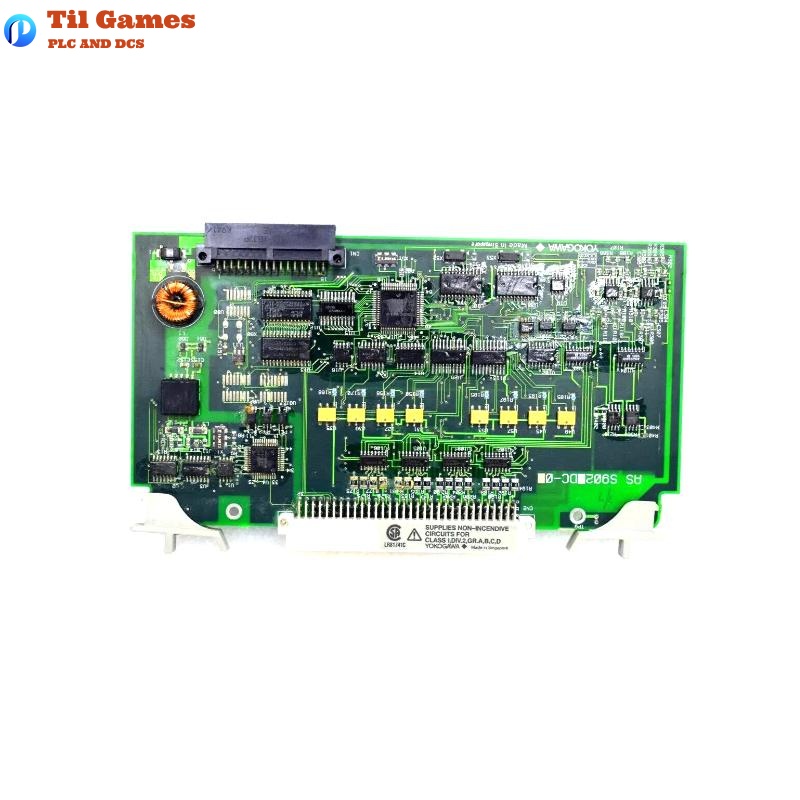

| Model | AMM32J S1C |
| Module Type | Digital Input Multiplexer Module |
| Input Type | RTS (Resistance Temperature Detector) |
| Conformance | IEC751-1995 |
| Input Range | -200 to 600°C (RTS) |
| Input Resistance | 1 MΩ |
| Disconnection Detection Time | Max. 20 seconds |
| Disconnection Detection Current | 0.1 µA |
| Input Accuracy (RTS) | ±0.15 Ω |
| Ambient Temperature Effect | ±0.3 Ω per 10 °C change |
| RJC Accuracy | ±1 °C |
| Allowable Wiring Resistance | 150 Ω (per wire) |
| Measuring Current | 1 mA |
| Signal Insulation | Isolated between system and field |
| Data Update Period | 1 second |
| Current Consumption | Max. 500 mA @ 5.0 V DC |
| Installation Method | Mounted on I/O Module Nest |
| Connection Method | Terminal with M4 screws |
| Dimensions | 125 x 130 x 248 mm |
| Weight | 2 kg |
FAQ
FAQ
Q1: What type of input does the AMM32J S1C module support?
A1: The module supports RTS (Resistance Temperature Detector) input types compliant with IEC751-1995.
Q2: What is the input accuracy for RTS signals?
A2: The accuracy for RTS inputs is ±0.15 Ω, and the impact of ambient temperature variation is ±0.3 Ω per 10 °C.
Q3: Does the module have disconnection detection?
A3: Yes, the AMM32J S1C includes a disconnection detection function with a maximum detection time of 20 seconds and 0.1 µA detection current.
Q4: Are the input signals isolated from the system?
A4: Yes, input signals are electrically isolated from the system with a withstand voltage of 1500 V AC/min.
Q5: Are signal settings configurable via software?
A5: Yes, signal types and their input ranges can be configured through software.
Q6: What is the power consumption of the module?
A6: The module consumes up to 500 mA at 5.0 V DC.
Q7: How is the module installed and wired?
A7: It is installed in an I/O module nest and connected using M4 terminal screws.
Q8: What are the typical applications of this module?
A8: It is used in precision temperature monitoring and data acquisition in process automation systems.
