Technical Specifications
| Items | Specifications |
|---|---|

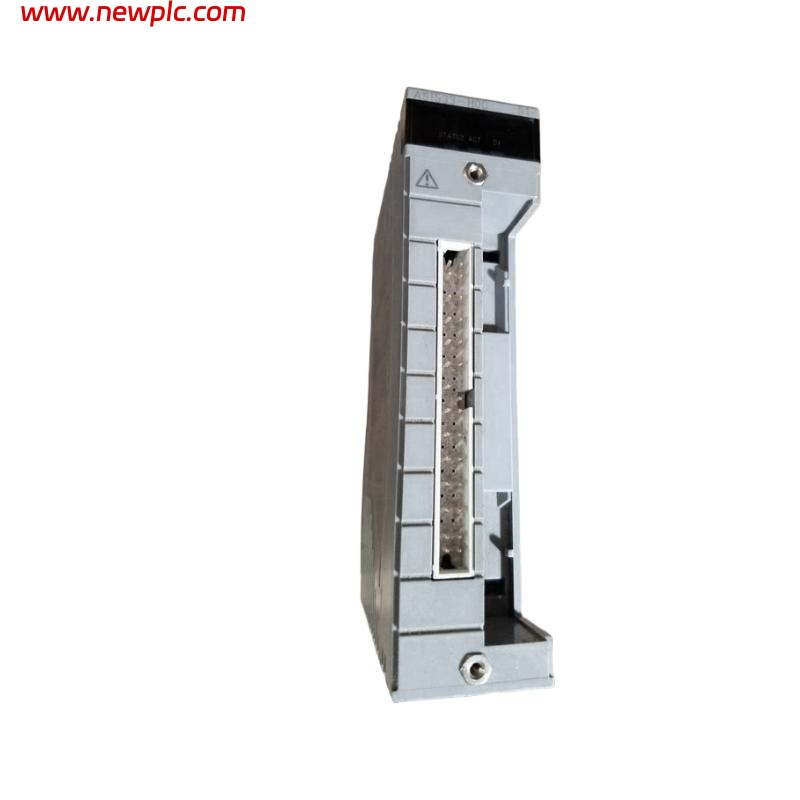

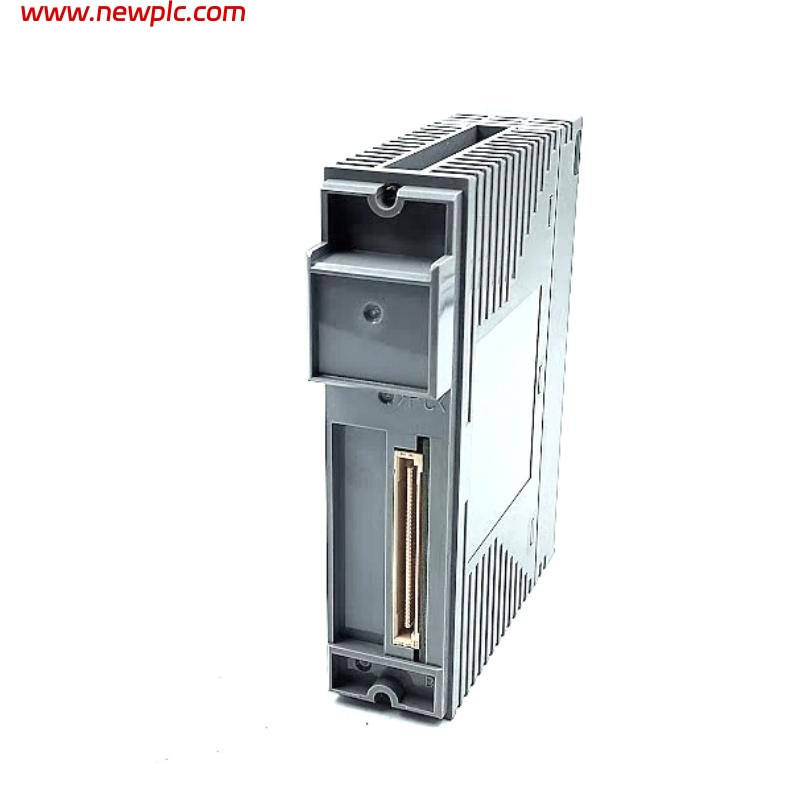

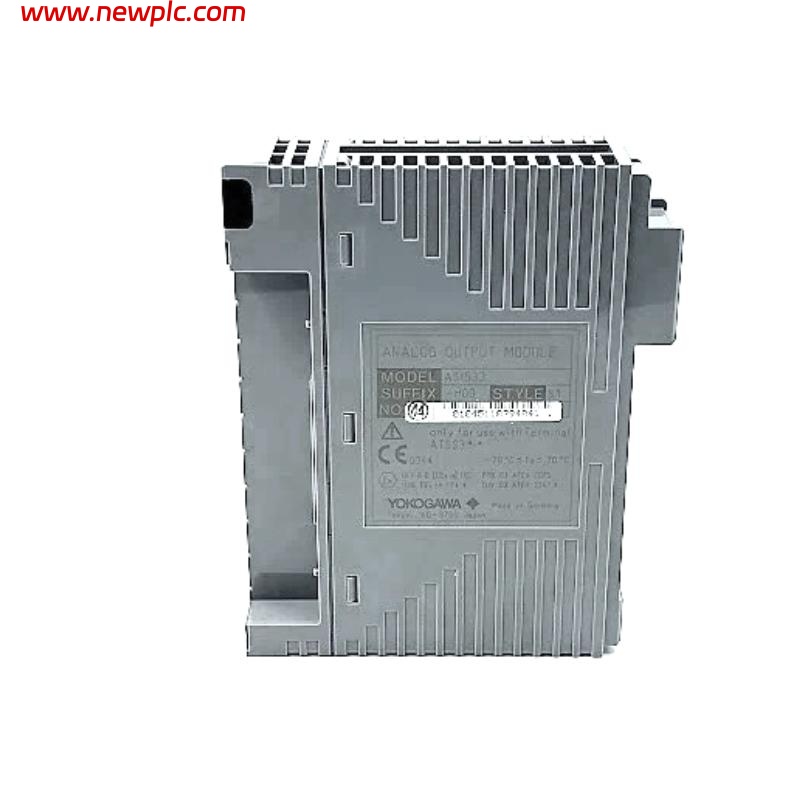

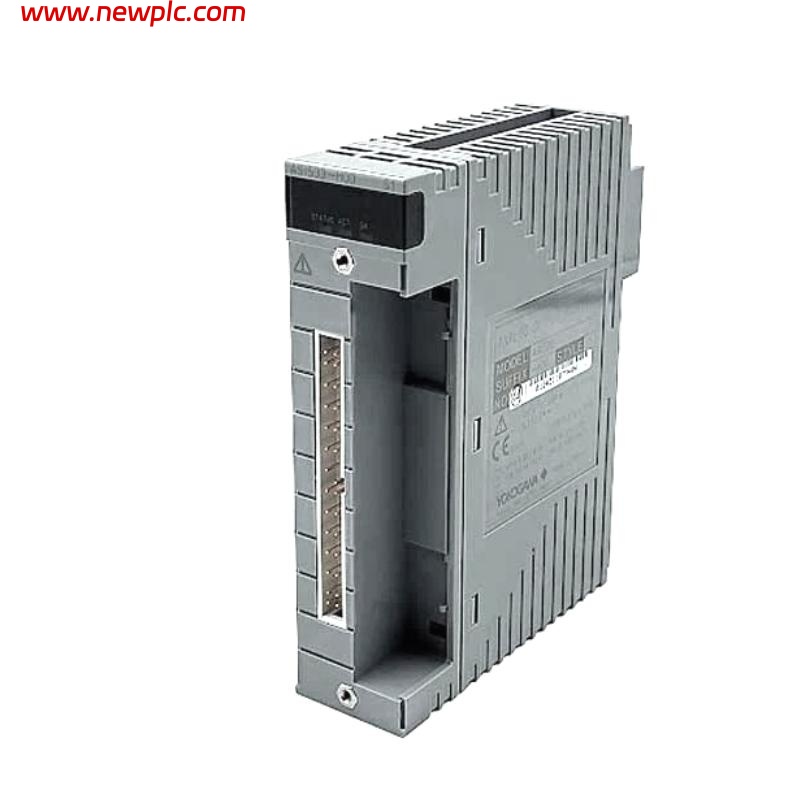

| Model | ASI533-S00/SS3S0 |
| Number of output channels | 8, isolated |
| Output signal | 4 to 20 mA |
| Maximum output current | 23 mA |
| Withstanding voltage | 1500 V AC |
| Allowable load resistance | 0 to 750 Ω at 20 mA, 0 to 600 Ω at 23 mA |
| Accuracy | ±48 µA |
| Step response time | 100 ms |
| Data update period | 10 ms |
| Drift due to ambient temperature change | ±16 µA/10 °C |
| Maximum current consumption | 150 mA (5 V DC), 350 mA (24 V DC) |
| Weight | 0.3 kg |
| Dimensions | 107.5 × 130 × 32.8 mm |
| External connection | Pressure clamp terminal (ATSS3S-0) |
| HART communication | Available |
| Barrier type | Isolated interface |
FAQ
FAQ
-
Q1: What is the maximum load resistance for this analog output module?
A1: The module supports 0 to 750 Ω at 20 mA output, and 0 to 600 Ω at 23 mA output. -
Q2: How fast is the step response of the ASI533 module?
A2: The step response time is 100 ms, ensuring rapid adjustment of output current. -
Q3: Can this module communicate with HART-enabled devices?
A3: Yes, the ASI533-H variant supports HART communication, allowing reading and writing of HART variables. -
Q4: What is the operating temperature range of this module?
A4: It operates reliably between -20 to 70 °C. -
Q5: How is the module connected externally?
A5: It uses a pressure clamp terminal (ATSS3S-0) for secure analog output connections. -
Q6: What type of isolation does the module provide?
A6: The module features an isolated barrier interface, providing galvanic isolation between channels. -
Q7: What is the expected drift due to temperature changes?
A7: The drift is ±16 µA per 10 °C ambient temperature change. -
Q8: What are the dimensions and weight of the ASI533 module?
A8: The module measures 107.5 × 130 × 32.8 mm and weighs 0.3 kg.
