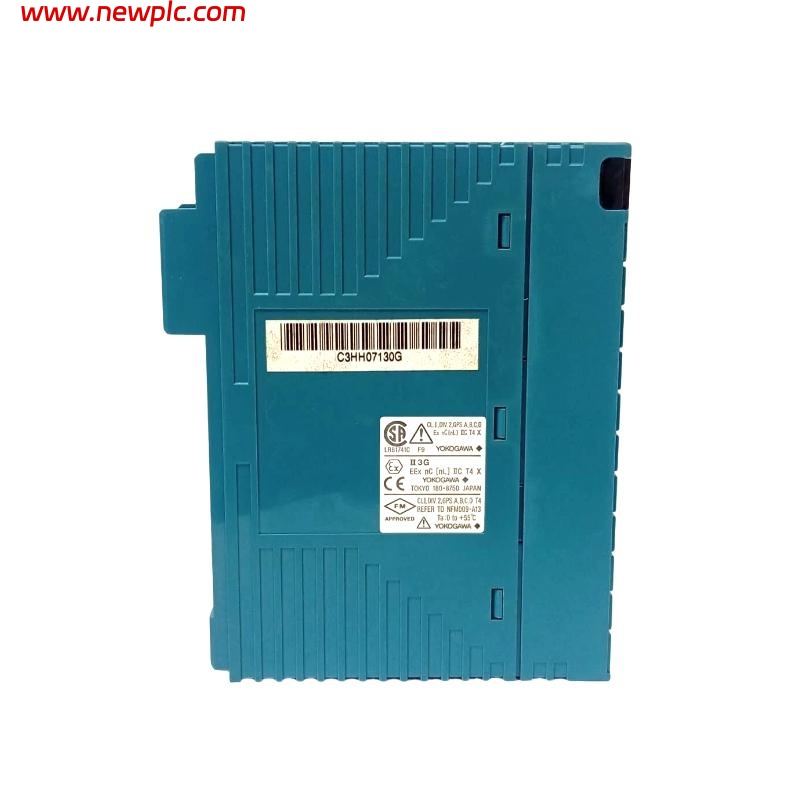

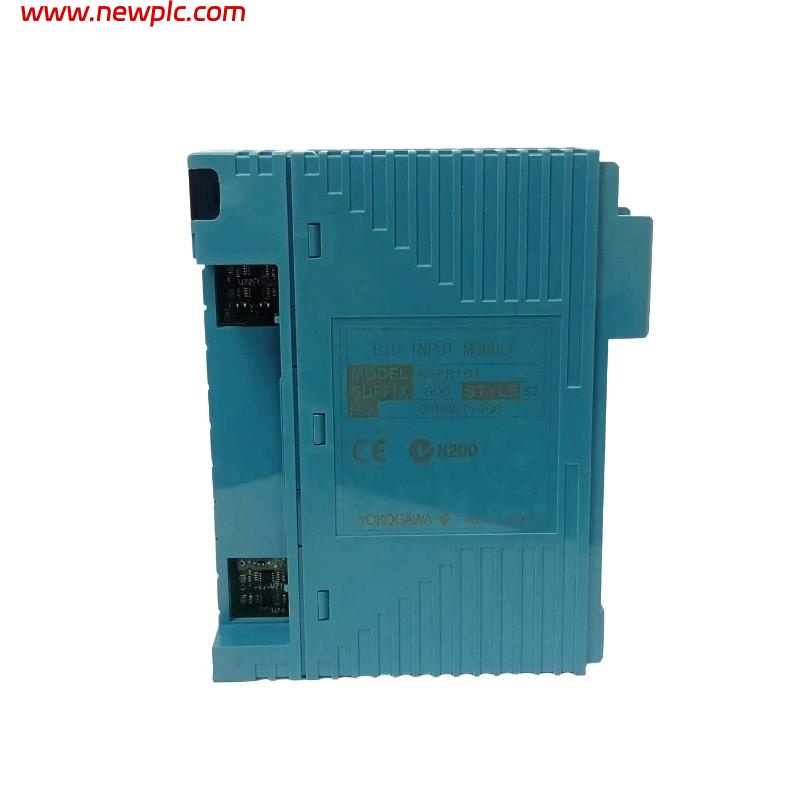

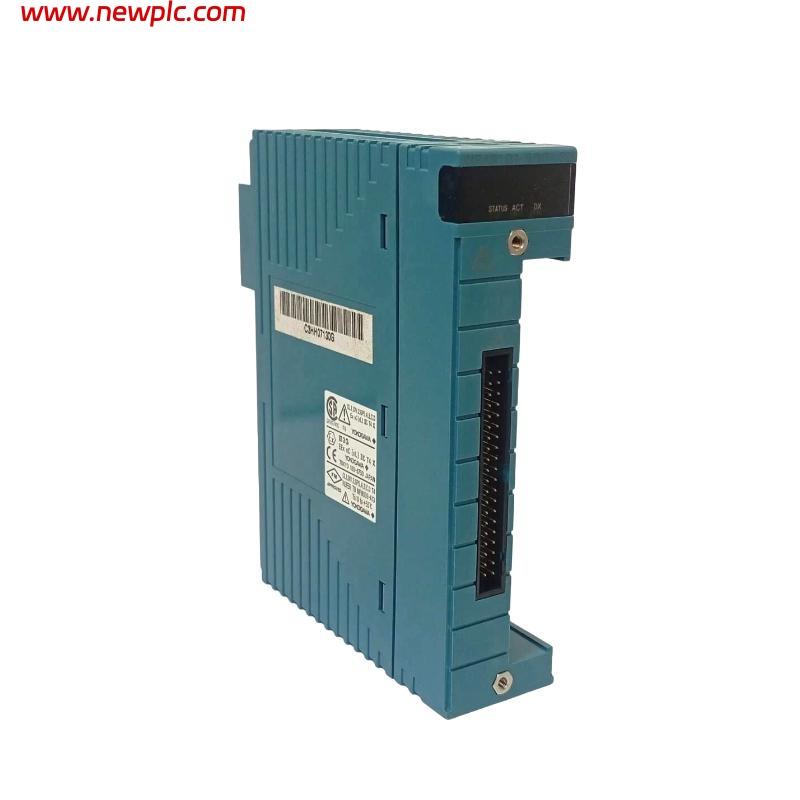

Yokogawa NFAR181-S50/R8S10 RTD Input Module

FAQ

Q1: What is the main function of the NFAR181-S50/R8S10 module?
It is used to receive and process signals from RTD temperature sensors for accurate temperature measurement.

Q2: How many input channels does the module have?
The module provides 8 independent RTD input channels.

Q3: What types of RTD sensors are supported?
It supports Pt100, Pt200, Pt500, Pt1000, and other standard RTD types.

Q4: What is the measurement range?
The measurement range is -200 ℃ to +850 ℃.

Q5: What is the measurement accuracy of the module?
Accuracy is ±0.1% FS, with a resolution of 0.1 ℃.

Q6: What wiring methods are supported?
It supports 2-wire, 3-wire, and 4-wire connections.

Q7: Does the module provide isolation protection?
Yes, it provides optical isolation between channels and the system.

Q8: What are the dimensions and weight of the module?
Dimensions are 130 x 107.5 x 32.8 mm, weight is 0.2 kg.

NFAR181-S50/R8S10 RTD Input Module Yokogawa
