Technical Specifications
| Item | Description |
|---|---|

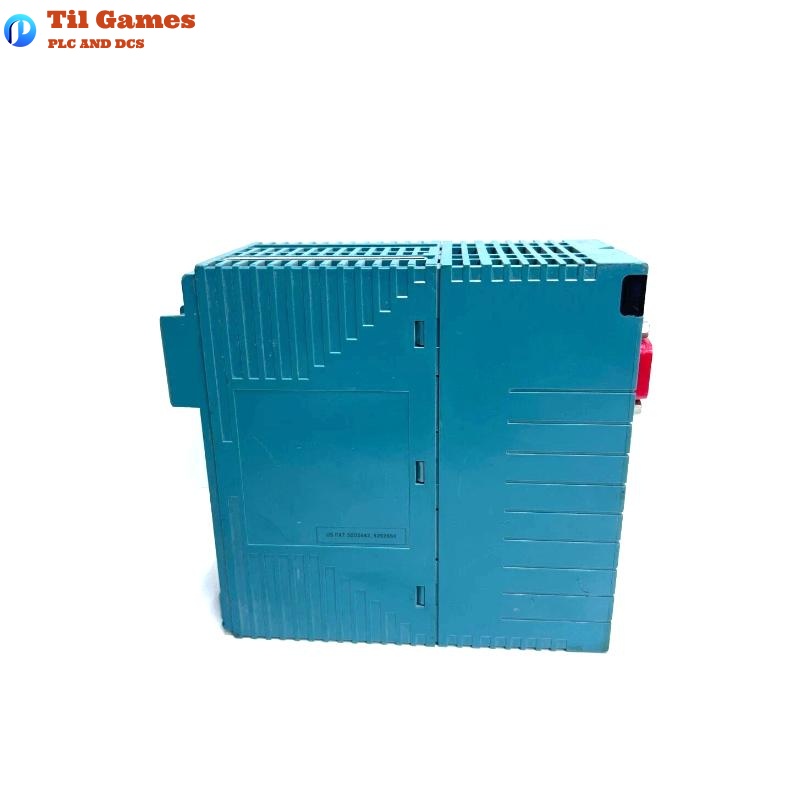

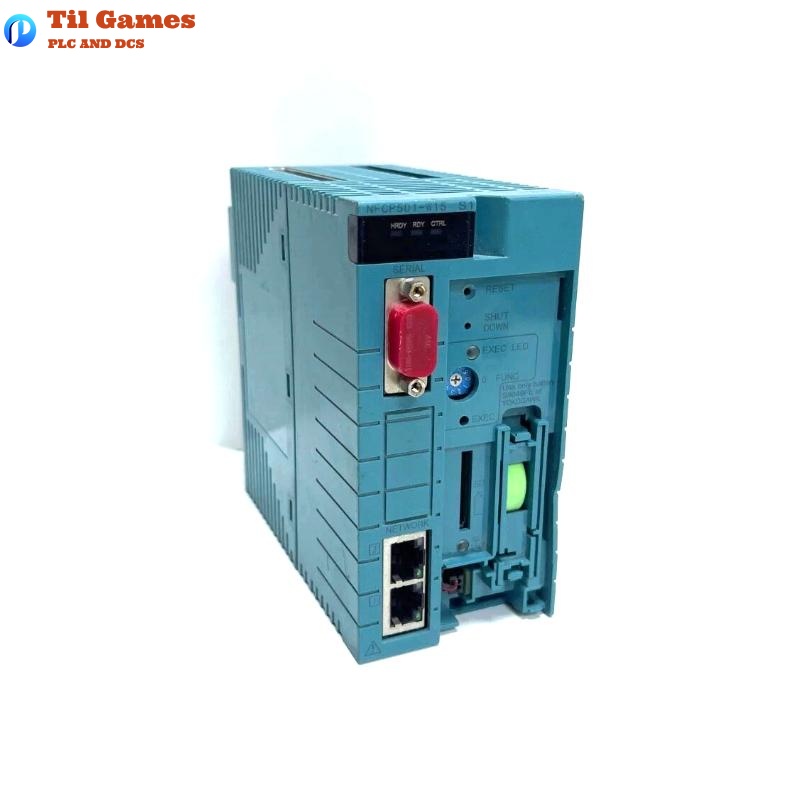

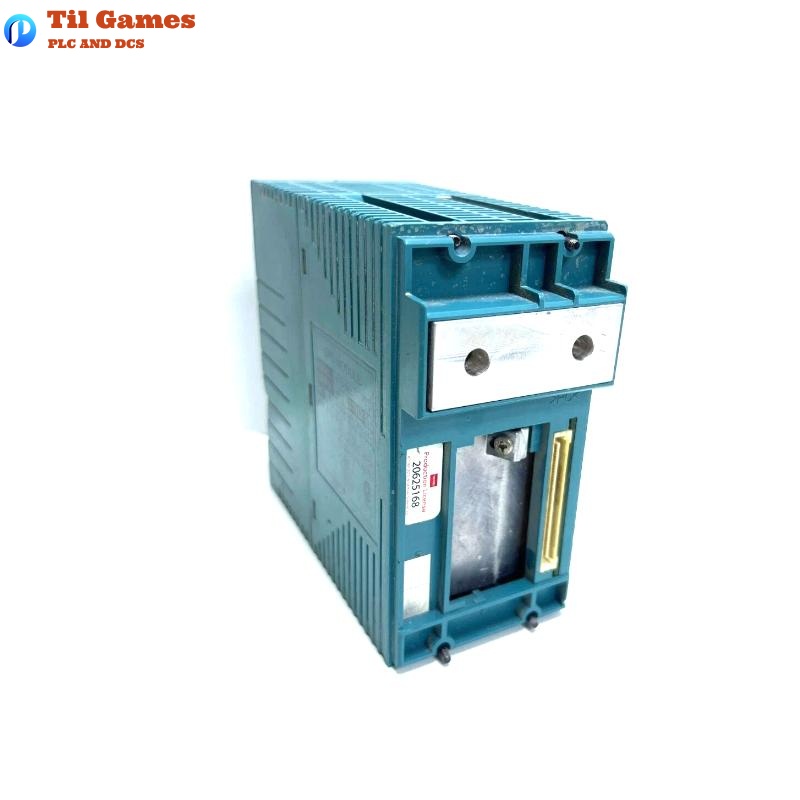

| Model | NFCP501-S00 |
| Processor | Intel Atom E3815 1.46 GHz |
| Main Memory | 256 MB with ECC |
| Static RAM | 2 MB with ECC, battery-backed |
| Flash Memory | 1 GB on-board |
| External Media | 1 SD card slot, supports SDHC (4–32 GB), Class 10 |
| Serial Port | 1 x RS-232-C, D-sub 9-pin, male |
| Ethernet Ports | 2 x RJ45 (10/100/1000 Mbps) |
| Communication Mode | Full/Half duplex (software configurable) |
| Synchronization | Asynchronous |
| Serial Baud Rates | 0.3, 1.2, 2.4, 4.8, 9.6, 14.4, 19.2, 28.8, 38.4, 57.6, 115.2 kbps |
| Interface | SB bus (duplex supported) |
| RAS Features | Watchdog timer, temperature monitor, diagnostics |
| Battery | 1000 mAh graphite fluoride lithium battery (hot-swappable) |
| LED Indicators | 3 CPU status, 2 Ethernet status, 1 SD status, 1 EXEC LED |
| Switches | RESET, SHUTDOWN, FUNC, EXEC |
| Power Supply Voltage | 5 V DC ±5% |
| Max Current Consumption | 1200 mA |
| Redundancy Support | Yes (identical model and software required) |
| Dimensions (W x H x D) | 65.8 x 130 x 149.3 mm |
| Weight | 0.9 kg |
| Slot Occupation | 2 slots |
FAQ
FAQ
Q1: Does the NFCP501-S00 support redundant configuration?
A1: Yes, it supports redundancy when two identical CPU modules are used (same model, function, and software version).
Q2: What network speeds are supported by NFCP501?
A2: It supports 10 Mbps, 100 Mbps, and 1000 Mbps Ethernet via two RJ45 ports.
Q3: Is SD card expansion supported?
A3: Yes, it supports SDHC cards (4–32 GB, Class 10) via one slot.
Q4: Does it offer protection against power loss?
A4: Yes, it includes a battery-backed SRAM and a battery status monitoring system.
Q5: Is a serial communication port available?
A5: Yes, it has one RS-232-C port, but it is not available when the module is used in redundant mode.
Q6: What is the operating temperature range?
A6: Standard type supports 0°C to 55°C; extended temperature version supports -20°C to 70°C.
Q7: How many slots does the module occupy?
A7: It occupies two slots in the base module.
Q8: What built-in RAS features are included?
A8: It includes watchdog timer, CPU self-diagnostics, temperature monitoring, and I/O diagnostics for enhanced reliability.
