Technical Specifications
| Parameter | Specification |
|---|---|

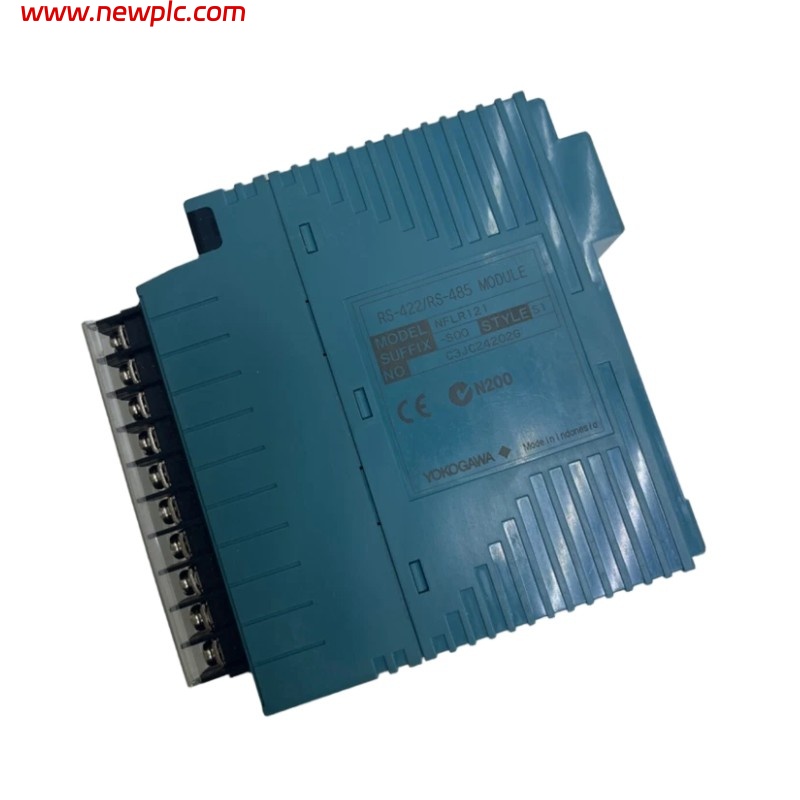

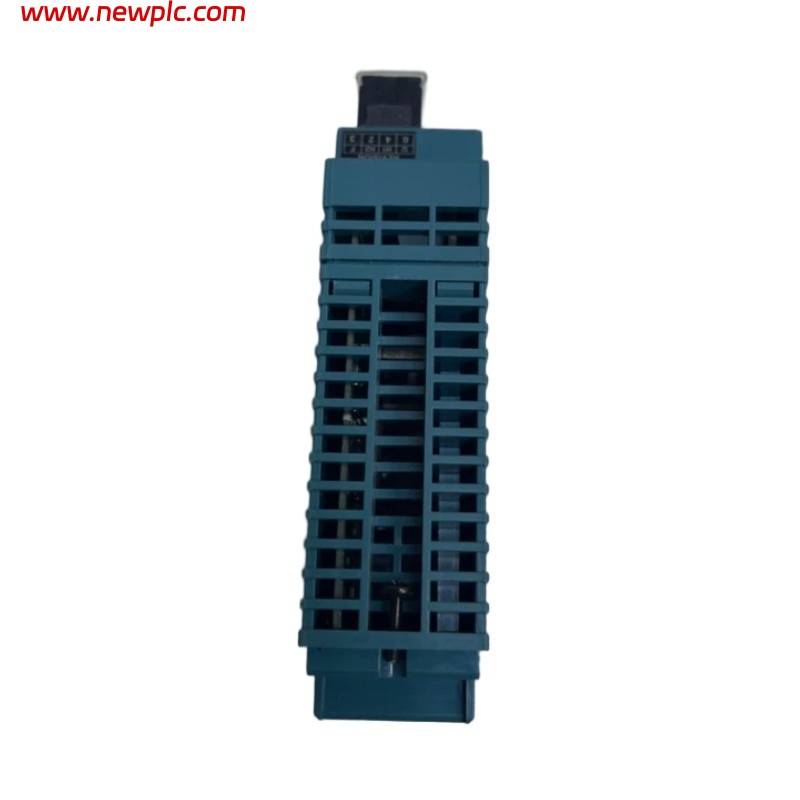

| Model | Yokogawa NFLR121-S00 S1 Serial Communication Module |
| Dimensions | 130 x 142.9 x 32.8 mm |
| Weight | 0.3 kg |
| Power Supply | 24 V DC ±10% |
| Communication Type | Serial Communication |
| Supported Protocols | RS-232C, RS-422/485 |
| Data Transmission Rate | Up to 115.2 kbps |
| Number of Ports | 2 independent serial ports |
| Isolation | Port-to-port and port-to-system isolation |
| Response Time | ≤ 2 ms |
| Operating Temperature | 0 ~ 55°C |
| Storage Temperature | -20 ~ 70°C |
| Relative Humidity | 10 ~ 90% RH (non-condensing) |
| Mounting Method | Panel Mount |
| Protection Rating | IP20 |
FAQ
FAQ
Q1: What is the main function of the NFLR121-S00 S1 module?
It enables serial communication between the Yokogawa control system and external devices.
Q2: Which communication standards are supported?
The module supports RS-232C and RS-422/485 communication protocols.
Q3: How many serial ports are available on the module?
It provides 2 independent serial communication ports.
Q4: What is the maximum data transmission rate?
The maximum transmission rate is up to 115.2 kbps.
Q5: Does the module have isolation protection?
Yes, it supports port-to-port and port-to-system isolation for reliable operation.
Q6: What are the power requirements for the NFLR121-S00 S1?
It requires a 24 V DC ±10% power supply.
Q7: What are the dimensions and weight of the module?
The dimensions are 130 x 142.9 x 32.8 mm, and the weight is 0.3 kg.
Q8: What environments is the module suitable for?
It operates within 0 ~ 55°C, storage -20 ~ 70°C, and 10 ~ 90% RH non-condensing environments.
