Technical Specifications
| Parameter | Specification |
|---|---|

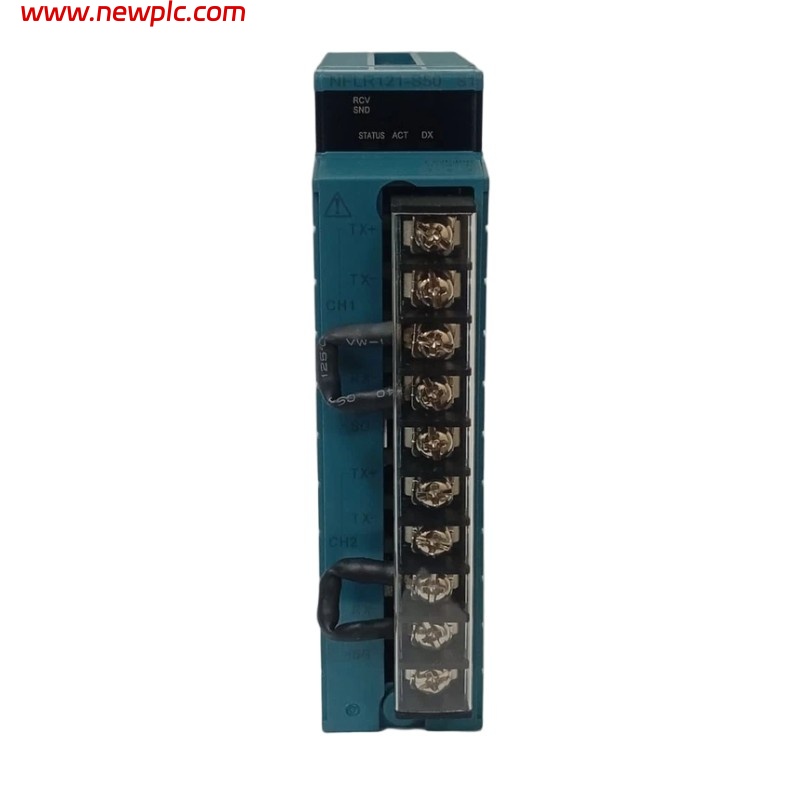

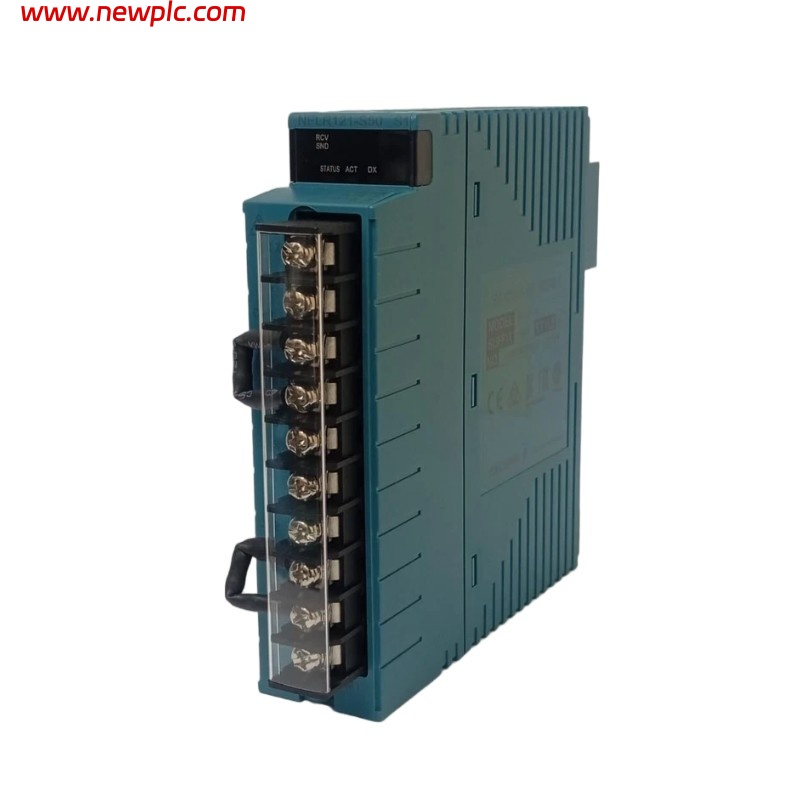

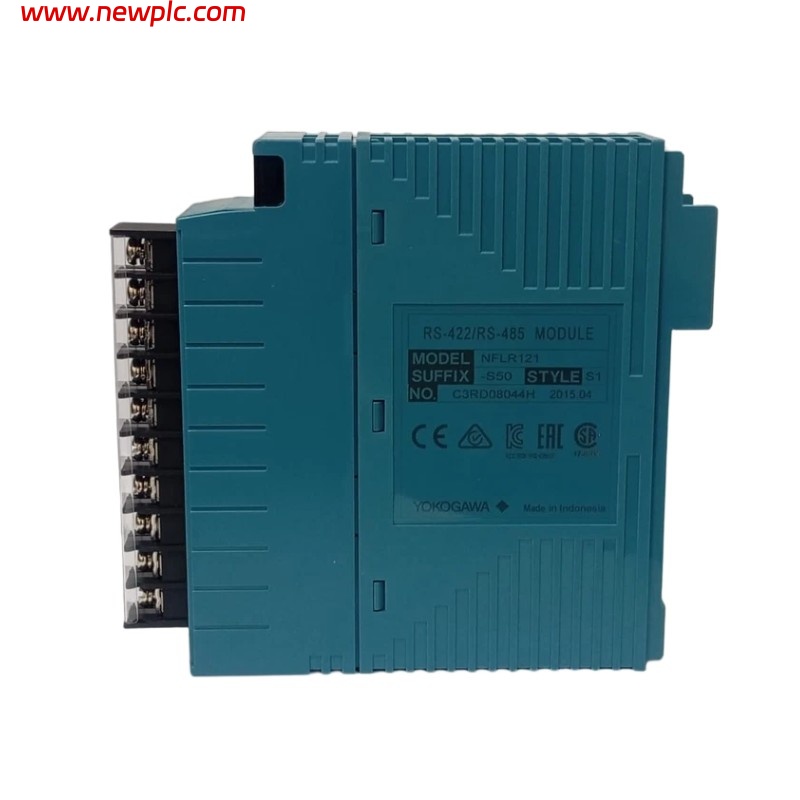

| Model | Yokogawa NFLR121-S50 S1 Serial Communication Module |
| Dimensions | 130 x 142.9 x 32.8 mm |
| Weight | 0.3 kg |
| Power Supply | 24 V DC ±10% |
| Communication Type | Serial Communication |
| Supported Protocols | RS-232C, RS-422/485 |
| Data Transmission Rate | Up to 115.2 kbps |
| Number of Ports | 2 independent serial ports |
| Isolation | Port-to-port and port-to-system isolation |
| Response Time | ≤ 2 ms |
| Operating Temperature | 0 ~ 55°C |
| Storage Temperature | -20 ~ 70°C |
| Relative Humidity | 10 ~ 90% RH (non-condensing) |
| Mounting Method | Panel Mount |
| Protection Rating | IP20 |
FAQ
FAQ
Q1: What is the function of the NFLR121-S50 S1 module?
It provides serial communication between Yokogawa control systems and external devices.
Q2: Which communication interfaces does it support?
It supports RS-232C and RS-422/485 serial communication.
Q3: How many serial ports are built into the module?
The module is equipped with 2 independent serial ports.
Q4: What is the maximum supported data rate?
It supports data transmission up to 115.2 kbps.
Q5: Does the module have isolation features?
Yes, it provides port-to-port and port-to-system isolation.
Q6: What are the power requirements?
The module requires 24 V DC ±10% power supply.
Q7: What are the physical dimensions and weight?
Dimensions are 130 x 142.9 x 32.8 mm, and weight is 0.3 kg.
Q8: What environmental conditions can it operate in?
It operates at 0 ~ 55°C, storage -20 ~ 70°C, and humidity 10 ~ 90% RH non-condensing.
