Technical Specifications
| Item | Specification |
|---|---|

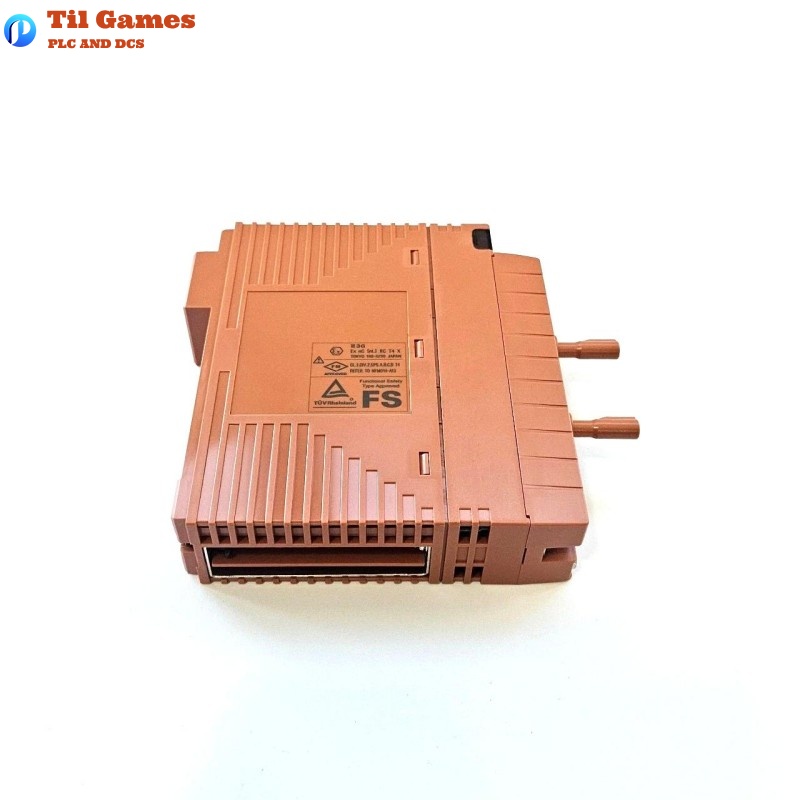

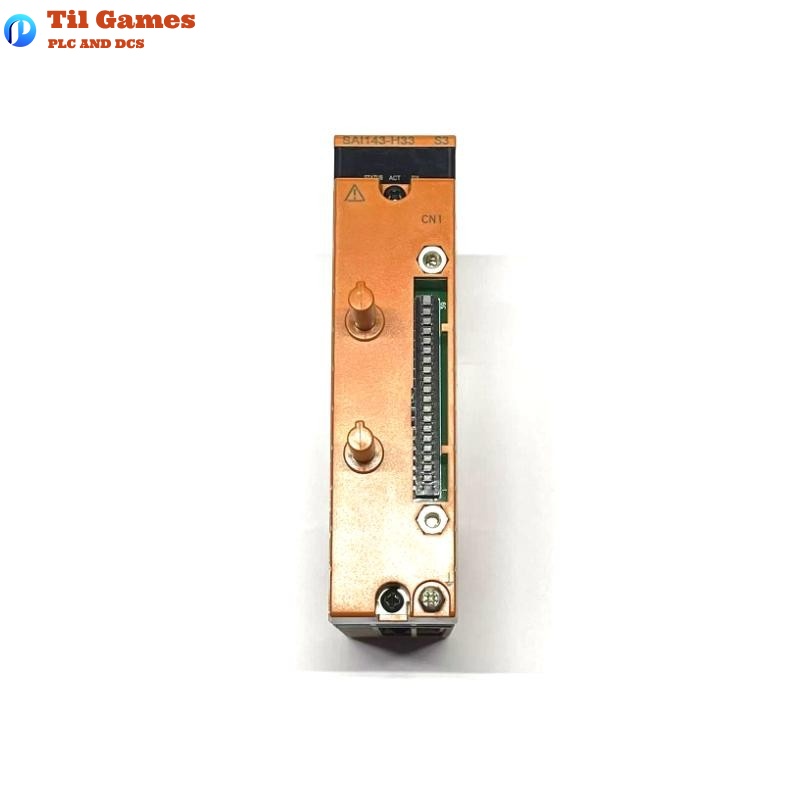

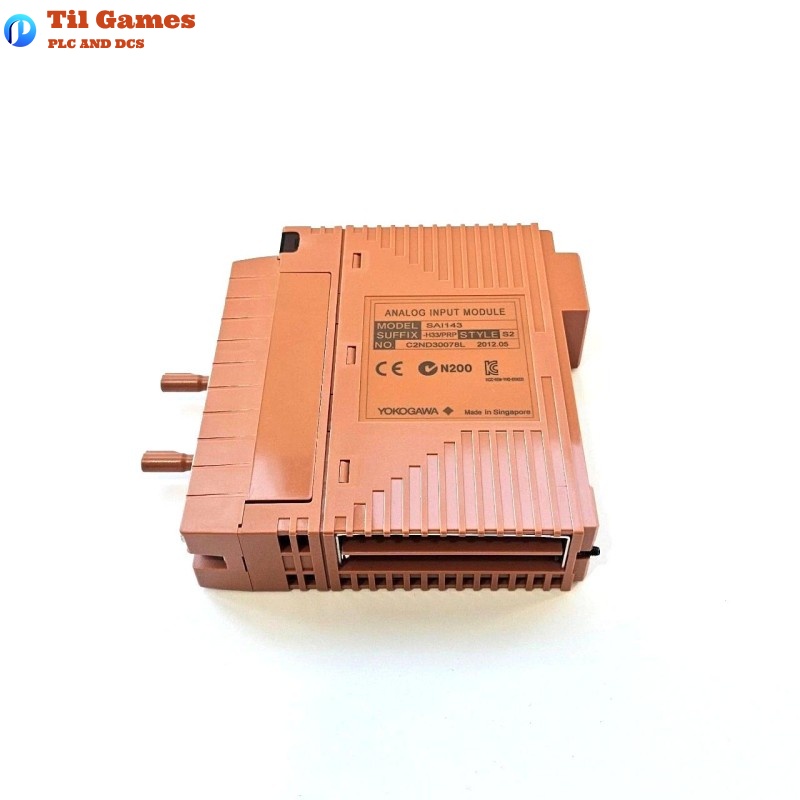

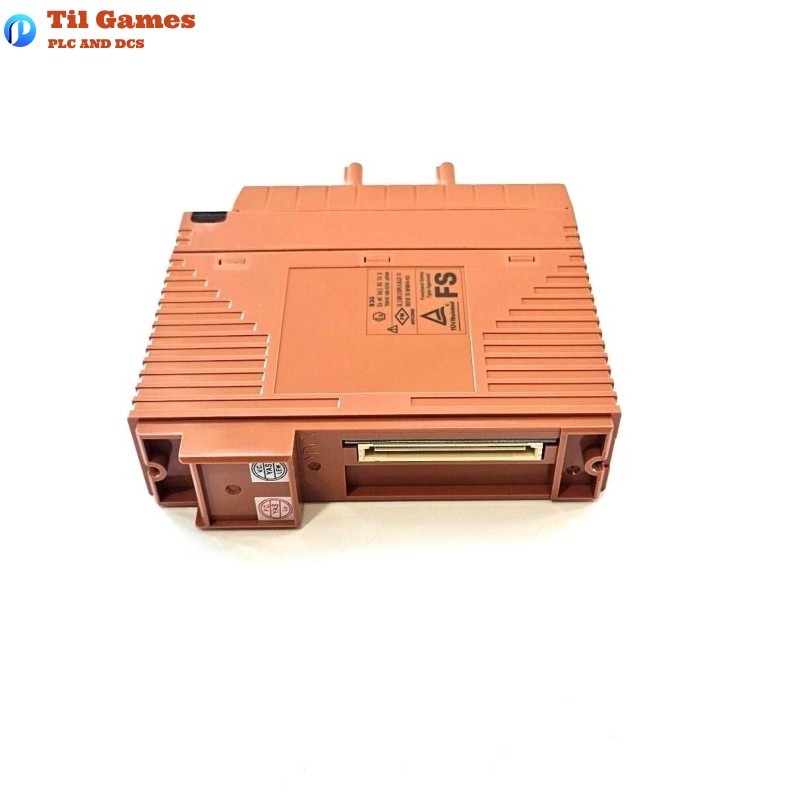

| Model | SAI143-H33 |
| Number of Input Channels | 16 channels, module isolation |
| Rated Input Range | 4 to 20 mA |
| Permissible Input Range | 0 to 25 mA |
| Input Impedance (Power ON) | 250 Ω + Current value |
| Input Impedance (Power OFF) | Minimum 500 kΩ |
| Voltage Drop (Protection Cir.) | Max 0.45 V (varies with current) |
| Accuracy | ±16 µA (for input range 0.05 to 23 mA) |
| Temperature Drift | ±16 µA per 10 °C |
| Data Update Frequency | 40 ms |
| Transmitter Power Supply | Min 16.15 V (@20 mA), Max 26.4 V (@0 mA), max current 25 mA |
| 2-/4-wire Setting | Individually configurable per channel (via setting pins) |
| Withstand Voltage | 1.5 kV AC between input and system for 1 minute |
| Max Current Consumption | 5V: 320 mA; 24V: 550 mA |
| HART Communication Supported | Yes (HART Protocol Rev. 5.7) |
| Dimensions | 130 mm × 107.5 mm × 32.8 mm |
| Weight | Approx. 0.34 kg (with pressure clamp terminal or MIL cable) |
| External Connection Options | Pressure clamp terminal, MIL cable, dedicated signal cable |
| PRM Support | Supported |
| Power Supply ON/OFF Function | Supported in 2-wire mode for all 16 channels simultaneously |
FAQ
Frequently Asked Questions (FAQ)
Q1: What input signal does the SAI143-H33 module support?
A1: It supports standard 4 to 20 mA current signals and accepts a range from 0 to 25 mA.
Q2: Does the SAI143-H33 support HART communication?
A2: Yes, it supports HART protocol revision 5.7, with one HART device per channel.
Q3: What is the input accuracy of this module?
A3: The rated accuracy is ±16 µA for input ranges between 0.05 and 23 mA.
Q4: Can the module support both 2-wire and 4-wire devices?
A4: Yes, each channel can be independently configured for 2-wire or 4-wire operation via pin settings.
Q5: What are the physical dimensions and weight of the module?
A5: It measures 130 x 107.5 x 32.8 mm and weighs approximately 0.34 kg.
Q6: Can the module supply power to field transmitters?
A6: Yes, it provides transmitter power with a minimum of 16.15 V at 20 mA and a max current limit of 25 mA.
Q7: How often does the module update data?
A7: The data update frequency is 40 milliseconds.
Q8: Is the SAI143-H33 suitable for redundant configurations?
A8: Yes, it supports dual-redundant setups to enhance system reliability.
