Technical Parameters
| Item | Specification |
|---|---|

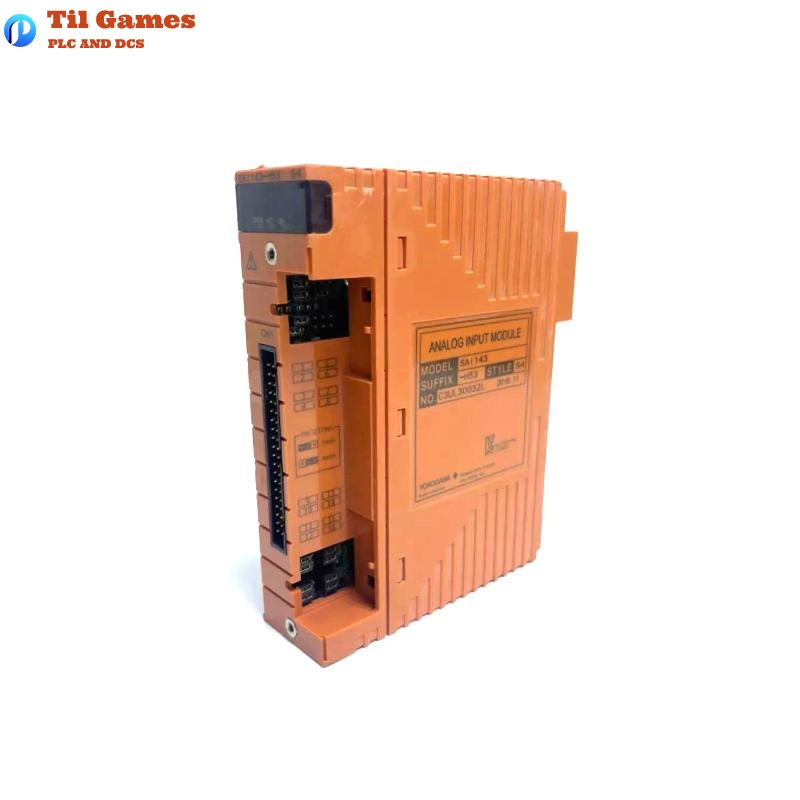

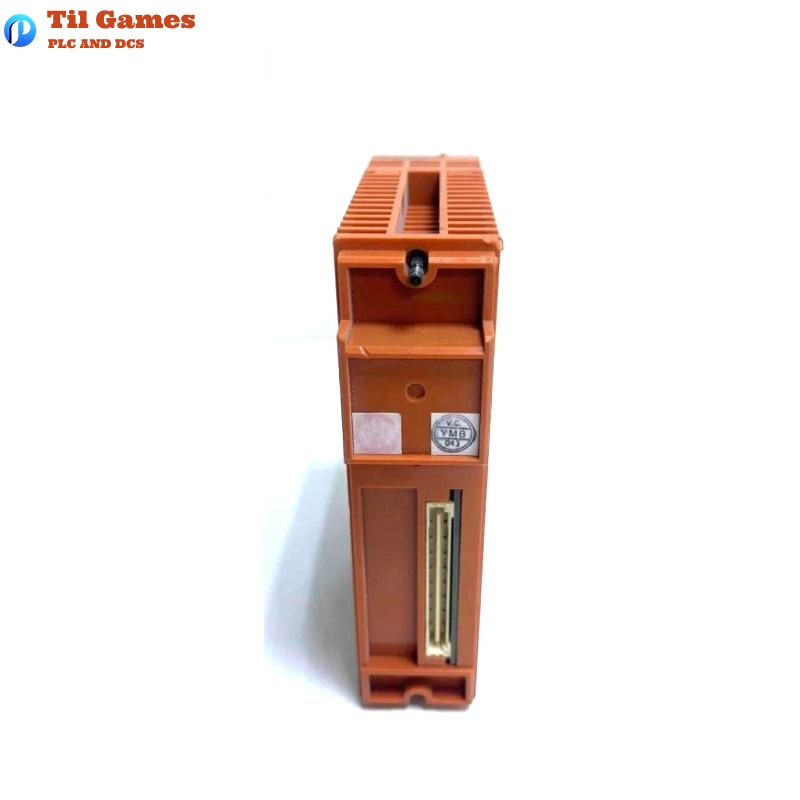

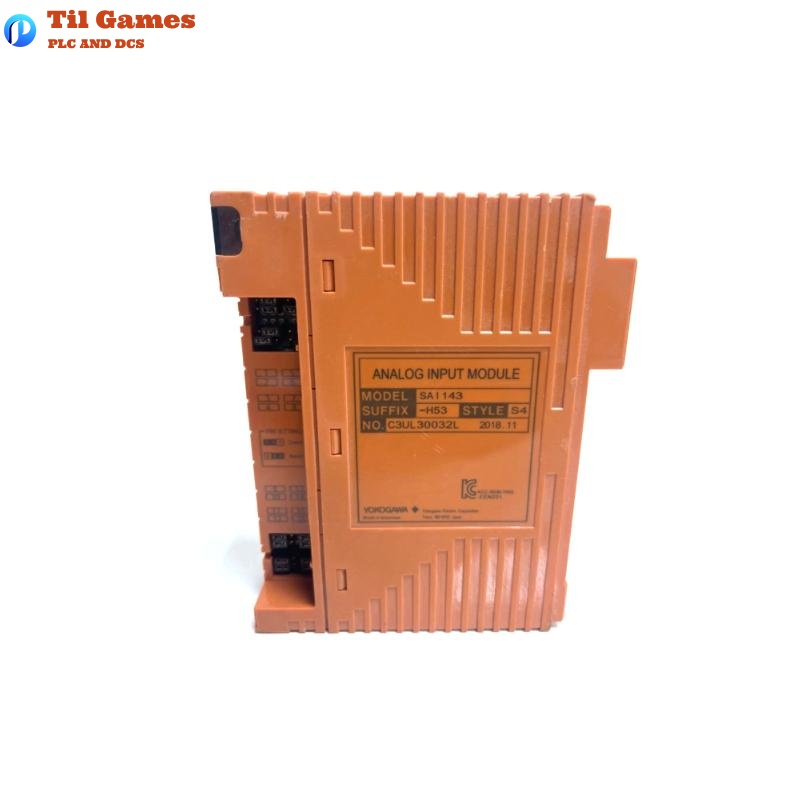

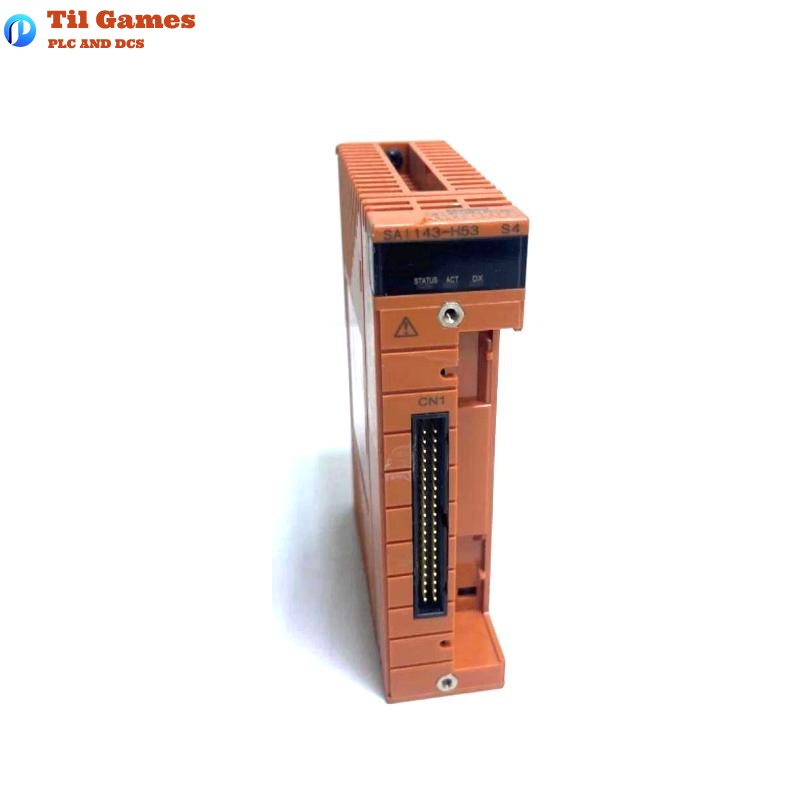

| Model | SAI143-H53 |
| Number of Input Channels | 16 channels, module isolation |
| Rated Input Range | 4 to 20 mA |
| Permissible Input Range | 0 to 25 mA |
| Input Impedance (Power ON) | 250 Ω + current value (max drop: approx. 0.45 V) |
| Input Impedance (Power OFF) | Minimum 500 kΩ |
| Rated Accuracy (Type-H) | ±16 µA (0.05 to 23 mA input range) |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA / 10°C |
| Transmitter Power Supply | Min. 16.15 V @ 20 mA, Max. 26.4 V @ 0 mA |
| Output Current Limit | 25 mA |
| 2/4-Wire Configuration | Configurable per channel |
| Withstand Voltage | 1.5 kV AC (between input signal and system, 1 min) |
| PRM / HART Communication | Supported (HART protocol rev. 5.7) |
| Power Consumption | 5 V: 320 mA; 24 V: 550 mA |
| External Connection | Pressure clamp, MIL cable, or dedicated signal cable |
| Dimensions (W x H x D) | 130 × 107.5 × 32.8 mm |
| Weight | Approx. 0.34 kg |
FAQ
Frequently Asked Questions
Q1: What input signal does the SAI143-H53 support?
A1: It supports standard 4 to 20 mA current input, with a permissible range of 0 to 25 mA.
Q2: Is HART communication supported by this module?
A2: Yes, SAI143-H53 supports HART protocol revision 5.7 and can communicate with one HART device per channel.
Q3: What is the rated accuracy of the input?
A3: The rated accuracy is ±16 µA within the 0.05 to 23 mA input range.
Q4: Are the input channels isolated from each other?
A4: The module provides overall isolation, but channels share a common ground (not isolated from each other).
Q5: How does the transmitter power supply function?
A5: Each channel provides a minimum of 16.15 V at 20 mA with a maximum output current limit of 25 mA.
Q6: What connection methods are available for external wiring?
A6: The module supports pressure clamp terminals, MIL cables, or dedicated signal cables.
Q7: What is the data update frequency?
A7: The module updates data every 40 milliseconds, suitable for medium-speed analog signal acquisition.
Q8: Is additional configuration needed for redundancy?
A8: Yes, for dual-redundant configuration, an identical module should be installed without selecting conflicting option codes.
