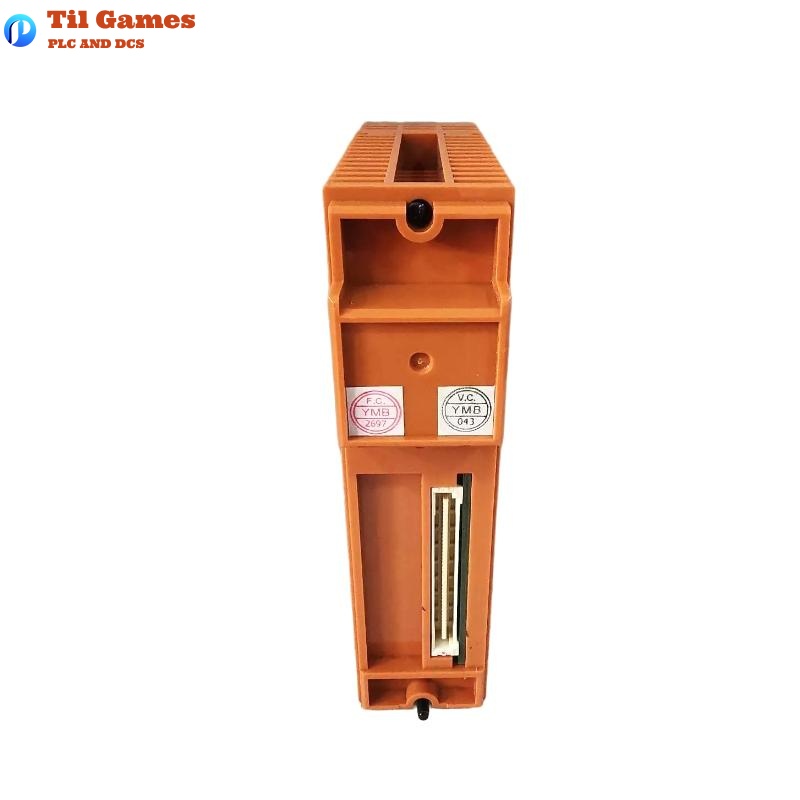

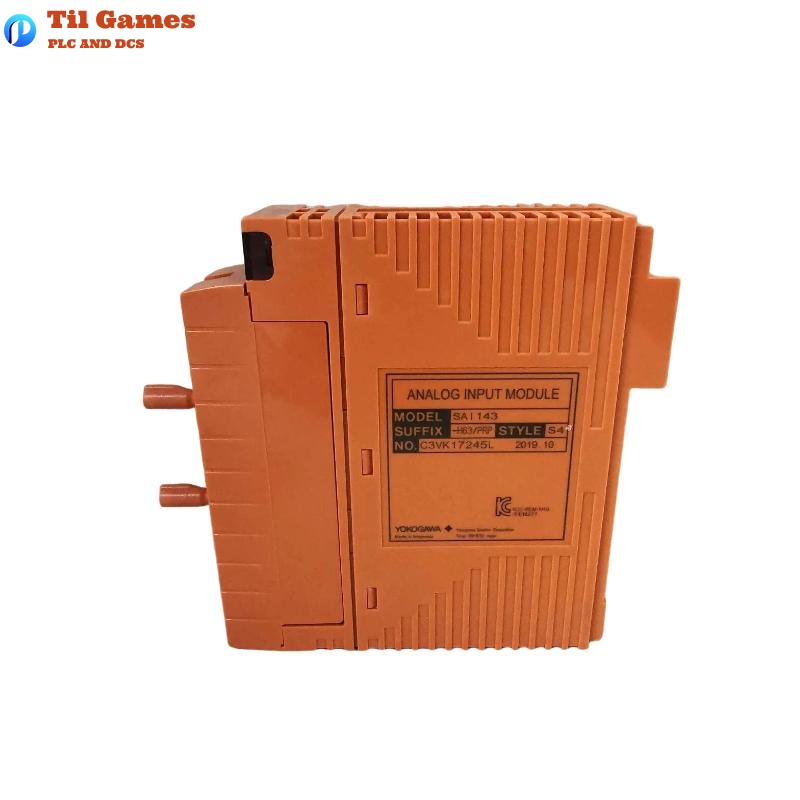

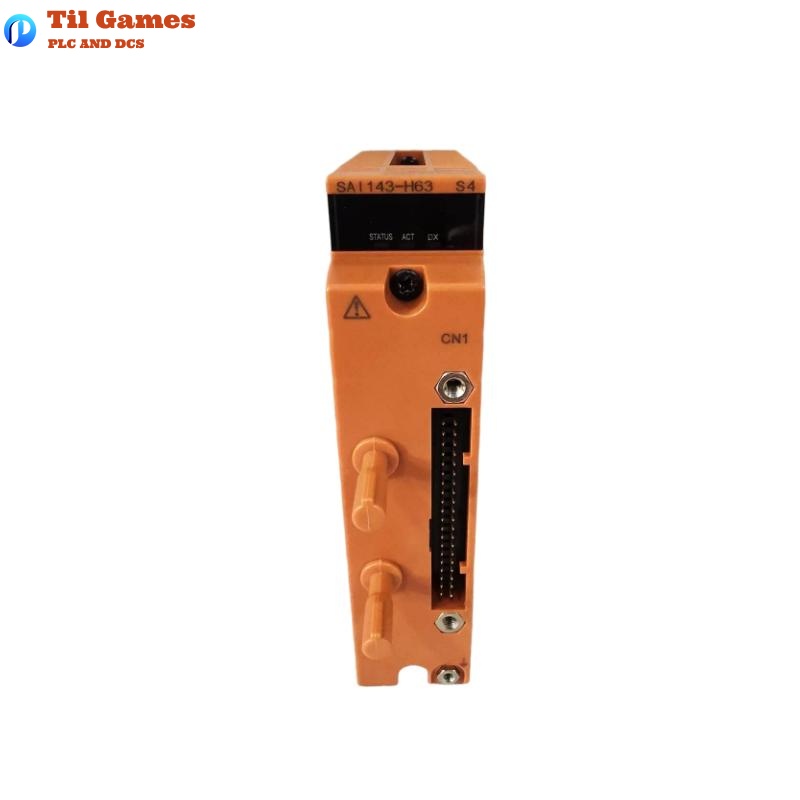

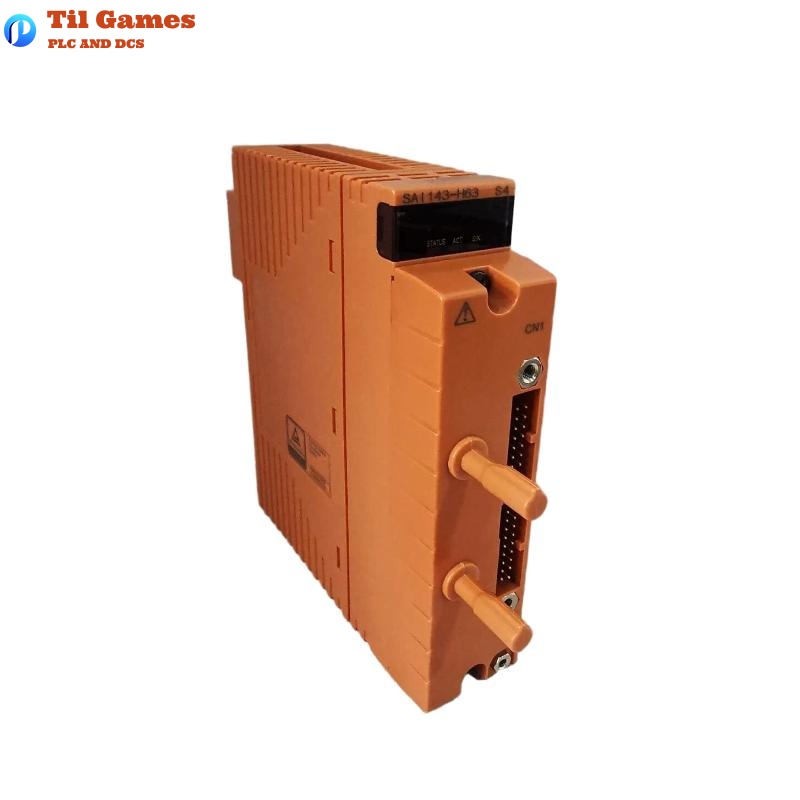

Technical Specifications
| Parameter Item | Description |
|---|---|
| Model | SAI143-H63/PRP |
| Number of Input Channels | 16 channels, module isolation |
| Rated Input Range | 4 to 20 mA |
| Permissible Input Range | 0 to 25 mA |
| Input Impedance (ON) | 250 Ω + current value (Max voltage drop: 0.45 V) |
| Input Impedance (OFF) | ≥ 500 kΩ |
| Rated Accuracy (H type) | ±16 µA (Input range 0.05 to 23 mA) |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA per 10°C |
| Transmitter Power Supply | Min 16.15 V at 20 mA, Max 26.4 V at 0 mA, 25 mA current limit |
| 2/4-wire Support | Per-channel configurable |
| Withstand Voltage | 1.5 kV AC between input signal and system for 1 minute |
| Max Current Consumption | 5V system: 320 mA; 24V system: 550 mA |
| External Connections | Pressure clamp terminal, MIL cable, dedicated cable |
| HART Communication | Supported (1 HART device per channel) |
| PRP Pin | Equipped with insertion prevention pin |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.34 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the SAI143-H63/PRP module support?
A1: It supports 16 isolated analog input channels.
Q2: What is the current input range supported by this module?
A2: The rated range is 4 to 20 mA, with an allowable range of 0 to 25 mA.
Q3: Does the SAI143-H support HART communication?
A3: Yes, the H-version of SAI143 supports HART protocol and PRM integration.
Q4: What is the HART communication speed?
A4: 1200 ±2 bps using binary phase-continuous FSK modulation.
Q5: What are the power requirements of the module?
A5: Max current consumption is 320 mA at 5V and 550 mA at 24V.
Q6: Does the module provide power to transmitters?
A6: Yes, each channel supplies power in 2-wire configuration.
Q7: What is the rated accuracy of the module?
A7: ±16 µA within the 0.05 to 23 mA input range.
Q8: What connection types are supported externally?
A8: It supports pressure clamp terminals, MIL cables, and dedicated signal cables.
