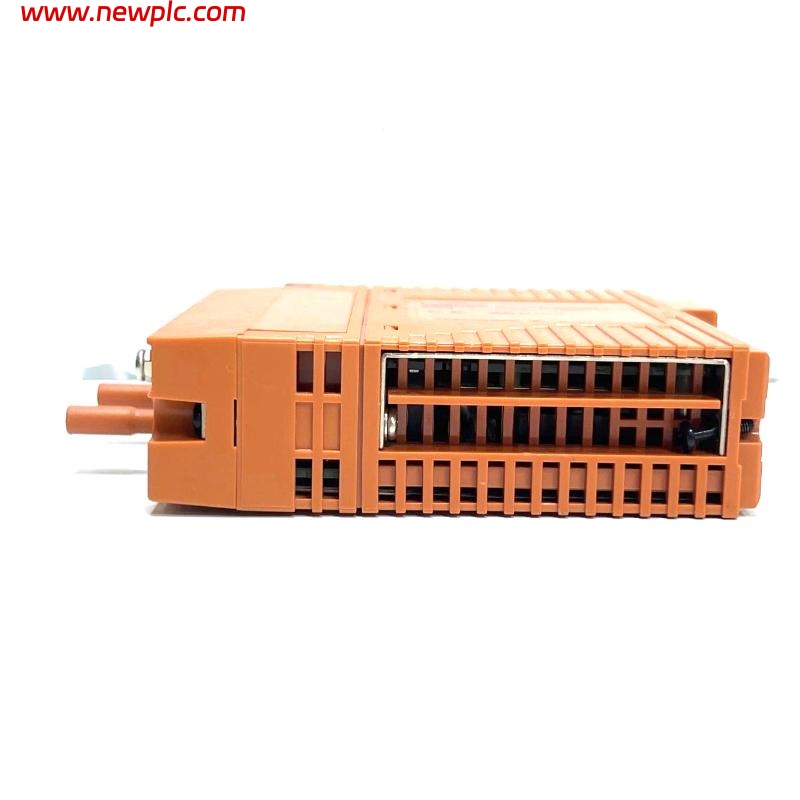

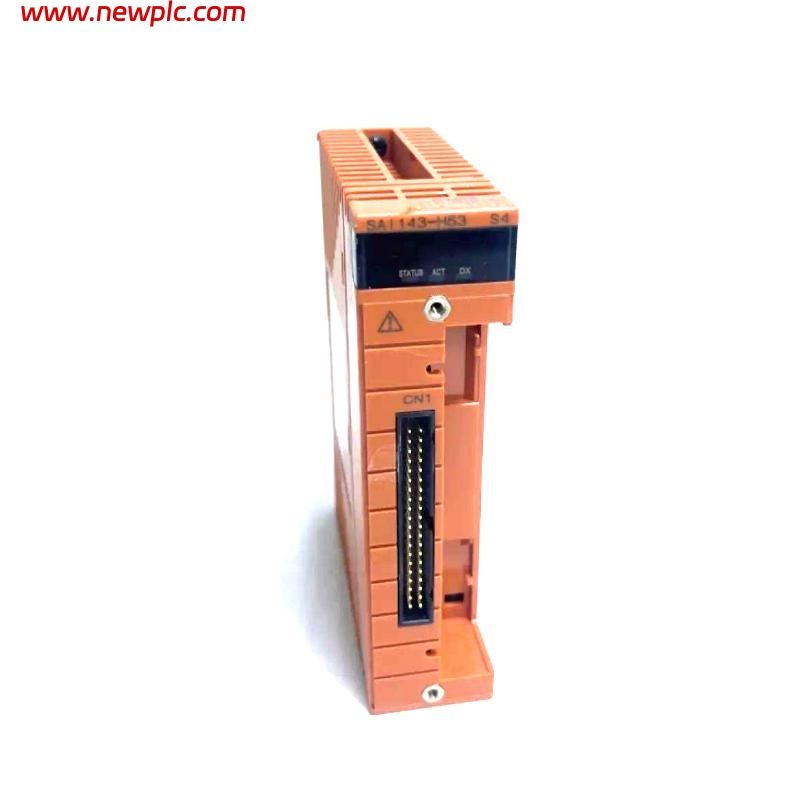

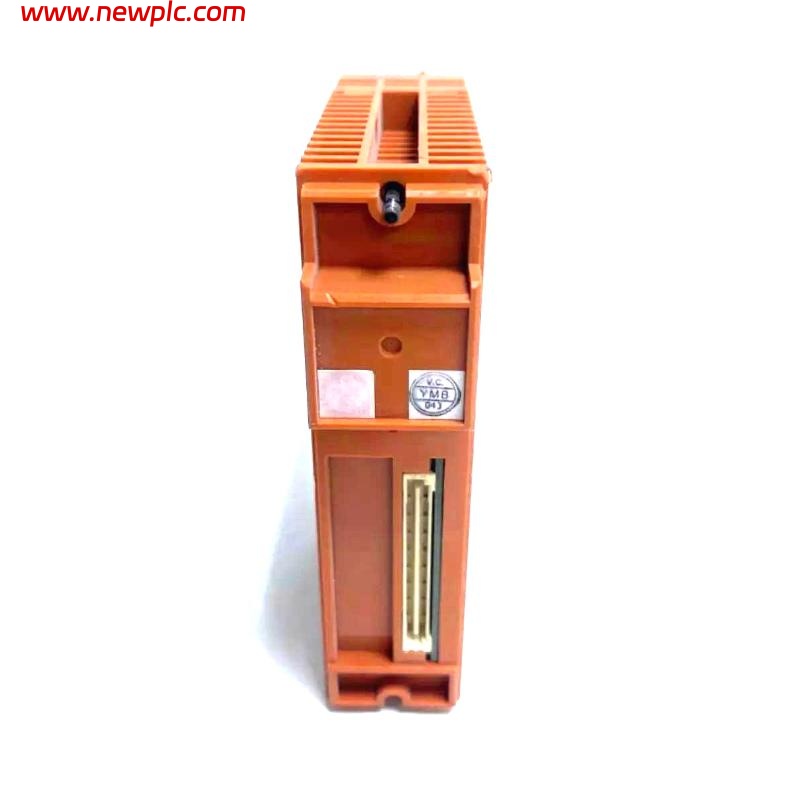

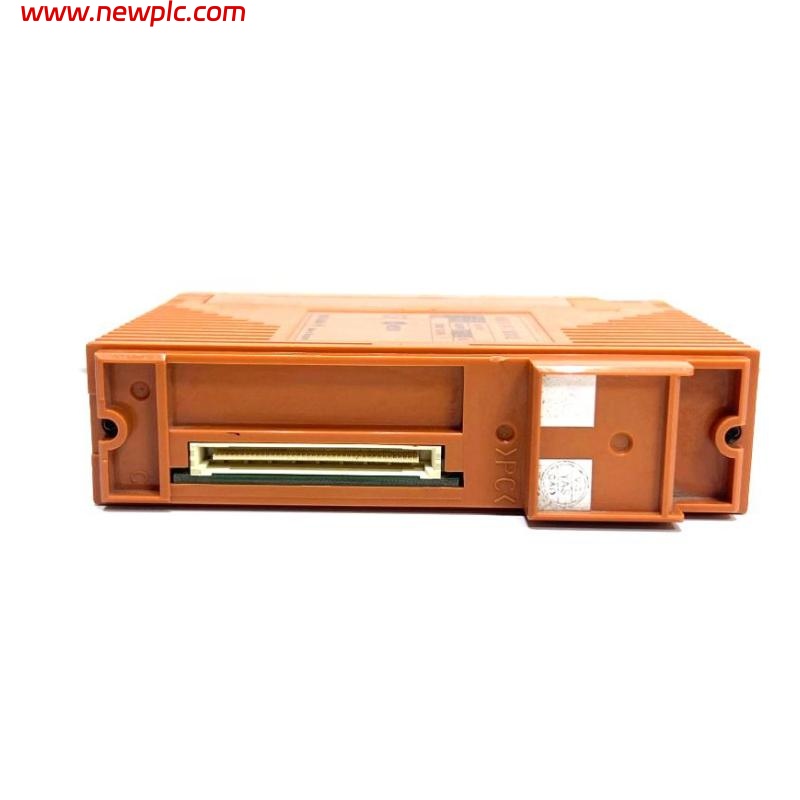

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SAI143-H53/A4D00 |
| Type | 16-Channel Analog Input Module, 4–20 mA, Module Isolation |
| Input Channels | 16 channels, isolated |
| Rated Input Range | 4–20 mA |
| Permissible Input Range | 0–25 mA |
| Input Impedance (Power-ON) | 250 Ω + voltage drop in input protection circuit (0.45 V max, varies 272.5–362.5 Ω) |
| Input Impedance (Power-OFF) | ≥500 kΩ |
| Rated Accuracy | ±16 µA (Input range 0.05–23 mA, style code S3 or later) |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA/10 °C |
| Transmitter Power Supply | 16.15–26.4 V, 25 mA max |
| 2/4-Wire Setting | Individual channel setting via pins |
| Withstand Voltage | 1.5 kV AC (input vs system, 1 min) / 500 V AC with dedicated signal cable |
| Maximum Current Consumption | 5 V system: 320 mA, 24 V system: 550 mA |
| Weight | 0.34 kg (pressure clamp or MIL cable), 0.39 kg (with signal cable adapter) |
| Dimensions | 130 × 107.5 × 32.8 mm |
| External Connection | Pressure clamp terminal, MIL cable, dedicated signal cable |
| HART Support | Available (SAI143-H) |
| Transmitter Power ON/OFF Function | Available for all 16 channels simultaneously (2-wire mode) |
FAQ
FAQ
Q1: What is the maximum number of HART devices supported per SAI143-H53 module?
A1: Each channel can connect to one HART device, totaling 16 HART devices for all channels.
Q2: Can the SAI143-H53 be used in a dual-redundant configuration?
A2: Yes, dual redundancy is supported when an additional module with identical specifications is installed without option codes.
Q3: How does the module handle temperature variations?
A3: The module has a temperature drift of ±16 µA per 10 °C, ensuring stable measurement in typical operating conditions.
Q4: What is the input impedance during Power-ON?
A4: The input impedance ranges from 272.5 Ω (20 mA) to 362.5 Ω (4 mA) including the voltage drop of 0.45 V in the protection circuit.
Q5: Is intrinsic safety supported with Zener barriers?
A5: No, Zener barriers cannot be used; an isolation barrier is required for intrinsic safety systems.
Q6: What is the maximum permissible input current?
A6: The permissible input range is 0–25 mA, while the rated input is 4–20 mA.
Q7: How frequently does the module update its data?
A7: Data update occurs every 40 ms, providing near-real-time signal processing.
Q8: Can the transmitter power be turned off individually per channel?
A8: No, in 2-wire setting, the ON/OFF function applies to all 16 channels simultaneously.
