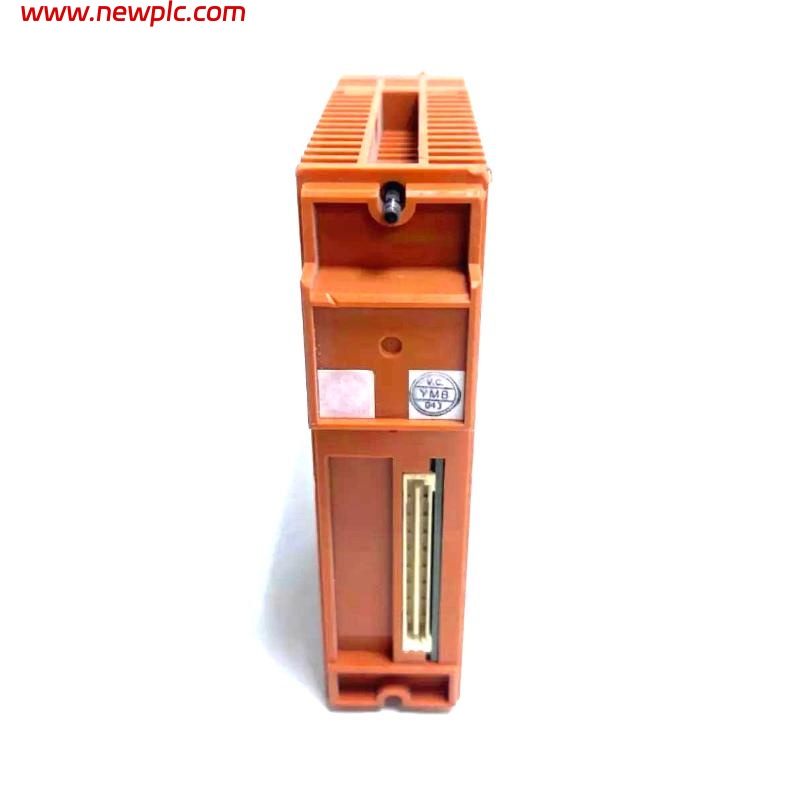

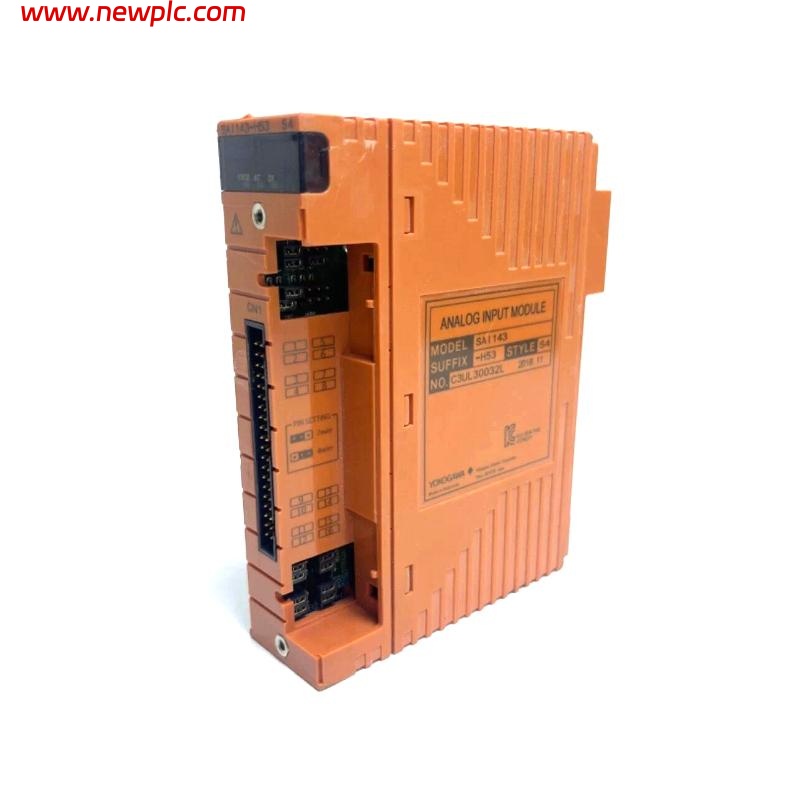

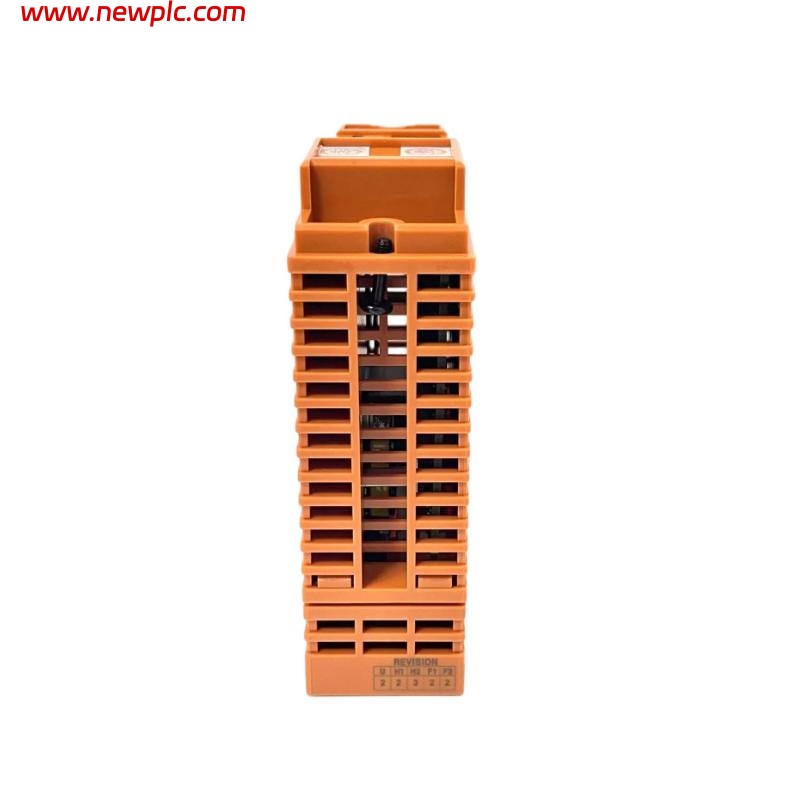

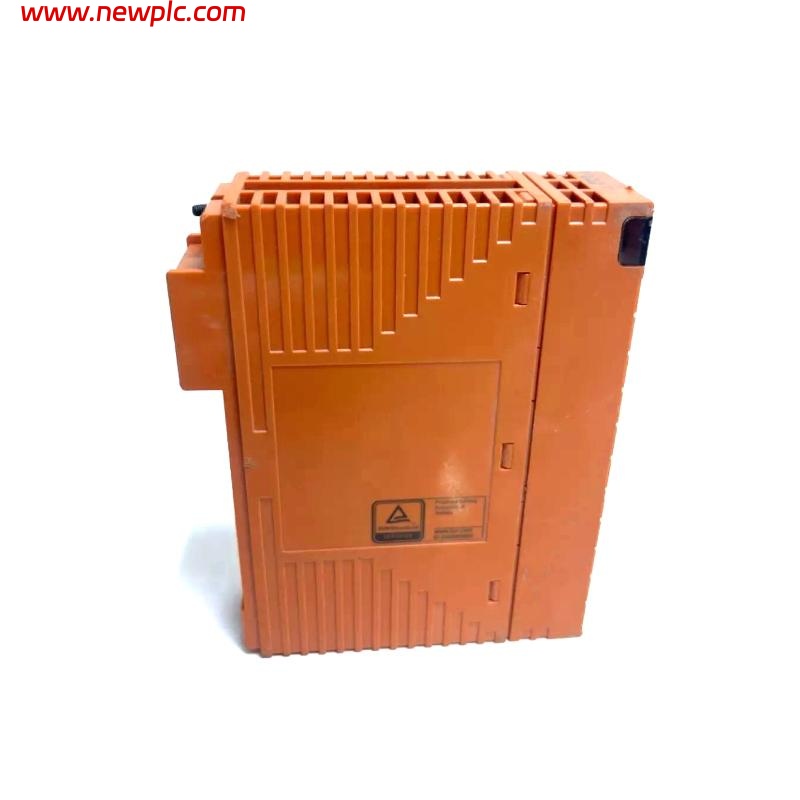

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SAI143-H53/A4S00 |
| Module Type | 16-Channel Analog Input Module (Current input, 4–20 mA) |
| Input Channels | 16 channels, module isolation |
| Rated Input Range | 4 to 20 mA |
| Permissible Input Range | 0 to 25 mA |
| Input Impedance (Power-ON) | 250 Ω + Voltage drop in internal protection circuit (0.45 V max) |
| Input Impedance (Power-OFF) | ≥ 500 kΩ |
| Rated Accuracy | ±16 µA (Input range 0.05 to 23 mA) |
| Data Update Frequency | 40 ms |
| Temperature Drift | ±16 µA/10 °C |
| Transmitter Power Supply | 16.15 V min (at 20 mA), 26.4 V max (at 0 mA), Output current limit: 25 mA |
| 2/4-Wire Setting | Individual channel setting via setting pins |
| Withstand Voltage | 1.5 kV AC between input signal and system for 1 min |
| Maximum Current Consumption | 5 V system: 320 mA, 24 V system: 550 mA |
| Weight | 0.34 kg |
| Dimensions (W × H × D) | 130 × 107.5 × 32.8 mm |
| External Connection | Pressure clamp terminal block |
| HART Communication | Supported, one HART device per channel, serial half duplex, 1200 ±2 bps, Binary FSK modulation |
| PRM Support | Available |
| Transmitter Power Supply ON/OFF Function | Available for all 16 channels in 2-wire configuration |
FAQ
FAQ
Q1: What is the maximum number of input channels for SAI143-H53 under high ambient temperature?
A1: When ambient temperature exceeds 60 °C, the number of usable input channels may be restricted. Refer to ProSafe-RS Outline of I/O Modules (GS 32P06K60-01EN) for detailed limitations.
Q2: Can Zener barriers be connected directly to this module?
A2: No. Zener barriers cannot be used. An isolation barrier is required for intrinsic safety applications.
Q3: What is the response time for HART communication?
A3: Maximum response time is 28 characters (256.7 ms). No-response timers are 305 ms for primary and 380 ms for secondary channels.
Q4: Is the module suitable for dual-redundant configuration?
A4: Yes, SAI143-H53 can be configured as dual redundant. An additional module with identical specifications is required.
Q5: How is transmitter power supplied to 2-wire devices?
A5: The module provides a 16.15–26.4 V transmitter power supply. Power ON/OFF control is available to reset alarm states.
Q6: What is the rated accuracy for low current signals (<0.05 mA)?
A6: For style code S3 or later, rated accuracy is ±32 µA below 0.05 mA. Above 0.05 mA, accuracy is ±16 µA.
Q7: Which types of external connections are supported?
A7: Supported connections include pressure clamp terminal blocks and dedicated signal cables. MIL cable connectors are also compatible.
Q8: Can this module be used in high-density installations?
A8: Yes, suffix code C supports high-density installations for SAI143-H modules, compliant with ISA Standard G3
