Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SCB110-S0 |

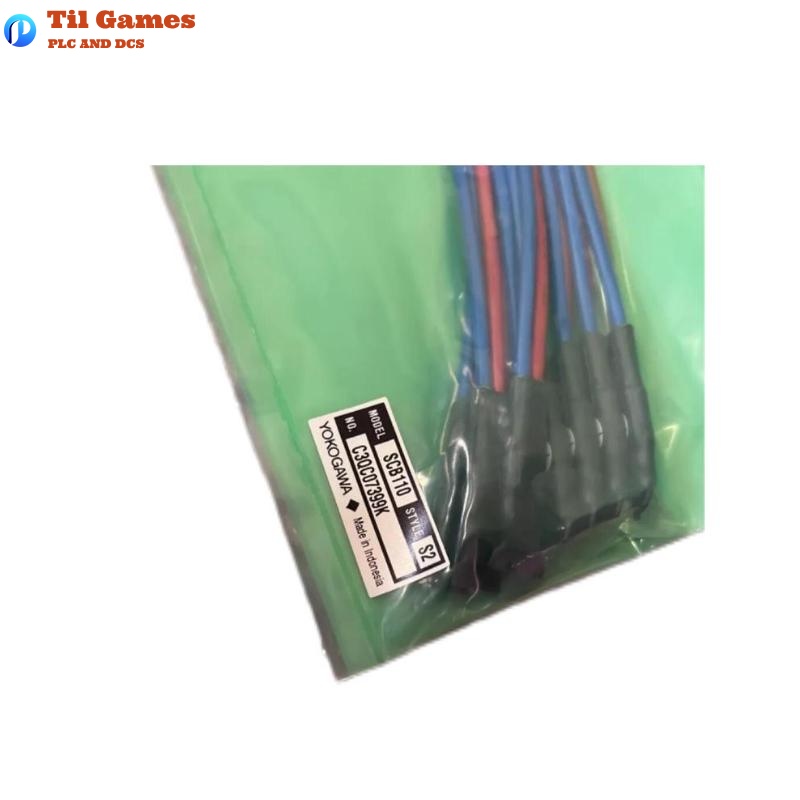

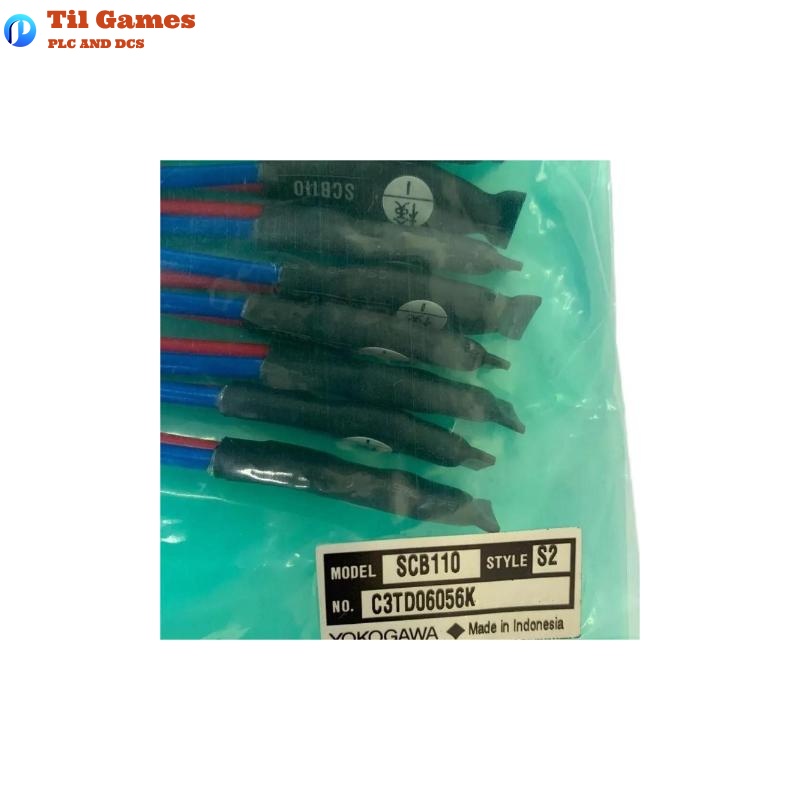

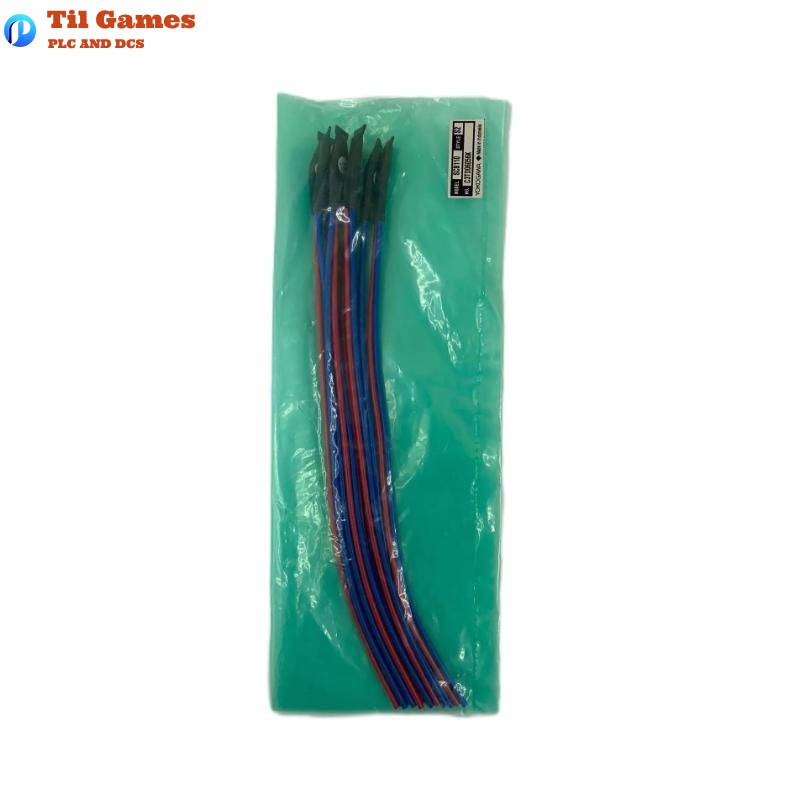

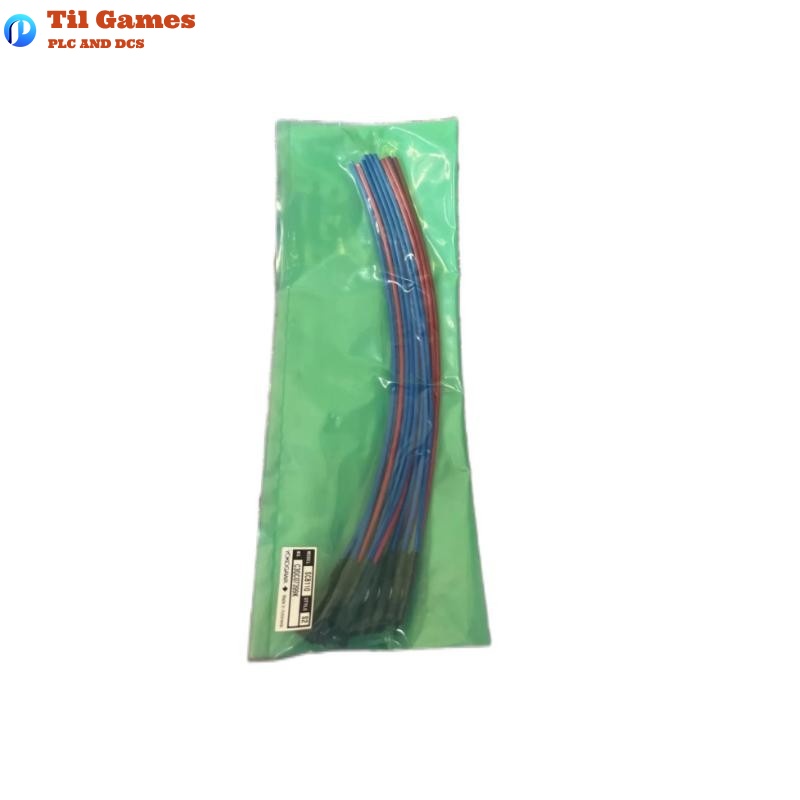

| Product Type | Wiring Check Adapter for Digital Input |
| Function | Short-circuit detection (for signals normally ON) |
| Compatible Module | SDV144 Digital Input Module |
| Installation | In series with field contact output |
| Wire Set | 8 wires per set |
| Applicable Standards | ISA Standard G3 |
| Dimensions (H x W x D) | 5 x 250 x 10 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the primary function of SCB110-S0?
A1: SCB110-S0 is used for detecting short circuits when input signals are normally in the ON state.
Q2: Which systems is SCB110 compatible with?
A2: It is designed for use with the Yokogawa ProSafe-RS system, specifically the SDV144 input module.
Q3: How is SCB110 installed?
A3: It is connected in series with the field device’s contact output. Attention must be paid to the red and blue wire polarity.
Q4: How many wires are included in one SCB110-S0 set?
A4: One set includes 8 wires, supporting 8 input channels.
Q5: Is SCB110 suitable for harsh environments?
A5: Yes, it complies with ISA G3 standards, making it suitable for industrial use.
Q6: Can SCB110 and SCB100 be used together?
A6: Yes, SCB110 can be used together with SCB100 to provide both short and open circuit detection.
Q7: Does SCB110 support hot swapping?
A7: No, hot swapping is not supported. Power must be turned off before installation or replacement.
Q8: What are the dimensions of SCB110?
A8: The SCB110 measures 5 x 250 x 10 mm and weighs approximately 0.3 kg.
