Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SNB10D-223/CU2N |

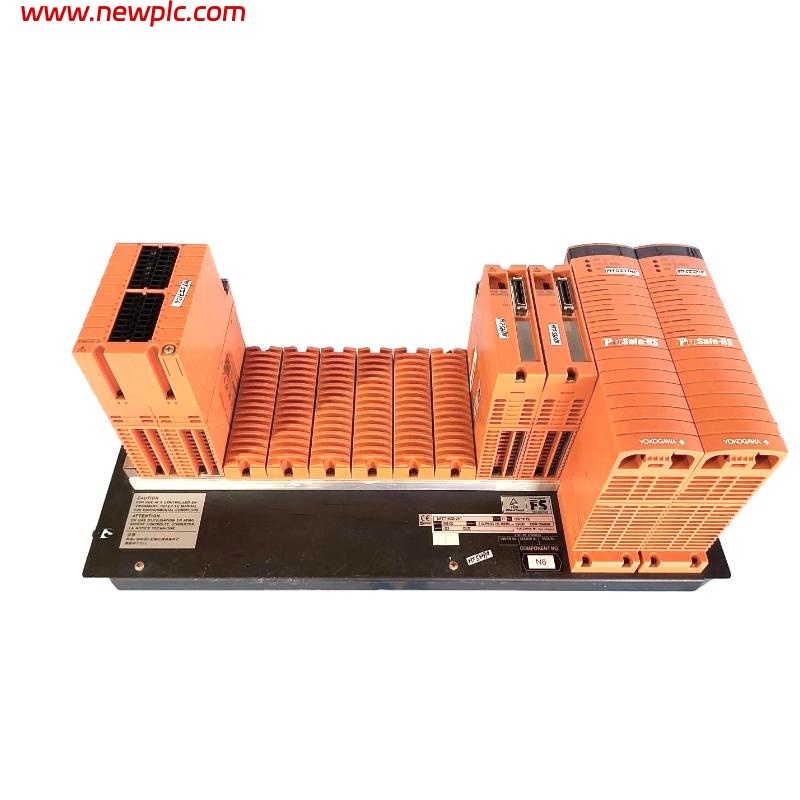

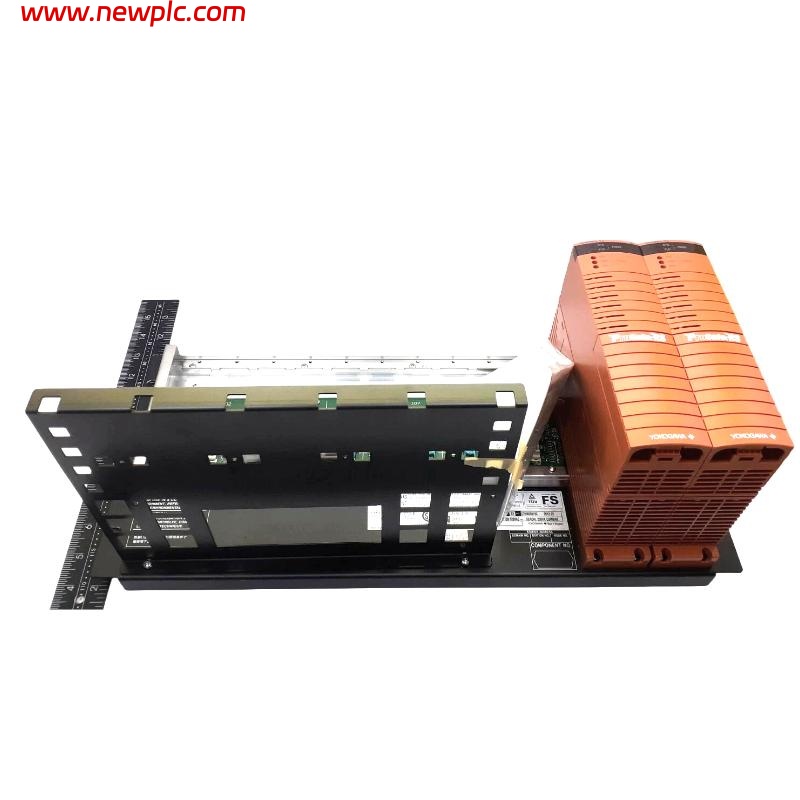

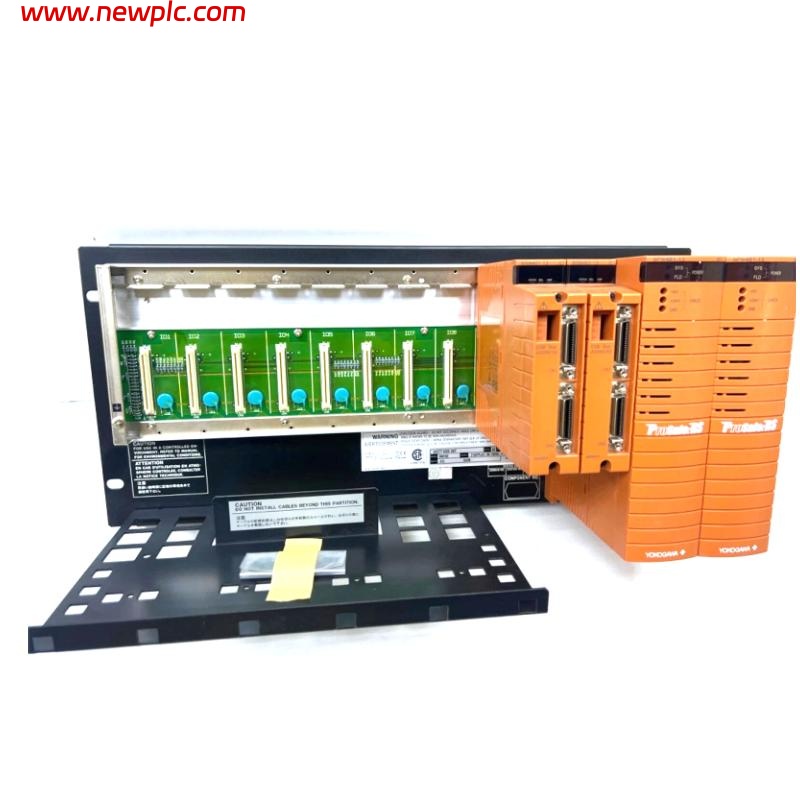

| Type | Safety Node Unit (Rack Mountable) |
| Power Supply Options | 100–120 V AC, 220–240 V AC, 24 V DC |
| Power Consumption | 100–120 V AC: 200 VA 220–240 V AC: 230 VA 24 V DC: 5.5 A |
| Weight | 5.9 kg |
| Dimensions (W x H x D) | 482.6 x 221.5 x 205 mm |
| Mounting | 19-inch rack mountable, four M5 screws with insulation bushes |
| Temperature Range | -20 to 70°C |
| Safety Integrity Level (SIL) | SIL 2/3 |
| Certification | IEC 61508 compliant |
| Connectivity | ESB Bus, up to 13 nodes via SEC402 ESB bus coupler module |
| Module Configuration | Power supply modules, ESB bus interface modules, optical ESB repeater modules, I/O modules |
| Environmental Protection | Standard and explosion-protected versions available |
FAQ
FAQ
-
Q1: What is the maximum number of Safety Node Units that can be connected via the ESB bus?
A1: Up to 13 Safety Node Units can be connected using the SEC402 ESB bus coupler module. -
Q2: Which safety integrity levels does the SNB10D-223/CU2N support?
A2: The unit supports SIL 2 and SIL 3, meeting high-reliability safety system requirements. -
Q3: What types of power supply redundancy are available for this unit?
A3: It supports dual-redundant power supply configurations to ensure continuous operation. -
Q4: What is the operating temperature range for this device?
A4: The unit can operate safely between -20°C and 70°C. -
Q5: How is the SNB10D-223/CU2N mounted in a control rack?
A5: It is mounted in a standard 19-inch rack using four M5 screws with insulation bushes. -
Q6: Can this unit handle both AC and DC power supplies?
A6: Yes, it supports 100–120 V AC, 220–240 V AC, and 24 V DC input power. -
Q7: Does the SNB10D-223/CU2N include optical communication modules?
A7: Yes, it includes optical ESB repeater modules for enhanced bus communication. -
Q8: Is this Safety Node Unit compliant with international safety standards?
A8: Yes, it is compliant with IEC 61508 standards for functional safety.
