Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SNB10D-225 / CU2T |

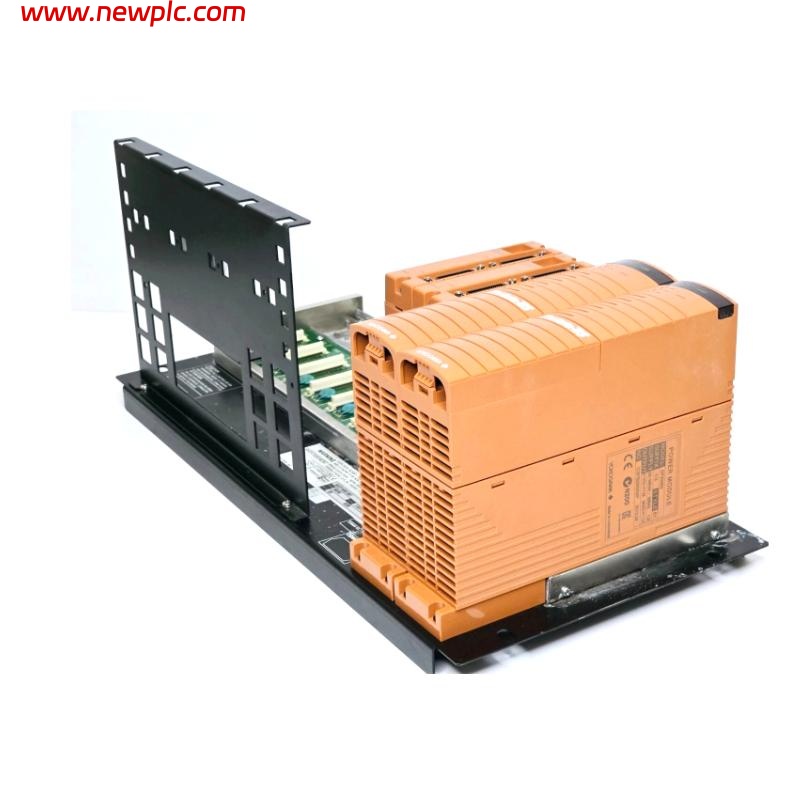

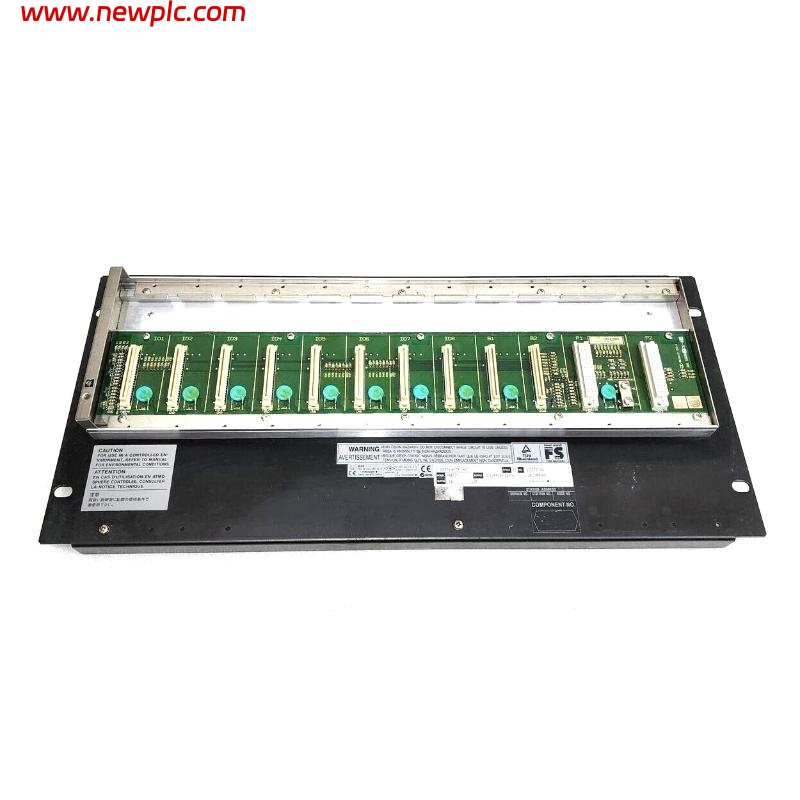

| Type | Safety Node Unit (Rack Mountable) |
| Power Supply | Dual-redundant 220–240 V AC, 230 VA |
| Operating Temperature | -20°C to +70°C |
| Humidity | 10% to 90% (non-condensing) |
| Mounting | 19-inch rack, 4 × M5 screws, insulation bushes included |
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 5.9 kg |
| Communication Interface | Ethernet Safety Bus (ESB) |
| Supported Modules | Power Supply Modules, ESB Bus Interface Modules, Optical ESB Bus Repeater Modules, I/O Modules |
| Maximum Units per Bus | 13 units (with SEC402 ESB bus coupler), 9 units (with SEC401) |
| Compliance | ISA Standard G3 |
| Connector Unit | CU2T (Connector Unit with Terminator for ESB Bus) |
FAQ
FAQ
-
Q1: What type of signals can the SNB10D-225 interface with?
A: It interfaces with both analog and contact signals from field devices. -
Q2: What is the maximum number of SNB10D-225 units supported per ESB bus?
A: Up to 13 units with the SEC402 module and 9 units with the SEC401 module. -
Q3: What is the operating temperature range for reliable performance?
A: -20°C to +70°C. -
Q4: How is the SNB10D-225 mounted in a control cabinet?
A: It is designed for 19-inch rack mounting using 4 M5 screws with insulation bushes. -
Q5: What is the purpose of the CU2T connector unit?
A: It ensures proper termination and signal integrity for the ESB communication bus. -
Q6: Which safety standards does the SNB10D-225 comply with?
A: It complies with ISA Standard G3 for safety-critical systems. -
Q7: What types of modules can be installed in the SNB10D-225?
A: Power supply modules, ESB bus interface modules, optical ESB bus repeater modules, and I/O modules. -
Q8: What are the dimensions and weight of the SNB10D-225 unit?
A: Dimensions are 482.6 × 221.5 × 205 mm, and the weight is 5.9 kg.
