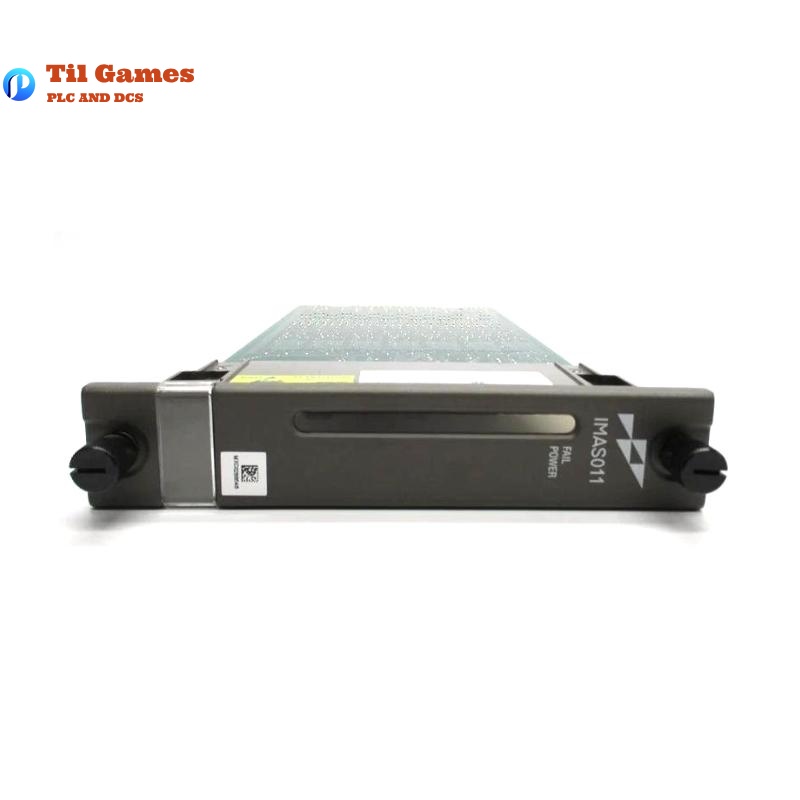

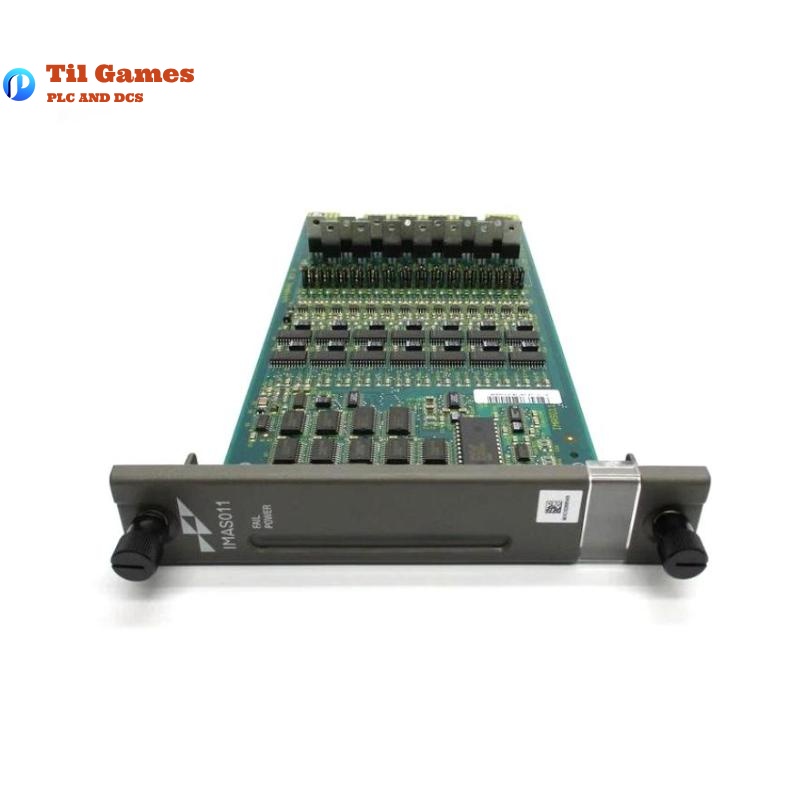

ABB Bailey IMASO11 Infi 90 Analog Output Module

Frequently Asked Questions (FAQ)

Q1: How many analog outputs does the IMASO11 provide?
A1: It provides 14 independent analog output channels.

Q2: What are the voltage and current output ranges?
A2: Voltage: 1–5 VDC; Current: 4–20 mA.

Q3: How are output modes selected per channel?
A3: Each output is configured via onboard jumpers J1–J28; 1-2 for current, 2-3 for voltage.

Q4: Does it support output overcurrent protection?
A4: Yes, each output is current-limited to a nominal 50 mA.

Q5: What happens on communication loss or power-up?
A5: Outputs go to a configured default: 0%, 100%, or Hold last value.

Q6: Can the module be replaced while powered?
A6: Yes, the IMASO11 supports hot-swapping without power interruption.

Q7: What do the front panel LEDs indicate?
A7: Green ON = normal; Red ON = bus fault or timeout.

Q8: Is any special handling required during installation?
A8: Yes, ESD precautions are mandatory using grounding straps and antistatic tools.
