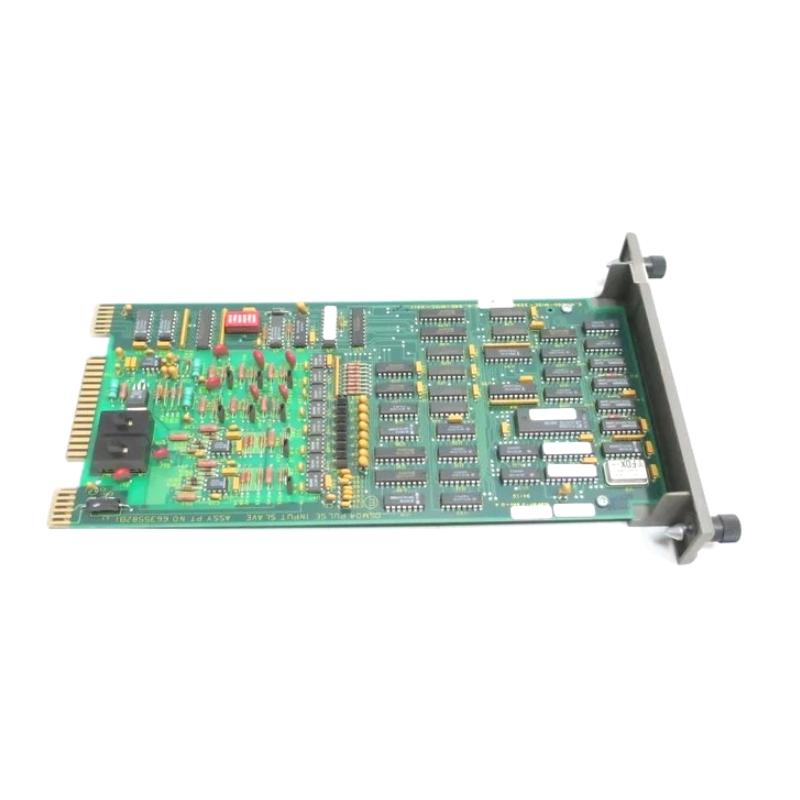

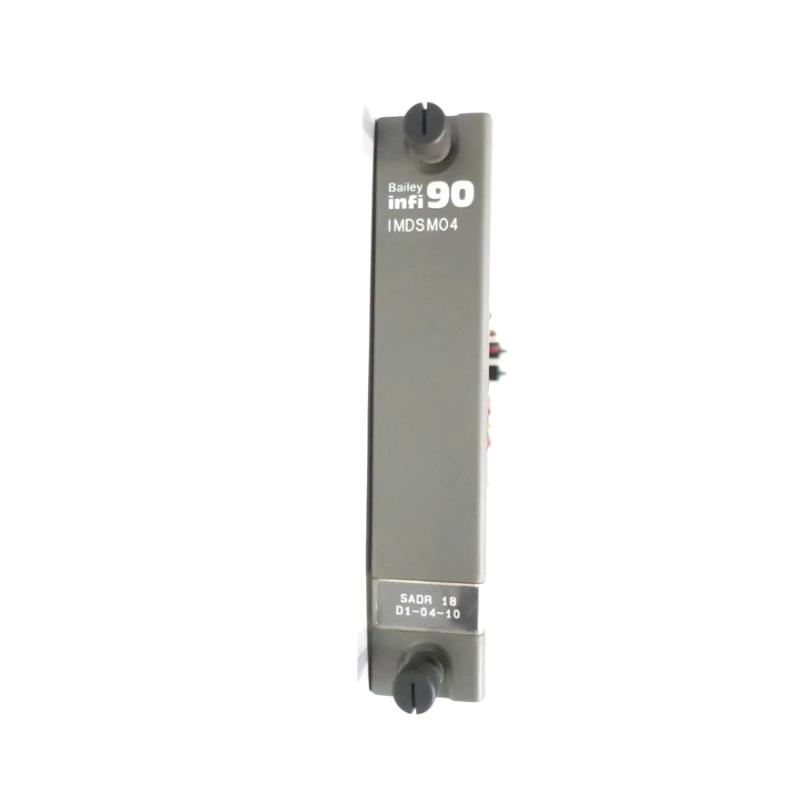

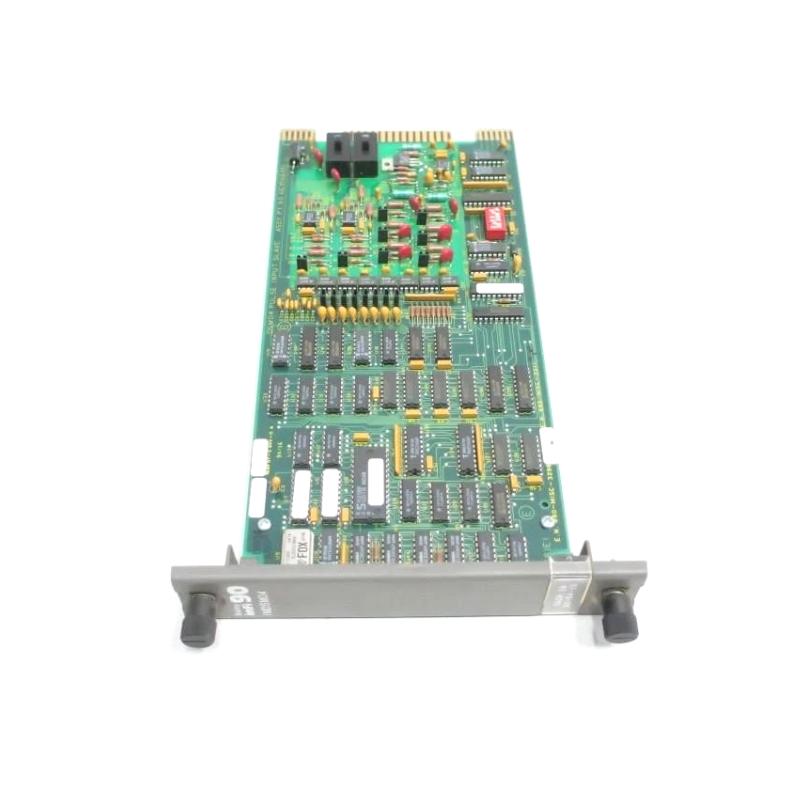

ABB Bailey IMDSM04 Infi 90 Digital Slave Input/Output Module

Frequently Asked Questions (FAQ)

Q1: What is the function of the IMDSM04 module?
A1: The IMDSM04 serves as a pulse input slave module, interfacing 8 pulse or frequency signals into the Infi 90 system for totalization, frequency, or period measurement.

Q2: Which signal voltage ranges are supported by the IMDSM04?
A2: It supports three ranges: 4–6 VDC, 21.6–27 VDC, and 50 mV to 10 V peak-to-peak (only on channels 1 & 2 with preamplifiers).

Q3: How many channels can be connected to the IMDSM04?
A3: The module supports 8 independent pulse input channels.

Q4: Can the module detect low-level signals?
A4: Yes, channels 1 and 2 support low-level signal detection via internal preamplifiers (50 mV to 10 V peak-to-peak).

Q5: What is the maximum input frequency the module can process?
A5: The maximum input frequency is 50 kHz.

Q6: How does the module handle debounce?
A6: Each input has configurable debounce timing with an 8.5 ms delay option.

Q7: What are the operating modes of the IMDSM04?
A7: It supports three modes: Totalize, Frequency, and Period, selectable via configuration in the Multi-Function Processor (MFP).

Q8: What kind of isolation does the IMDSM04 provide?
A8: It provides 150 V RMS isolation channel-to-channel and 350 V RMS between input and logic circuits.

ABB Bailey Digital Slave Input/Output Module IMDSM04 Infi 90
