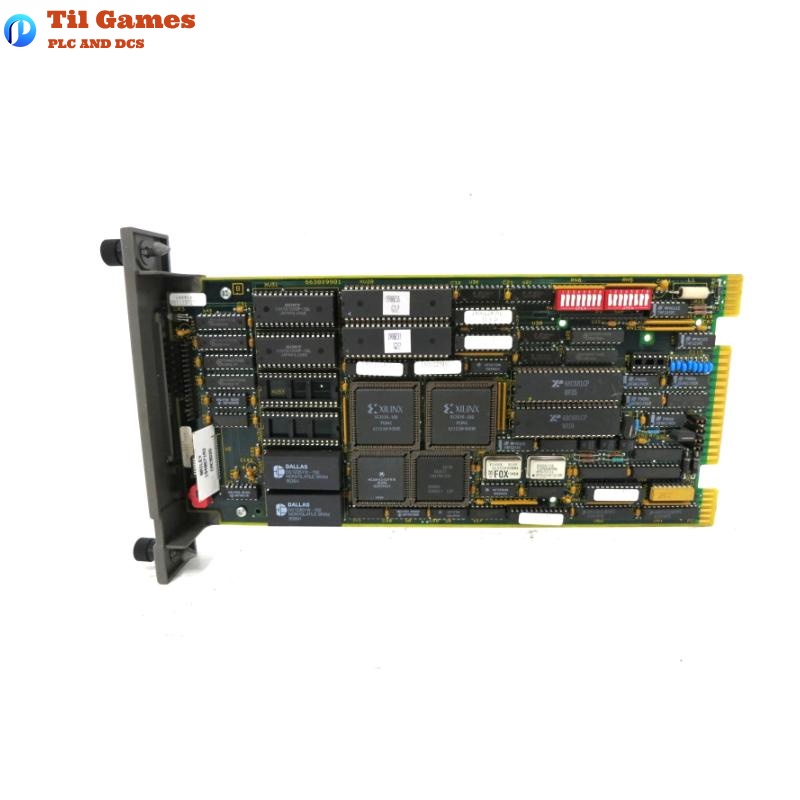

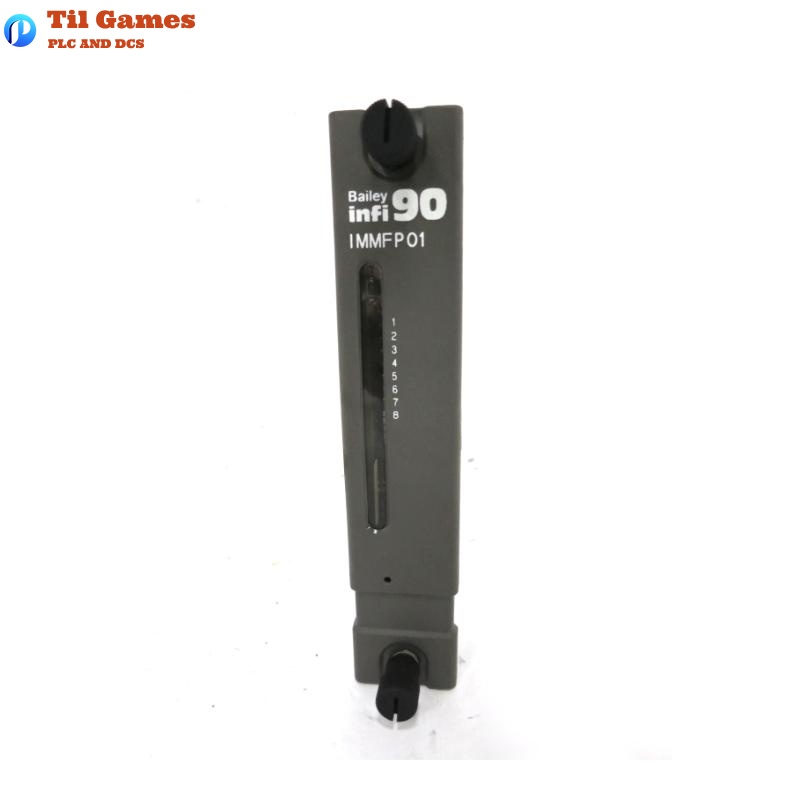

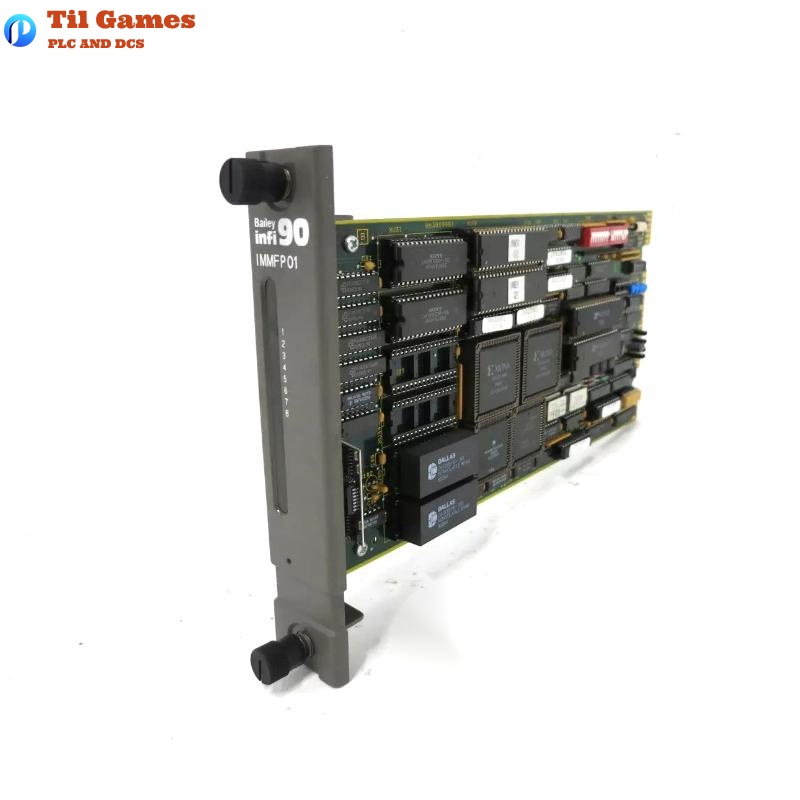

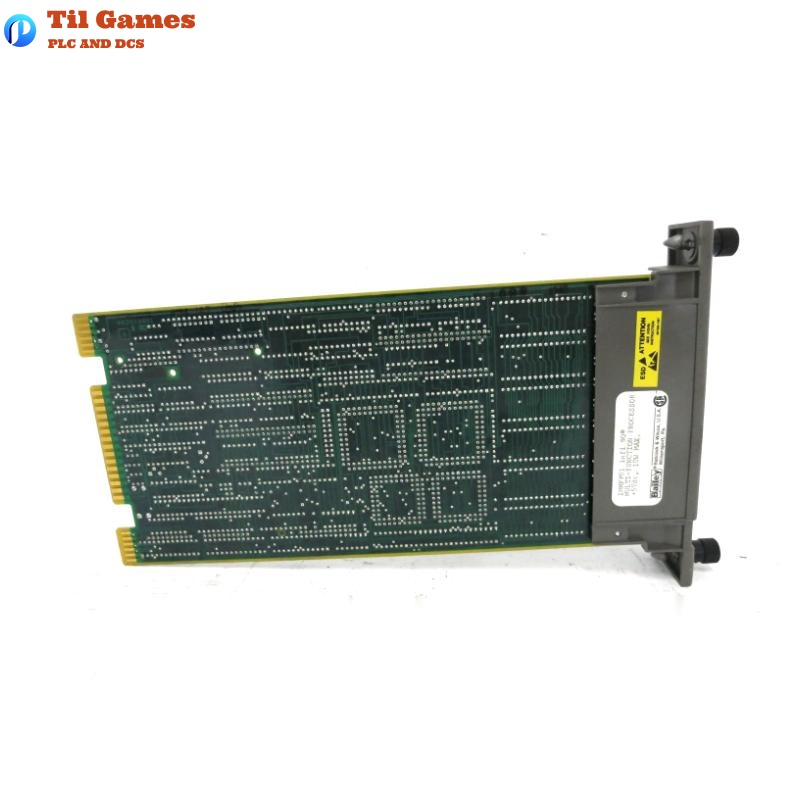

ABB Bailey IMMFP01 Infi 90 Multi-Function Processor Module

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the IMMFP01 module?
A1: It serves as a multi-loop analog and digital controller handling control, data acquisition, and peer-to-peer communication.

Q2: How many I/O modules can IMMFP01 communicate with?
A2: It can support up to 64 analog or digital I/O modules in any combination.

Q3: What programming methods are supported by IMMFP01?
A3: IMMFP01 supports C, BASIC, BATCH, ladder logic, standard function codes, and user-defined functions.

Q4: What happens if the primary IMMFP01 module fails in a redundant system?
A4: The secondary module takes control automatically with a bumpless transfer via a 1 Mbaud redundancy link.

Q5: Can IMMFP01 be used in hazardous environments?
A5: Yes, it is certified for use in Class I, Division 2 environments.

Q6: How do I reset the IMMFP01 module?
A6: Use the stop/reset button on the front panel; press once to stop, press again to reset.

Q7: What does a red status LED indicate?
A7: It indicates a fatal error detected by the diagnostics. The CPU LEDs will show the error code.

Q8: Can IMMFP01 retain configuration after power loss?
A8: Yes, it uses battery-backed NVRAM to retain configuration data.
