ABB Bailey IMMFP12 Infi 90 Multi-Function Processor Module

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the IMMFP12 module?
A1: It is a multifunction processor used for complex control strategies, data acquisition, and peer-to-peer communications in the INFI 90 OPEN system.

Q2: How many modules can IMMFP12 communicate with?
A2: It supports communication with up to 64 I/O modules in any combination of analog and digital types.

Q3: What happens if the primary IMMFP12 fails in a redundant system?
A3: The backup IMMFP12 takes control immediately through a 1 Mbaud redundancy link, ensuring a seamless transition.

Q4: Which programming methods are supported by IMMFP12?
A4: It supports programming via C, BASIC, BATCH, ladder logic, and function codes.

Q5: How is redundancy configured between two IMMFP12 modules?
A5: Through a dedicated serial redundancy link. Both modules must use identical firmware versions.

Q6: Can the IMMFP12 be hot-swapped?
A6: Yes, but the STOP/RESET button must be pressed before removal to ensure safe handover in redundant setups.

Q7: What diagnostic information is available if there’s a fault?

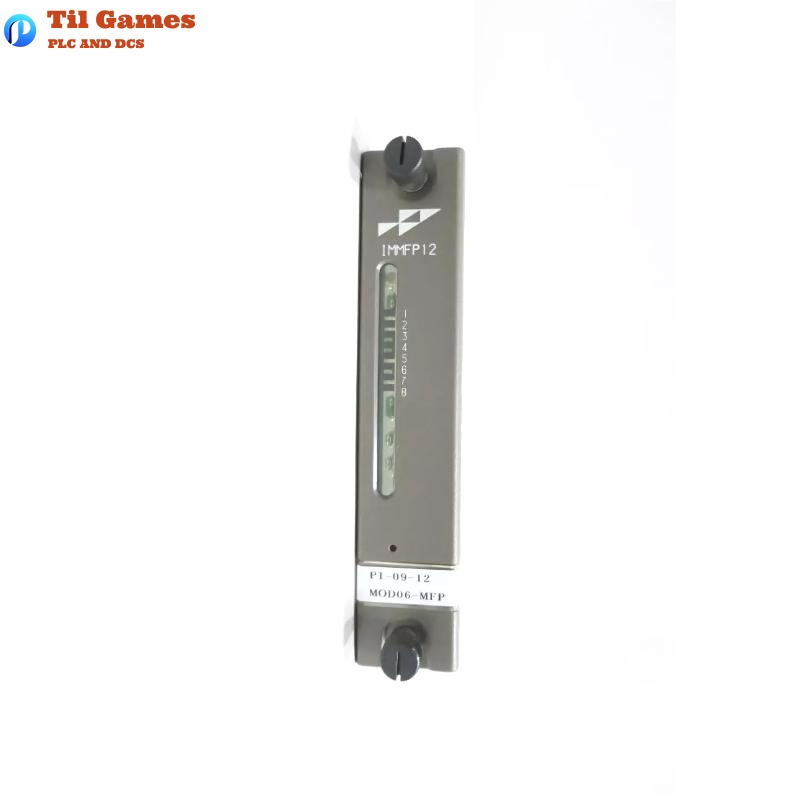

A7: Error codes are displayed through LEDs 1–8. The combination indicates specific issues, such as NVRAM errors or bus faults.

Q8: Is the module compatible with both Plant Loop and INFI-NET?
A8: Yes, but the configuration must be initialized specifically for the selected environment.
