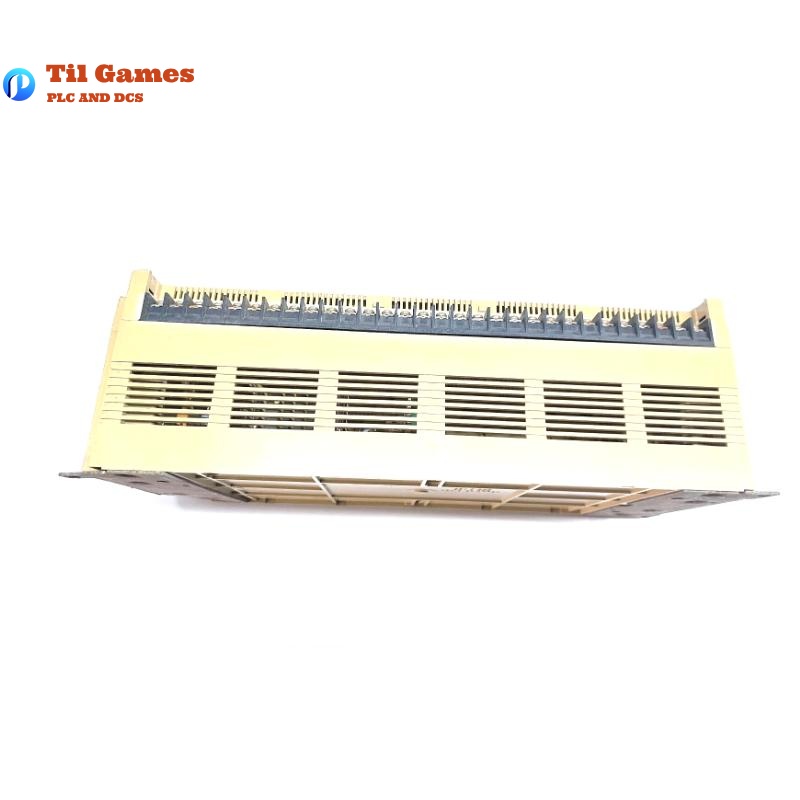

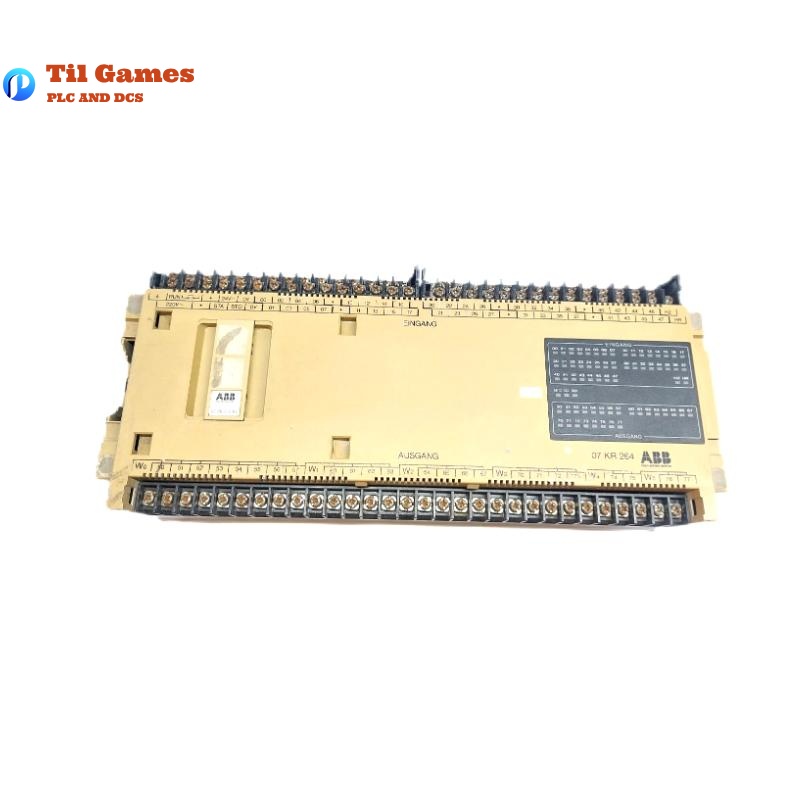

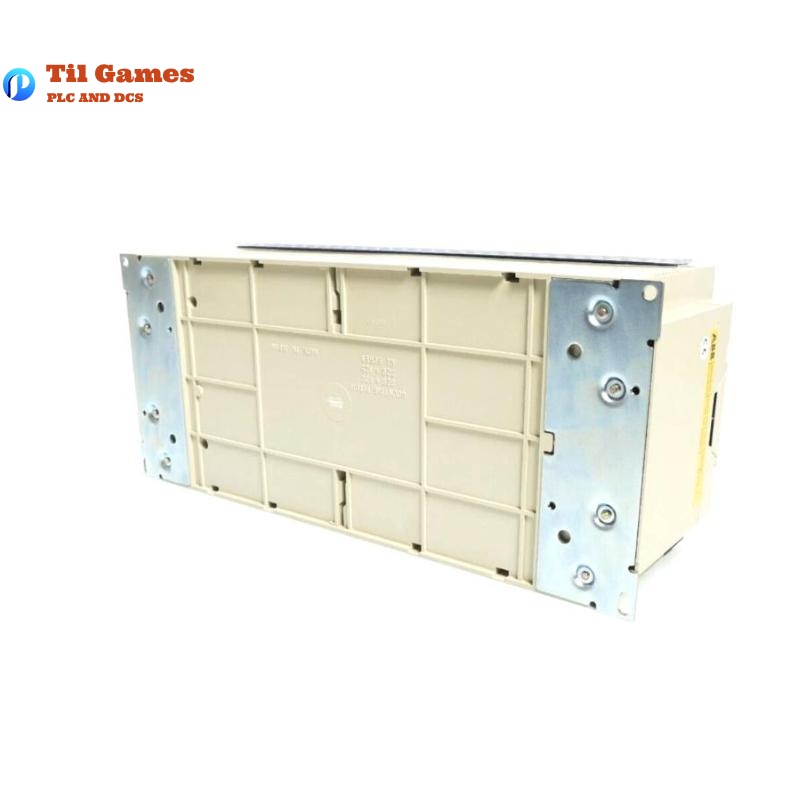

ABB 07KR264DR1 07KR264B GJV3072403R1 Procontic K200 Configuration Unit

Frequently Asked Questions (FAQ)

Q1: What is the maximum I/O capacity supported by this unit?
A1: It supports up to 64 I/O points (40 inputs and 24 outputs).

Q2: What is the output current rating for the relay contacts?
A2: Maximum 2 A at 230V AC (cosφ=1), or 1 A for DC/inductive loads.

Q3: Does this unit support high-speed counting?
A3: Yes, it features a 10 kHz BCD high-speed counter with 4-digit resolution.

Q4: What programming tools are compatible?
A4: Compatible with ABB’s 07 PG 200/201 units or IBM-compatible PCs.

Q5: Are the inputs optically isolated?
A5: Yes, inputs are optocoupler-isolated for enhanced electrical safety.

Q6: What power supplies are required?
A6: 230V AC main supply and internal 24V DC input supply (0.4 A max).

Q7: What type of output does it use?
A7: It uses relay-type outputs suitable for both AC and DC loads.

Q8: Is there a shock-resistant version available?
A8: The standard version is not specified for shock resistance; for enhanced vibration environments, use the R2/R21 versions.

07KR264B 07KR264DR1 ABB GJV3072403R1 Procontic K200 Configuration Unit
