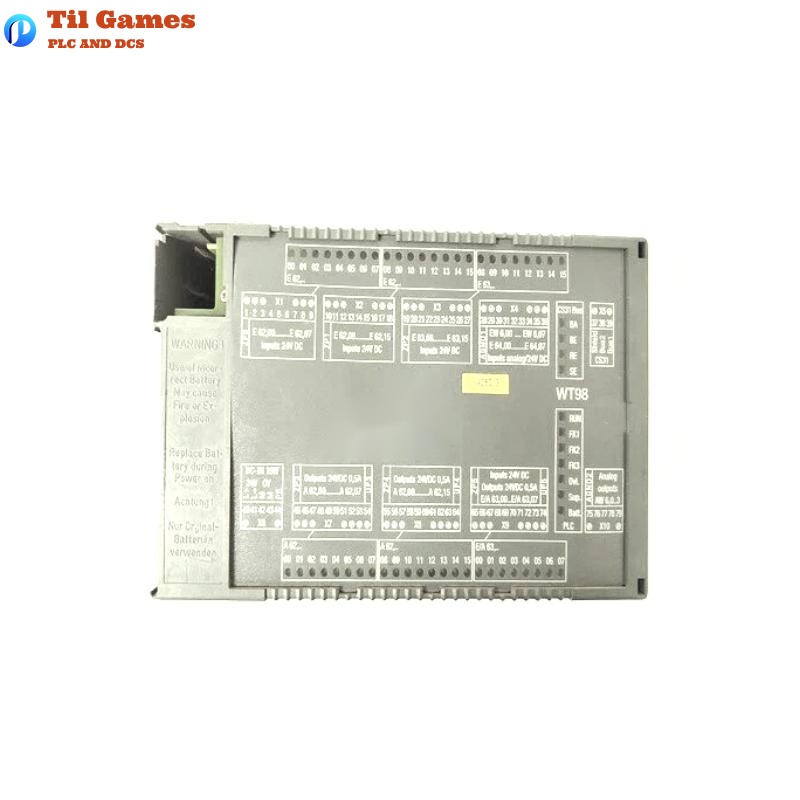

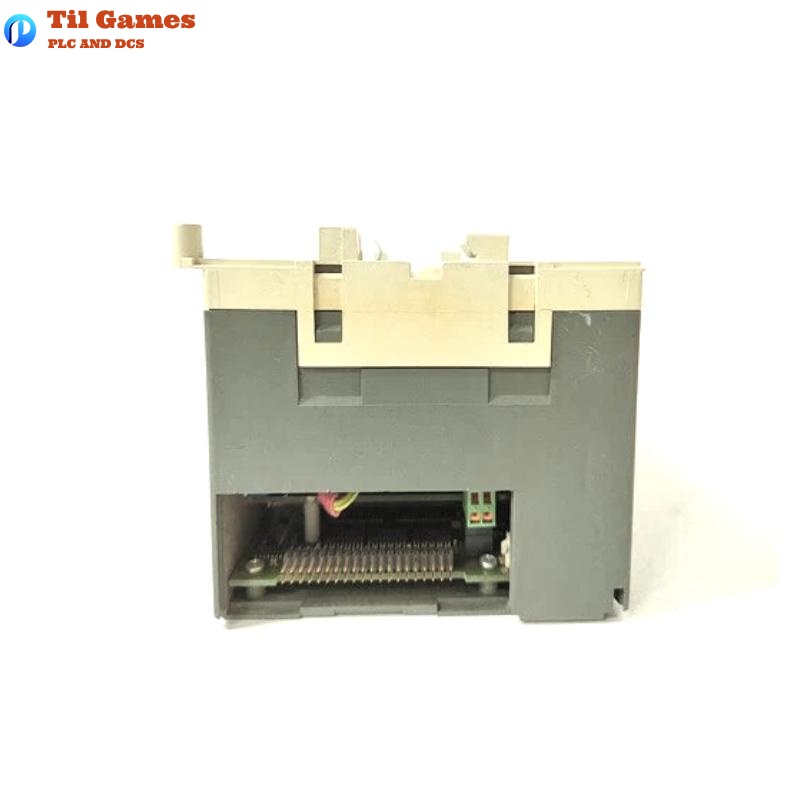

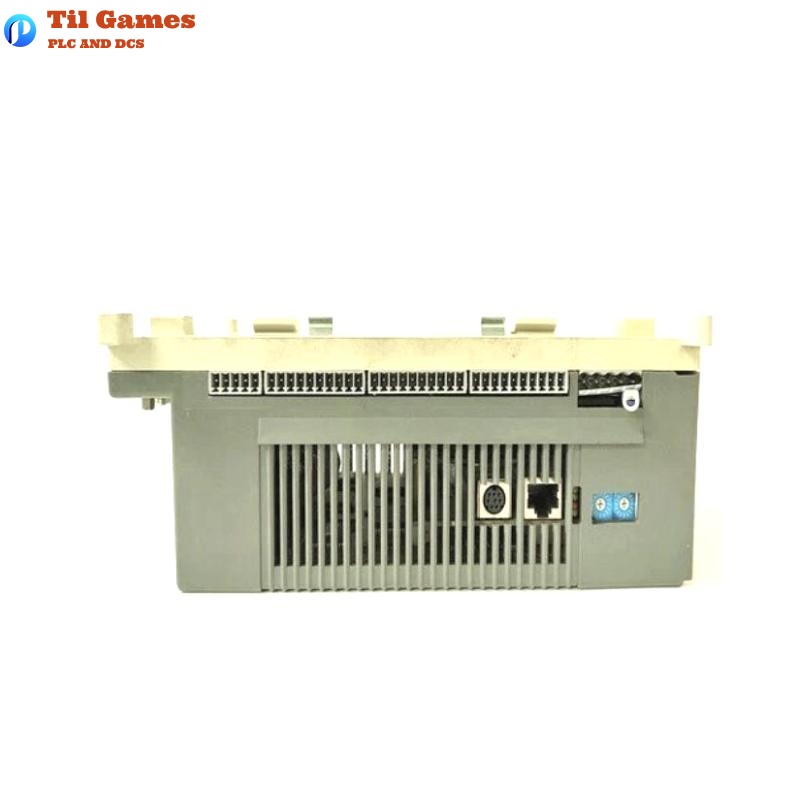

ABB 07KT98 GJR5253100R4278 Advant Controller 31 Basic Unit

Frequently Asked Questions (FAQ)

Q1: What communication protocols does the 07KT98 support?
A1: It supports Modbus, CS31, PROFIBUS-DP, ARCNET, CANopen, and Ethernet.

Q2: Does it support high-speed counting?
A2: Yes, it has a built-in high-speed counter supporting up to 50 kHz with 7 modes.

Q3: What signal types are supported by the analog inputs?
A3: Supports 0…10V, ±10V, 0…20mA, 4…20mA, and Pt100 (2-wire or 3-wire).

Q4: Are the digital outputs protected?
A4: Yes, digital outputs are protected against short-circuits and overloads.

Q5: Does the unit offer data retention after power loss?
A5: Yes, with integrated lithium battery (07 LE 90) and Flash EPROM.

Q6: Can analog inputs be configured as digital inputs?
A6: Yes, analog inputs can be used as digital inputs.

Q7: Can the controller be used as master or slave?
A7: Yes, it can function as a standalone unit, master, or slave in CS31.

Q8: What versions of programming software are supported?
A8: It supports 907 AC 1131 software version V4.1 or later, depending on the interface.

07KT98 ABB Advant Controller 31 Basic Unit GJR5253100R4278
