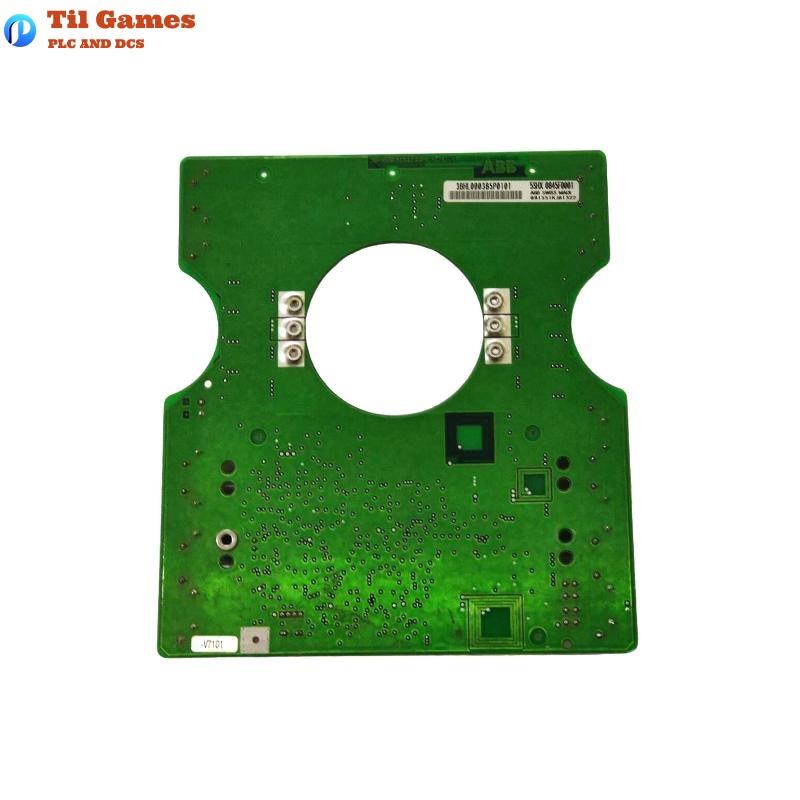

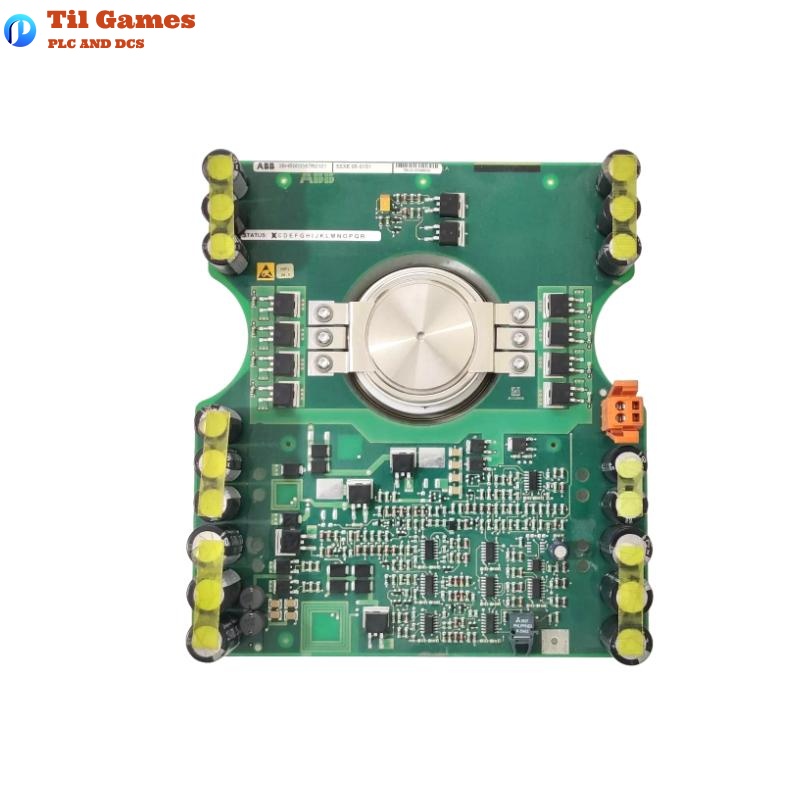

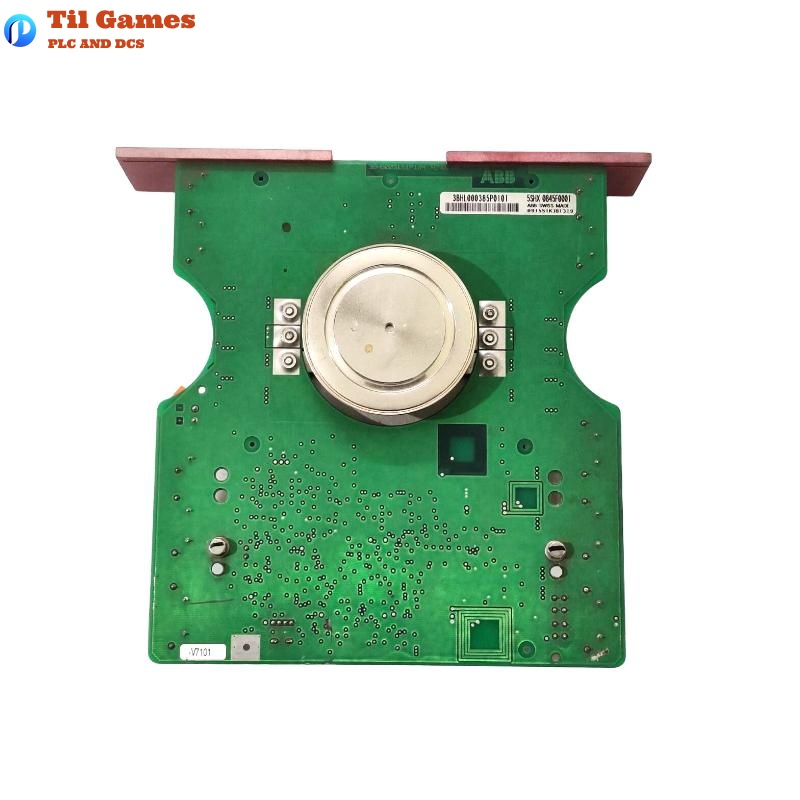

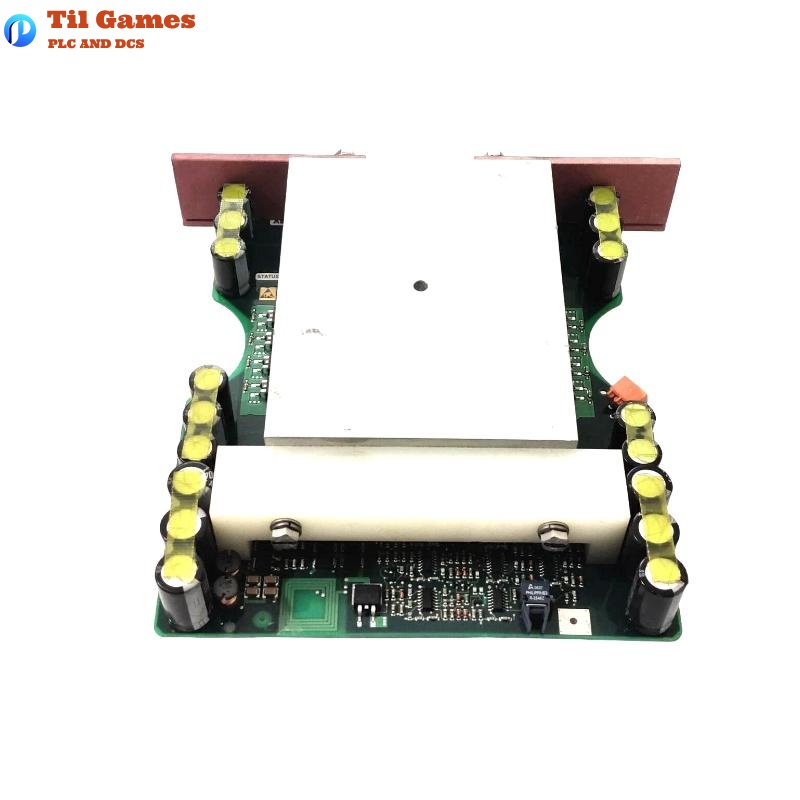

ABB 5SHX0845F0001 3BHL000385P0101 IGCT Module

FAQ

Q1: What type of device is the ABB 5SHX0845F0001?
A1: It is an IGCT (Integrated Gate-Commutated Thyristor) module designed for high-power switching applications.

Q2: What is its maximum working voltage?
A2: The module has a repetitive peak off-state voltage of 4500V and peak forward/reverse voltages of 5400V.

Q3: What is the rated current of this module?
A3: It supports a maximum on-state current of 4000A, suitable for high-current industrial applications.

Q4: In what applications is the IGCT module commonly used?
A4: It is widely used in medium/high voltage drives, grid converters, traction systems, and industrial power supplies.

Q5: What is the cooling method for the module?
A5: The module utilizes forced air cooling for thermal management.

Q6: What is its typical power dissipation?
A6: The typical power loss is around 250W depending on frequency and load.

Q7: What are the dimensions and weight of the module?
A7: It measures 128 × 115 × 65 mm and weighs 1.2kg.

Q8: What are the advantages of IGCT over traditional GTOs?
A8: IGCTs offer faster switching, lower losses, simpler control, and higher reliability in high-power applications.
