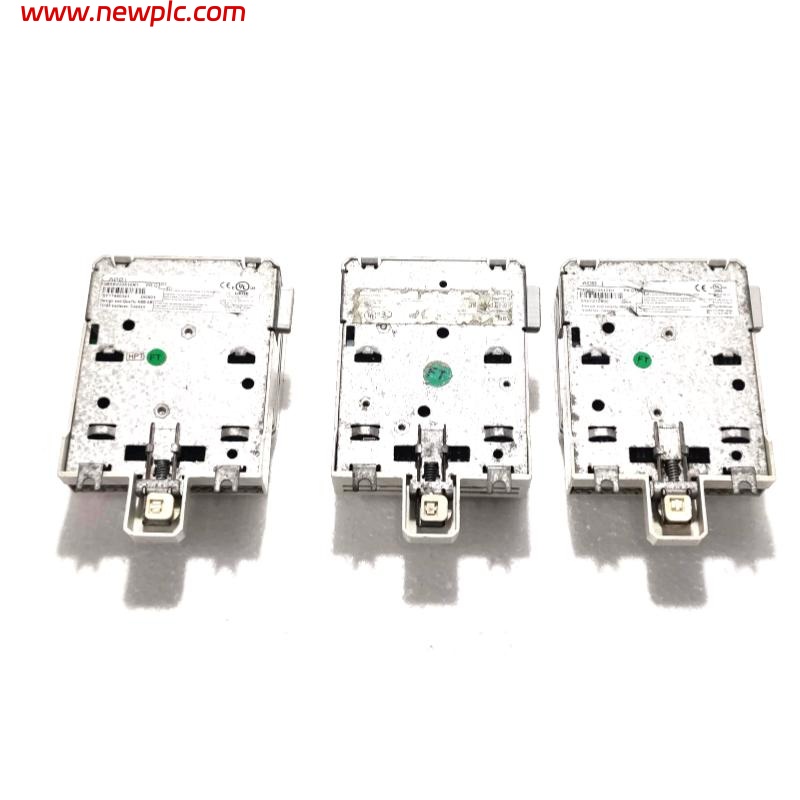

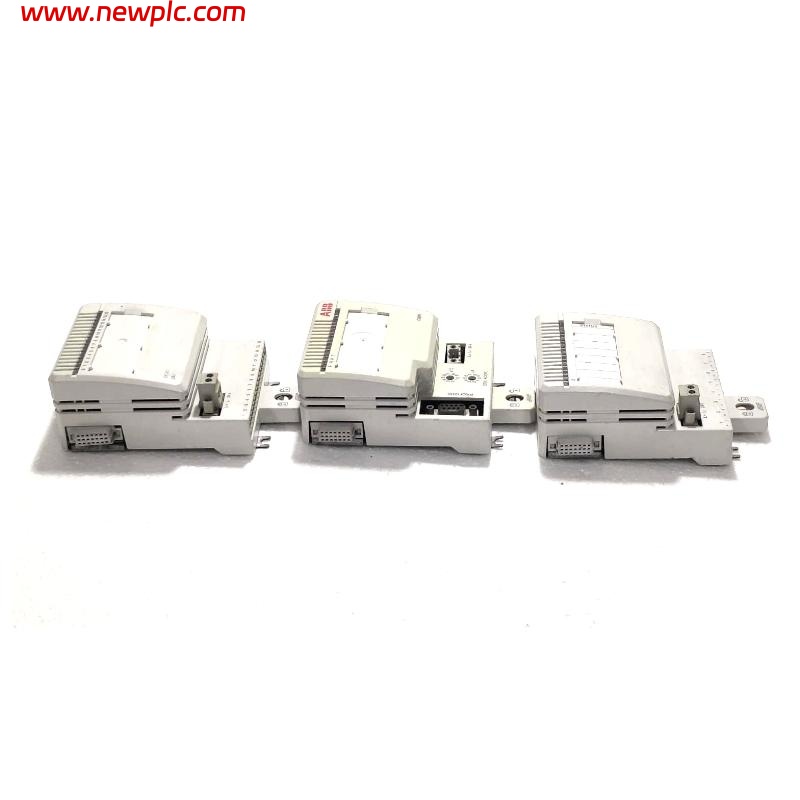

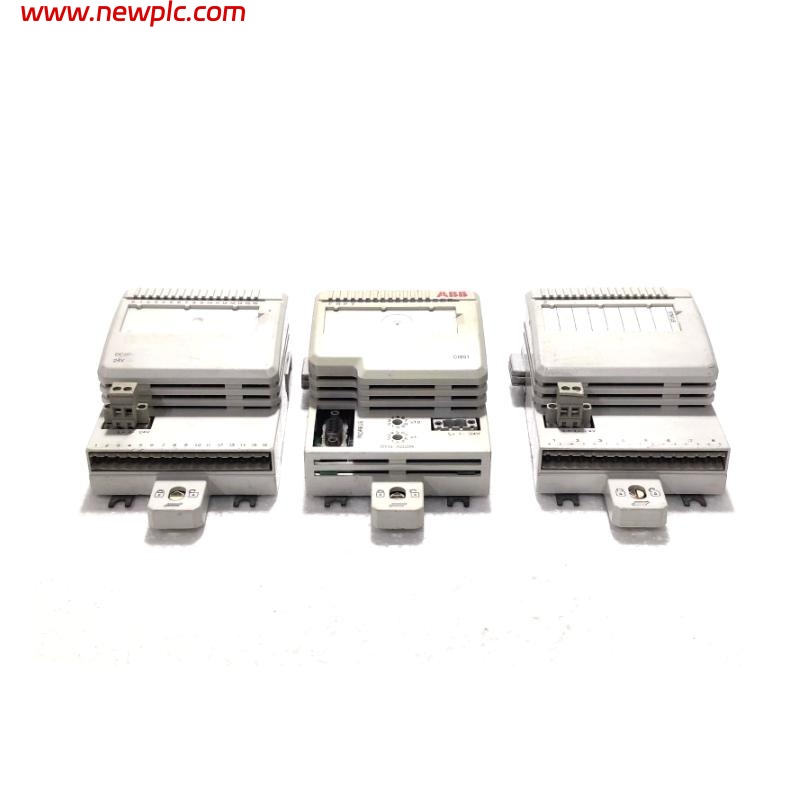

ABB CI801-eA 3BSE022366R2 S800 I/O Fieldbus Communication Interface Module

FAQ

Q1: What communication protocol does the CI801-eA support?
A1: The CI801-eA supports the PROFIBUS DP-V1 communication protocol.

Q2: Can the CI801-eA operate in redundant configurations?
A2: No, the CI801-eA is designed for non-redundant operation. For redundancy, ABB recommends the CI840A-eA.

Q3: Which systems is the CI801-eA compatible with?
A3: It is compatible with ABB S800 I/O systems and Freelance Distributed Control Systems (DCS).

Q4: What is included with the CI801-eA module?
A4: The module comes with one power supply connector and one TB807 ModuleBus terminator.

Q5: Are there any I/O modules not supported by CI801-eA?
A5: Yes, it does not support DI830, DI831, DI885, AI880A, DI880, and DO880 modules.

Q6: How deep is the installation space required for the CI801-eA?
A6: The CI801-eA requires an installation depth of 59 mm.

Q7: Does the CI801-eA comply with harsh environment standards?
A7: Yes, it complies with G3 severity level ISA-S71.04 standards for process measurement and control systems.

Q8: What are the physical dimensions and weight of the CI801-eA?
A8: The dimensions are 85.8 × 136 × 58.5 mm, and it weighs 0.3 kg.

3BSE022366R2 ABB CI801-eA Fieldbus Communication Interface Module S800 I/O

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
