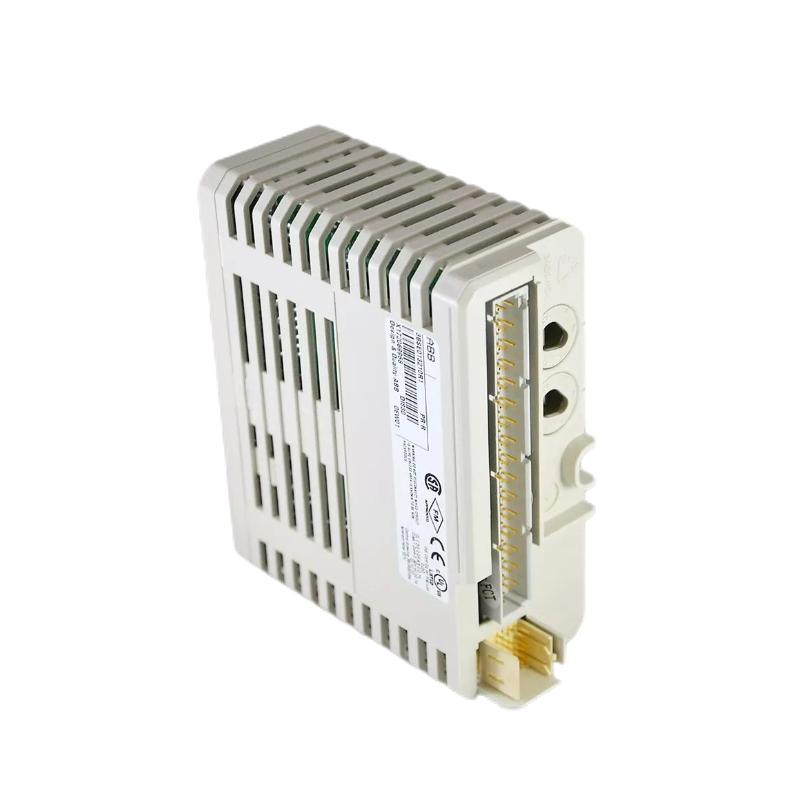

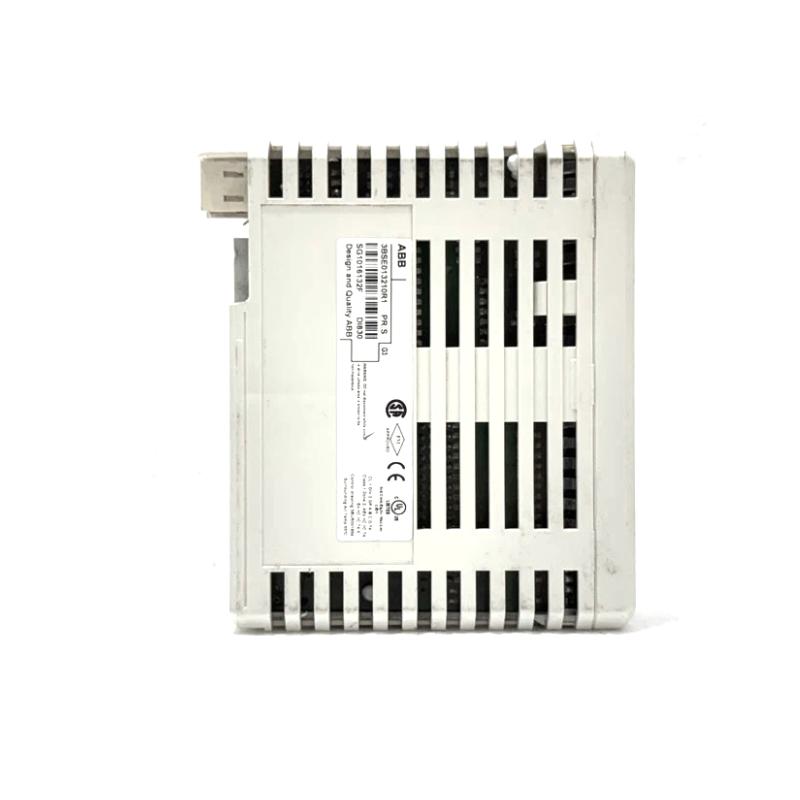

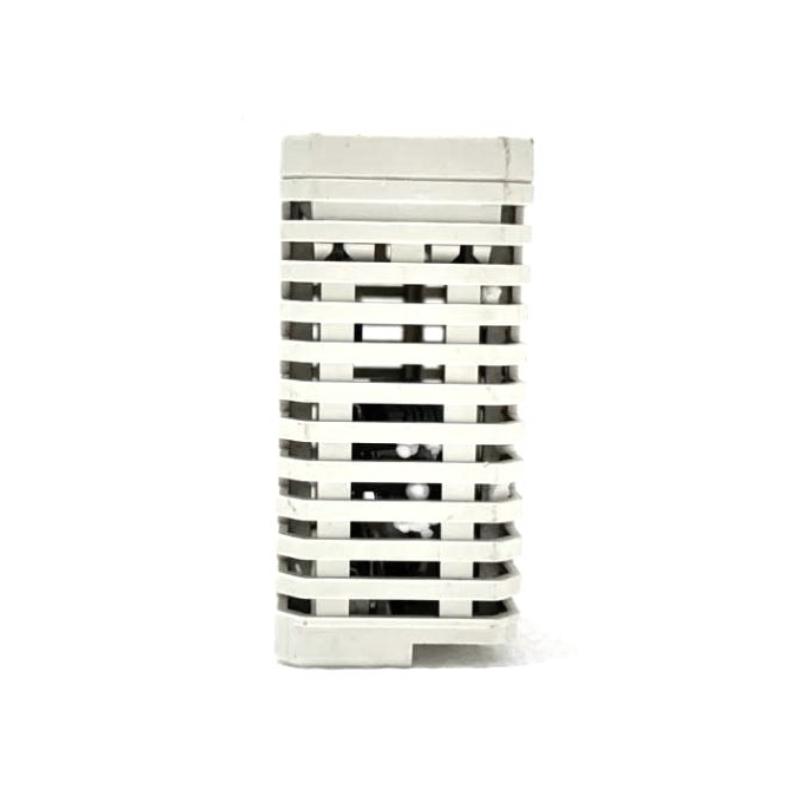

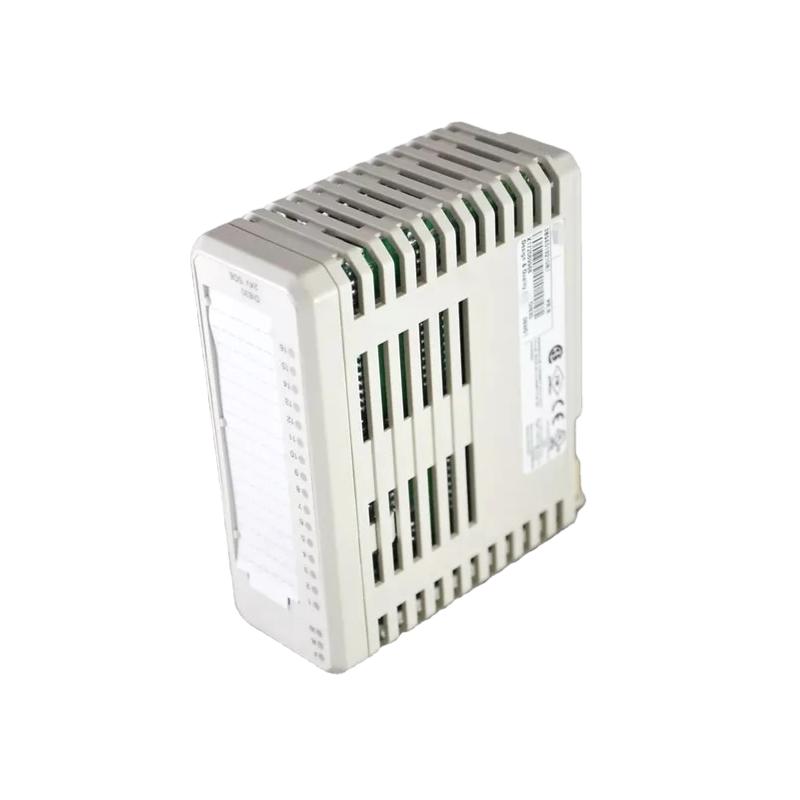

ABB DI830 3BSE013210R1 S800 I/O Systems Digital Input Module

Frequently Asked Questions (FAQ)

Q1: How many input channels does the DI830 support?
A1: It supports 16 digital input channels grouped in 2 isolated groups of 8.

Q2: What is the signal type accepted by the module?
A2: It accepts 24V DC current sinking digital inputs.

Q3: Does the module support redundancy or intrinsic safety?
A3: No, the DI830 does not support redundancy or intrinsic safety.

Q4: Is Sequence of Events (SOE) functionality available?
A4: Yes, it supports SOE with a timestamp accuracy of -0.3 to +0.7 ms.

Q5: What is the operating temperature range of DI830?
A5: The operating temperature is 0°C to +55°C.

Q6: What diagnostics features are available in the module?
A6: Includes process voltage supervision, full event queue, and time sync missing.

Q7: What is the maximum supported cable length?
A7: Maximum cable length is 600 meters for field signal connections.

Q8: Which terminal units are compatible with the DI830?
A8: Compatible with TU810, TU812, TU814, TU818, TU830, TU833, TU838, and TU850.

3BSE013210R1 ABB DI830 Digital Input Module S800 I/O Systems
