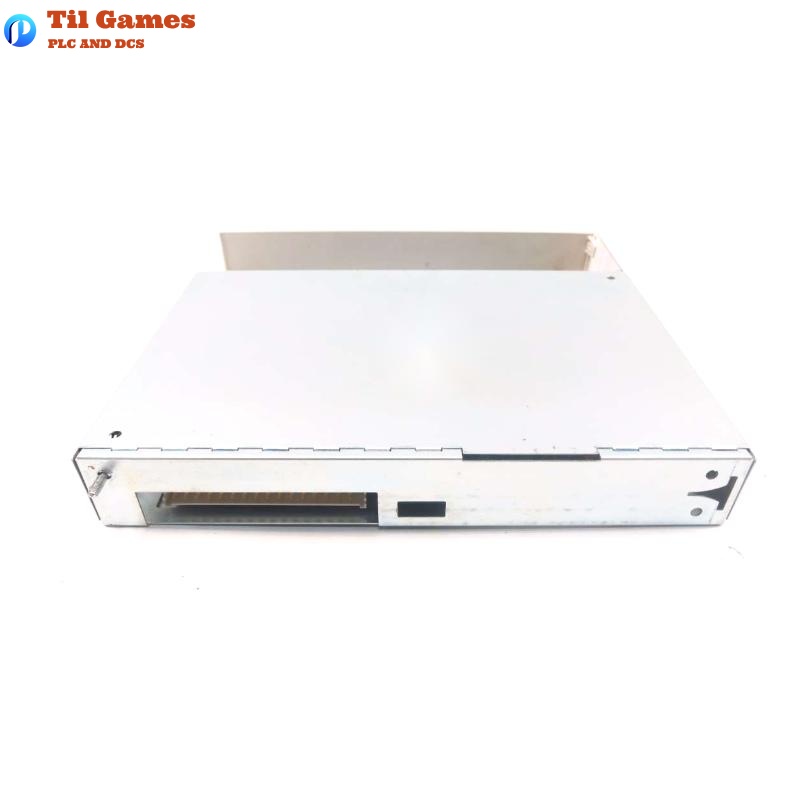

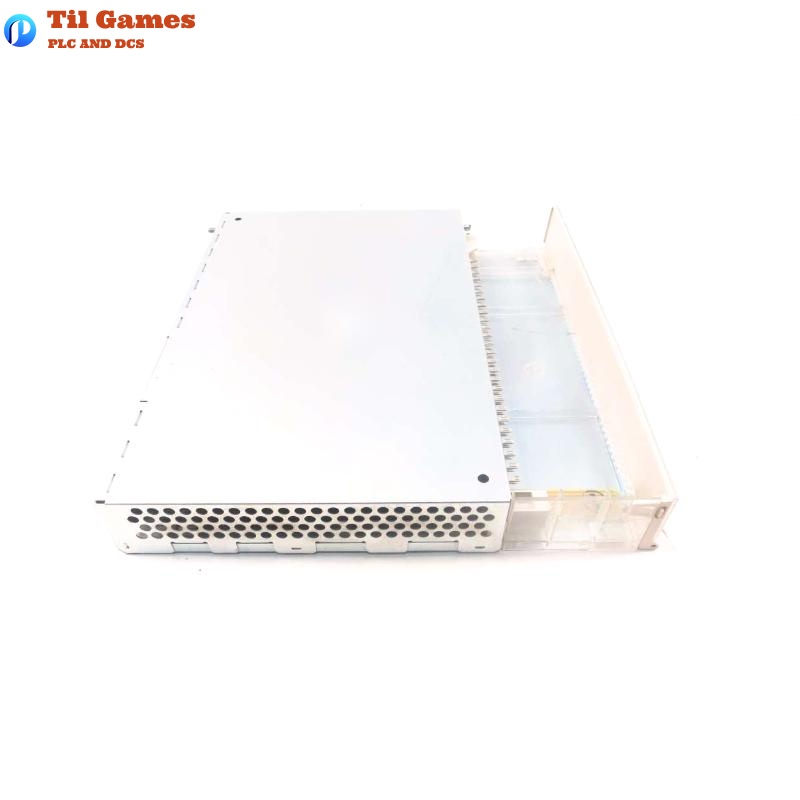

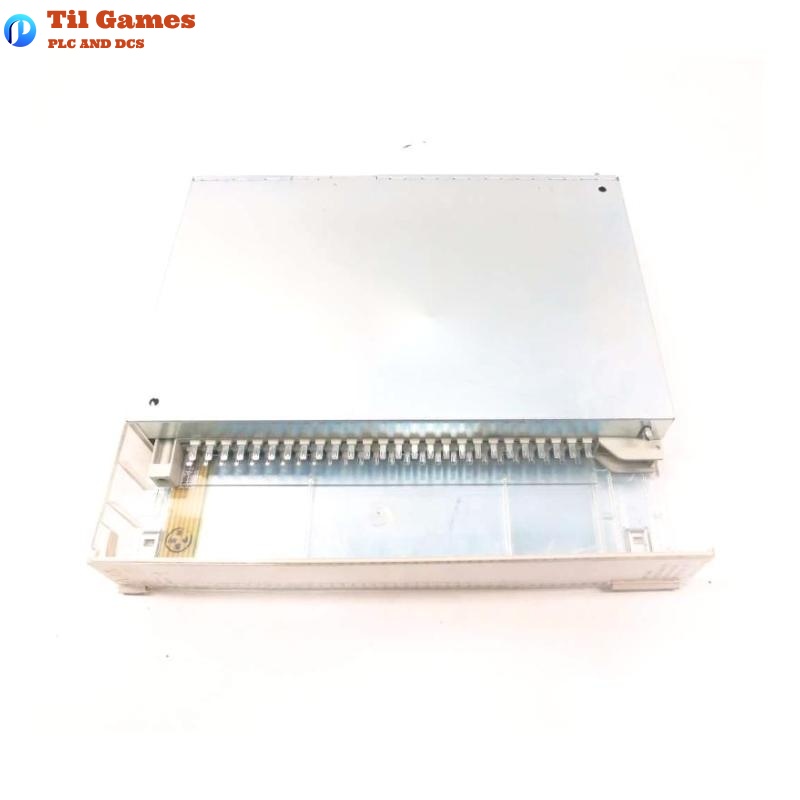

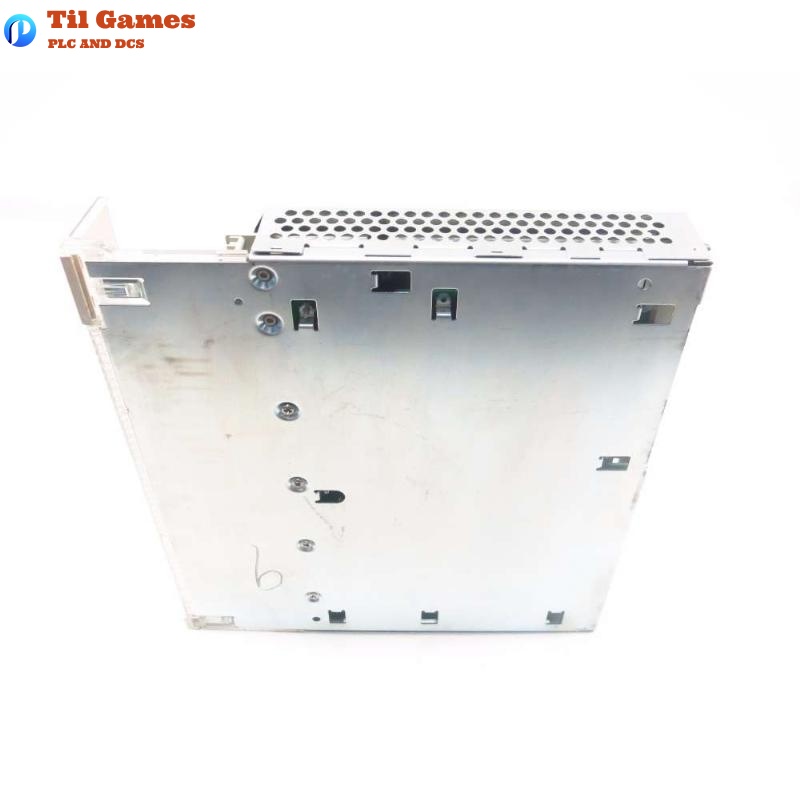

ABB DP640 3BHT300057R1 Rotational Speed Meter Module

Frequently Asked Questions (FAQ)

Q1: What is the maximum input frequency supported by the DP640 module?
A1: It supports a maximum speed meter input frequency of 50 kHz.

Q2: What are the input voltage and current specifications?
A2: The module accepts 24 V DC or 5 V DC input, with a current range of ±13 mA.

Q3: Can the module detect rotation direction?
A3: Yes, direction detection is enabled through a second speed meter input.

Q4: Does the module support overspeed trip functionality?
A4: Yes, the module includes built-in overspeed trip logic.

Q5: How is the trip signal output provided?
A5: The trip signal is output via 24 V DC solid-state or 60 V DC dry contact.

Q6: Are the inputs and outputs electrically isolated?
A6: All speed meter inputs and the solid-state output are opto-isolated.

Q7: What are the physical dimensions of the module?
A7: The dimensions are 252 x 273 x 40 mm.

Q8: What is the weight of the module?
A8: The module weighs 1.33 kg.

3BHT300057R1 ABB DP640 Rotational Speed Meter Module
