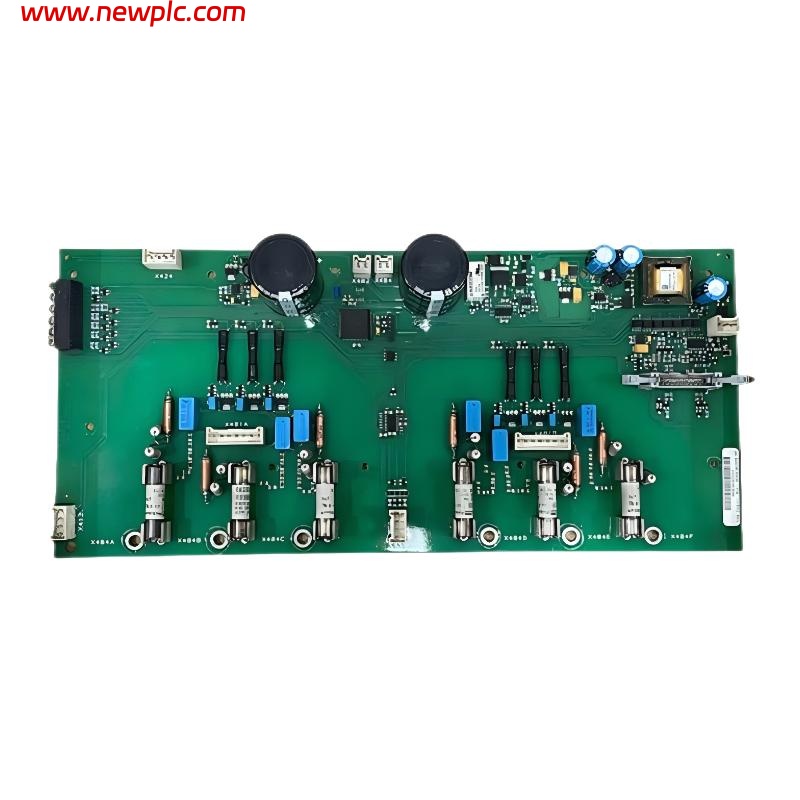

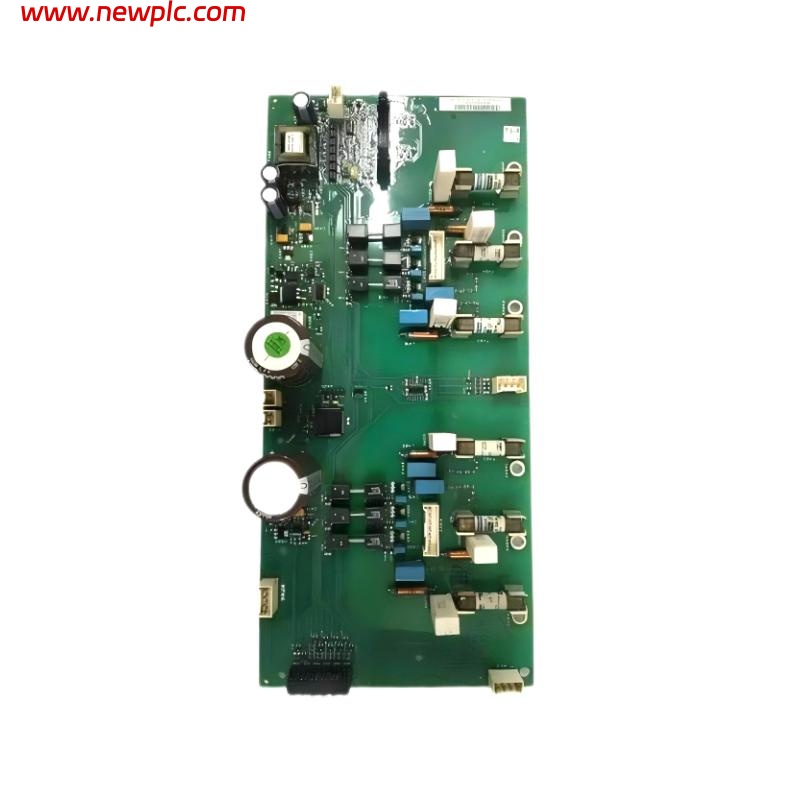

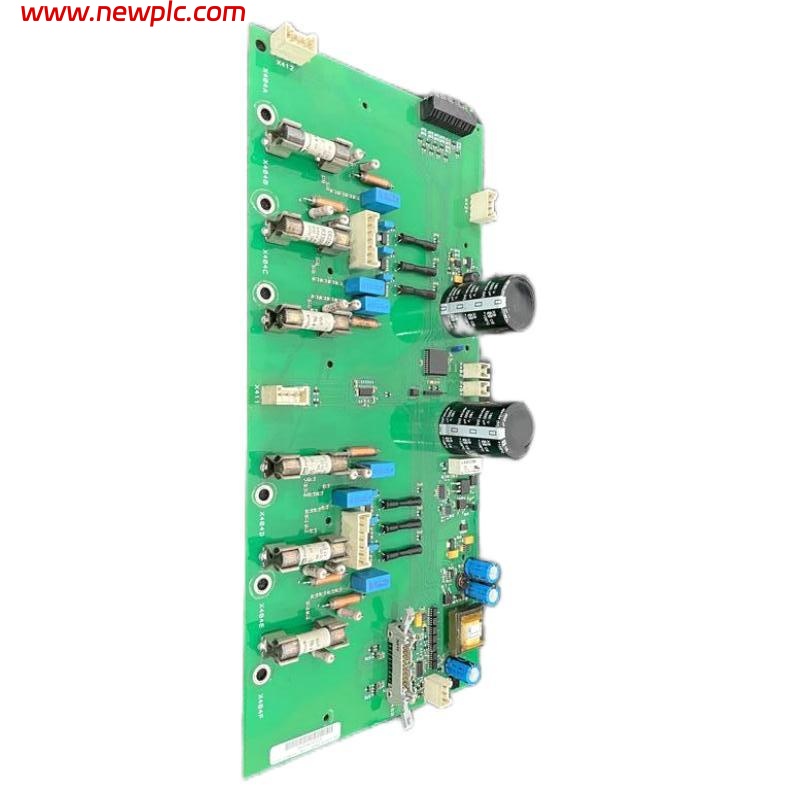

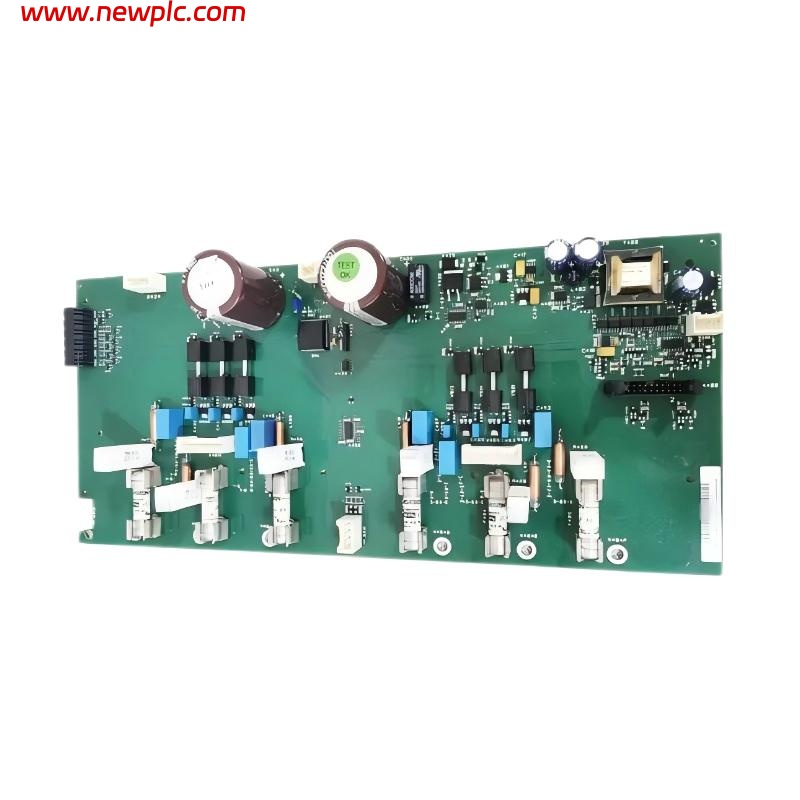

ABB DSAB-02C Diode Connection Board

FAQ

• Q: What is the primary function of the DSAB-02C board?
  A: It connects multiple diode circuits to the main control module, managing DC current paths.

• Q: What is the maximum voltage rating?
  A: It supports up to 600 V DC.

• Q: What is the typical current capacity per channel?
  A: Approximately 30 A per channel.

• Q: Is there electrical isolation between channels?
  A: Yes, it includes channel-to-channel isolation to reduce interference and reverse voltage effects.

• Q: How about the power loss level?
  A: Very low—forward voltage drop is designed to be minimal, reducing power loss.

• Q: What mounting options are supported?
  A: It can be mounted on panel or DIN-style rails for integration in control systems.

• Q: What is the operating temperature range?
  A: From −20 °C up to +60 °C for industrial environments.

• Q: What are the size and weight of the board?
  A: Dimensions are 130 × 60 × 35 mm, and it weighs about 0.31 kg—compact for installation.

ABB Diode Connection Board DSAB-02C

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
