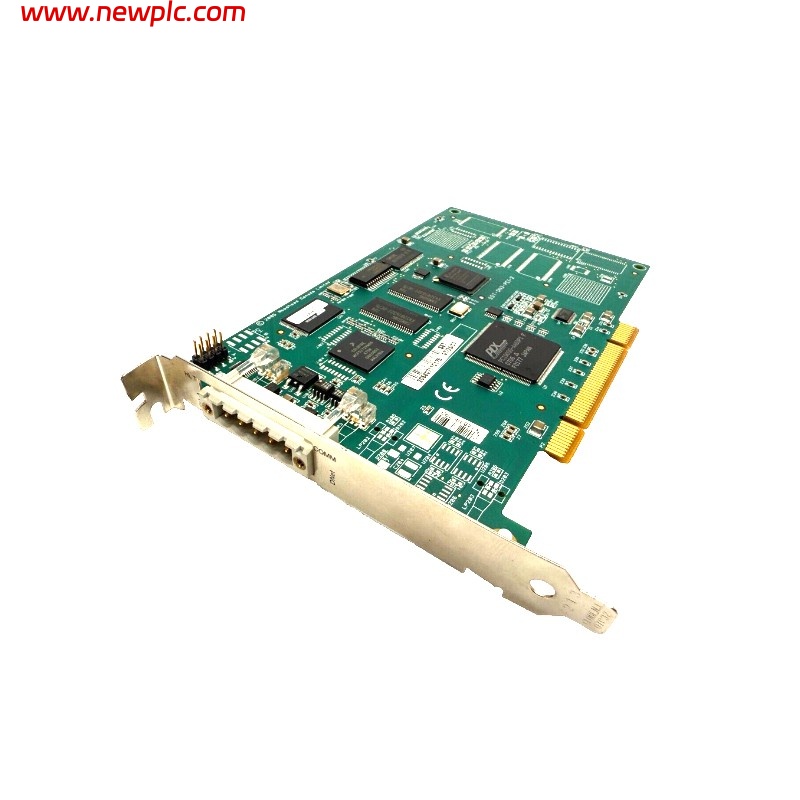

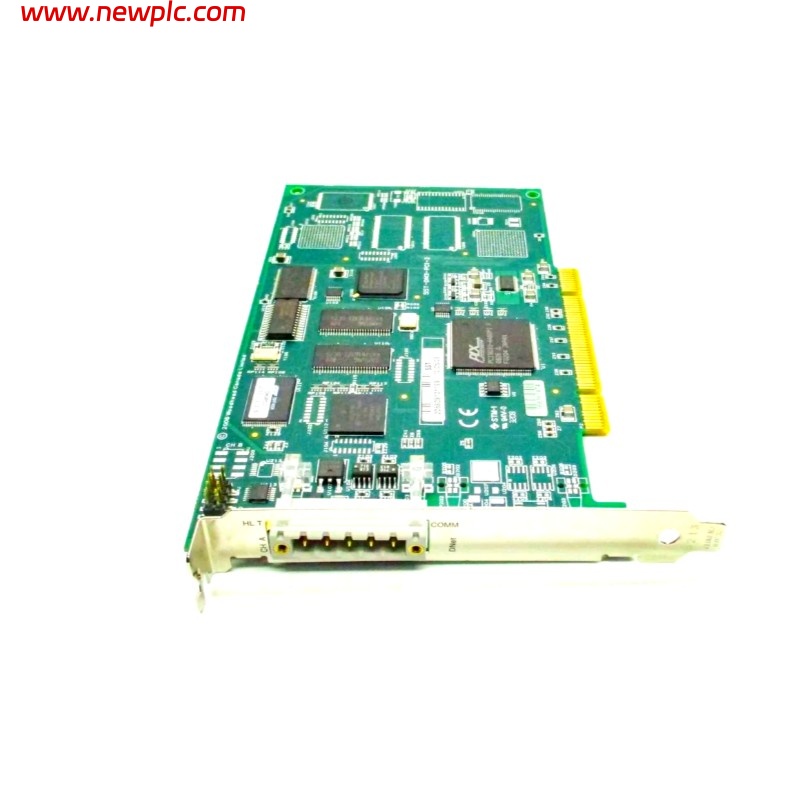

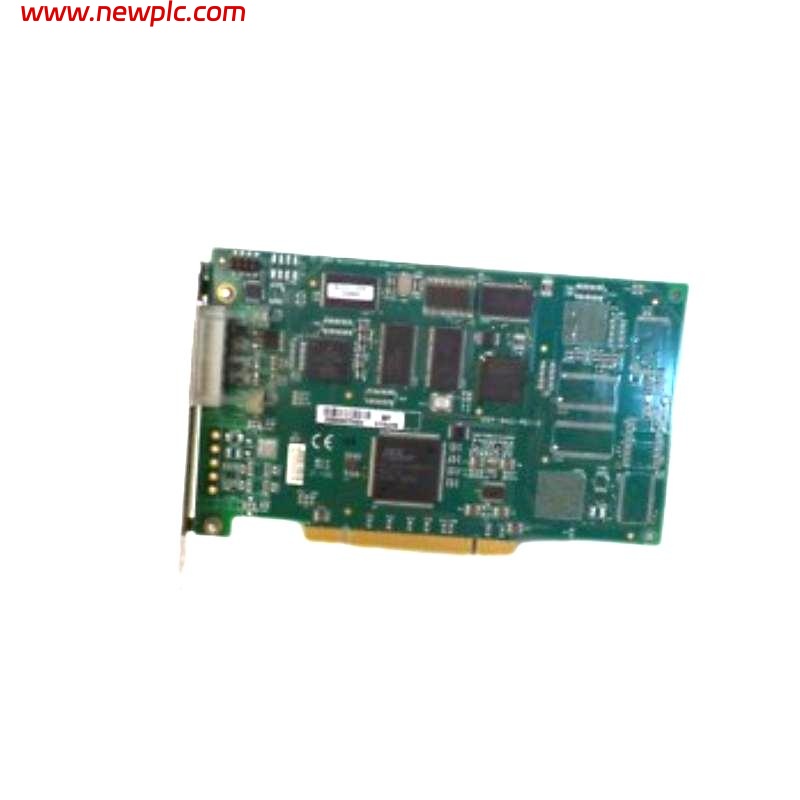

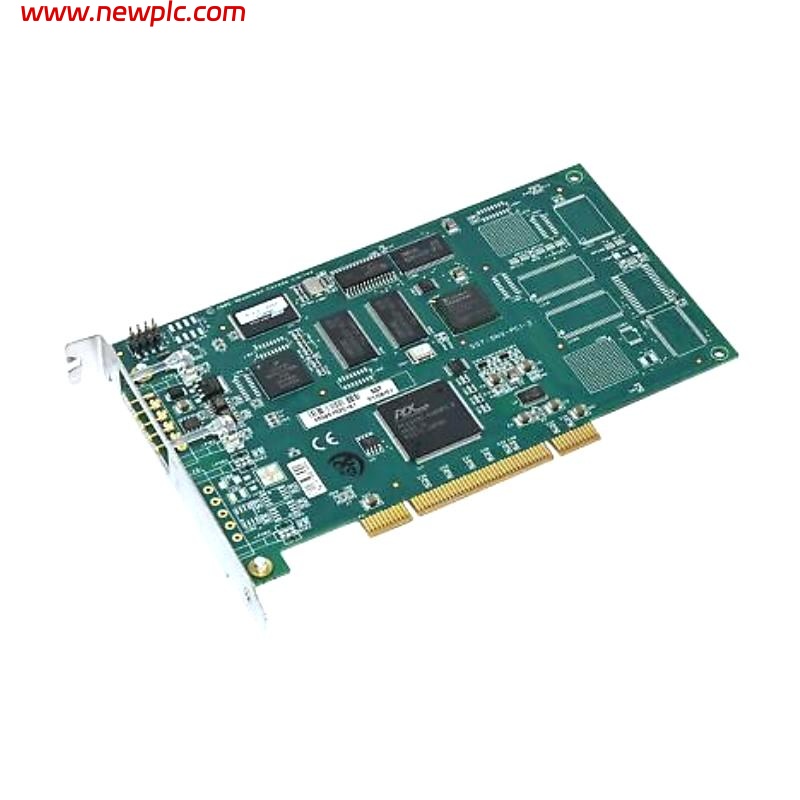

ABB DSQC 658 3HAC025779-001 Robot Control Board

FAQ

• Q1: Which ABB robots are compatible with this control board?
  A: Compatible with IRB 7600, IRB 6700, and IRB 6600 series robots.

• Q2: What is the operating voltage range?
  A: Operating voltage is 24 V DC, with a maximum input current of 5 A.

• Q3: What communication interfaces does the board provide?
  A: Provides CAN bus and EtherCAT interfaces for communication with the robot control system.

• Q4: Can this board operate in high-temperature environments?
  A: Yes, the operating temperature range is 0–50℃, with storage temperature from -20–70℃.

• Q5: Does the board have a protection rating?
  A: Yes, IP20, protecting against small solid objects but not water.

• Q6: What functions are available on the board?
  A: It controls robot motion, executes task commands, and handles data transfer and diagnostics.

• Q7: What should be considered during installation?
  A: Ensure good ventilation, avoid strong magnetic interference and liquids, and install according to dimensions and mounting holes.

• Q8: Can the board be replaced if damaged?
  A: Yes, the control board can be replaced individually without replacing the entire robot system.

3HAC025779-001 ABB ABB DSQC 658 3HAC025779-001 DSQC 658 Robot Control Board
