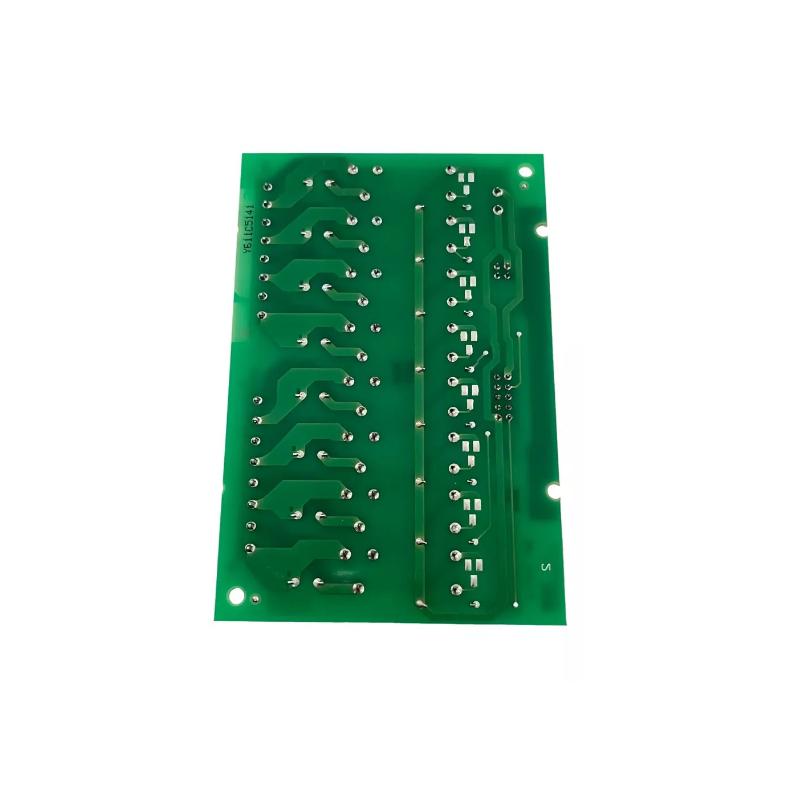

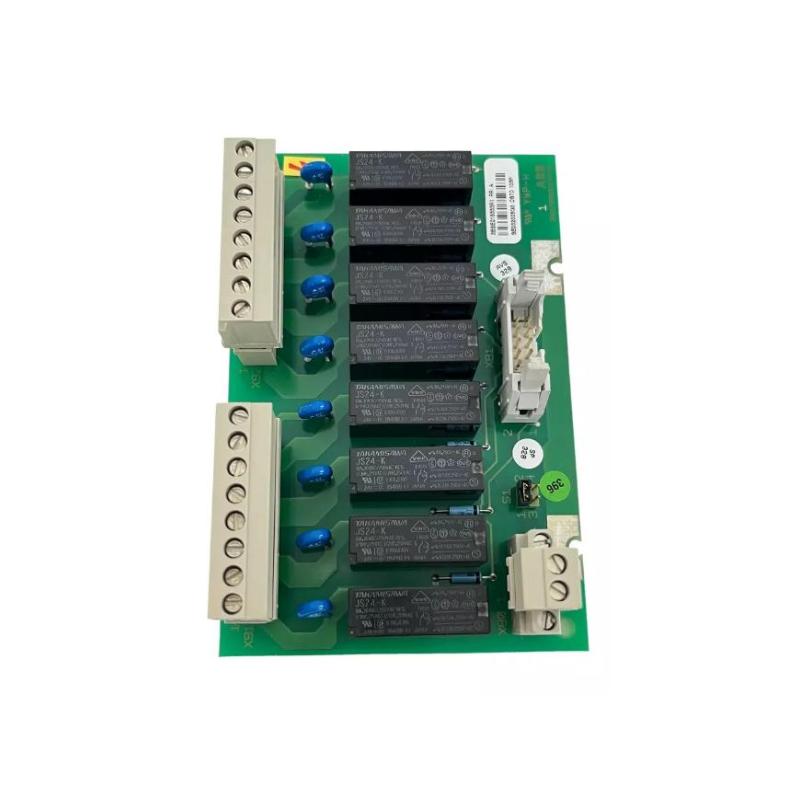

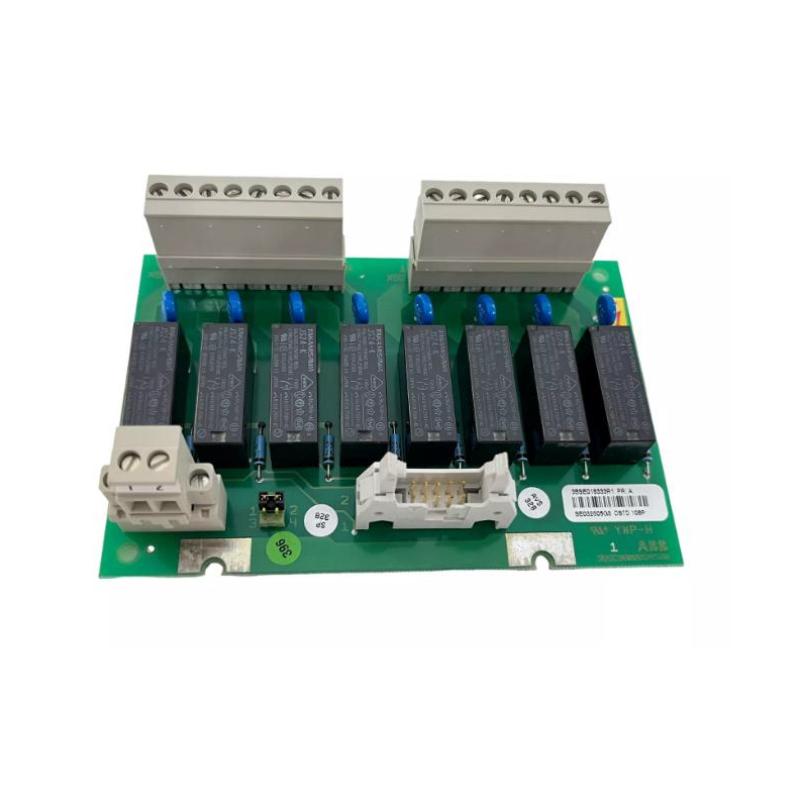

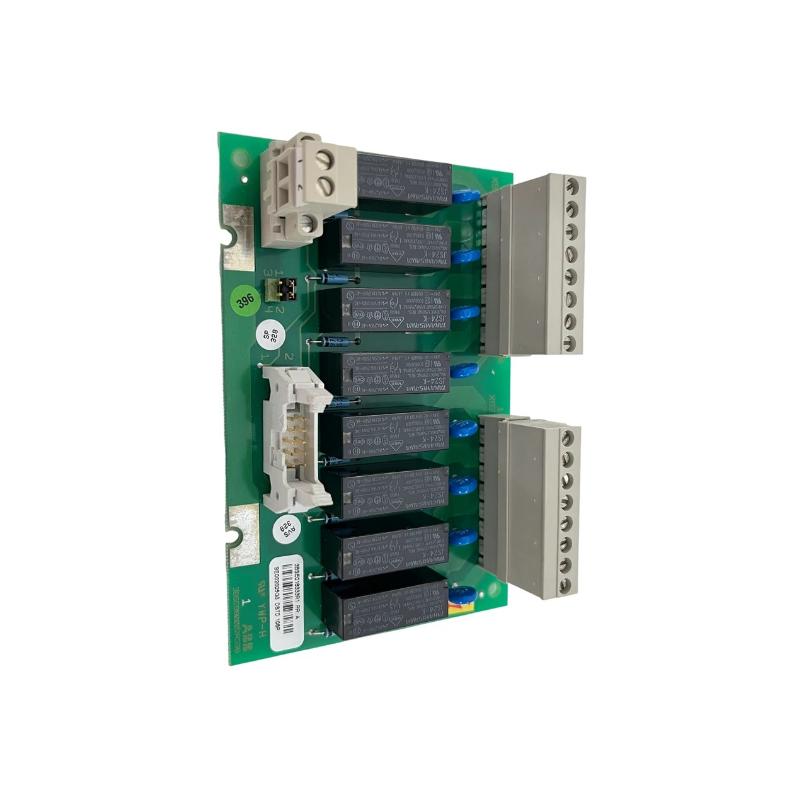

ABB DSTD 108P 3BSE018333R1 Connection Unit with 8 Relay

Frequently Asked Questions (FAQ)

Q1: What is the main function of the DSTD 108P module?
A1: The DSTD 108P serves as a connection unit with 8 relay outputs, used to interface digital output signals between the controller and field devices.

Q2: What type of output does DSTD 108P support?
A2: It uses relay contact outputs, suitable for both AC and DC voltages from 24 V to 250 V.

Q3: What is the maximum current per output channel?
A3: Each relay channel can handle up to 3 A.

Q4: Is the DSTD 108P hot-swappable during system operation?
A4: Yes, it can be replaced while the system is running without shutting down the control system.

Q5: What is the maximum switching capacity for AC and DC?
A5: Up to 720 VA for AC (cos Φ > 0.4) and up to 44 W for DC (L/R < 40 ms).

Q6: What kind of system is it compatible with?
A6: It is compatible with ABB’s S100 I/O system used in Advant Controller 400 series.

Q7: How are field devices connected to this module?
A7: Through screw terminals on the unit, typically installed at the rear of the cabinet.

Q8: What are the physical dimensions and weight of the DSTD 108P?
A8: It measures 234 x 36 x 99 mm and weighs 0.168 kg.

3BSE018333R1 ABB Connection Unit DSTD 108P with 8 Relay
