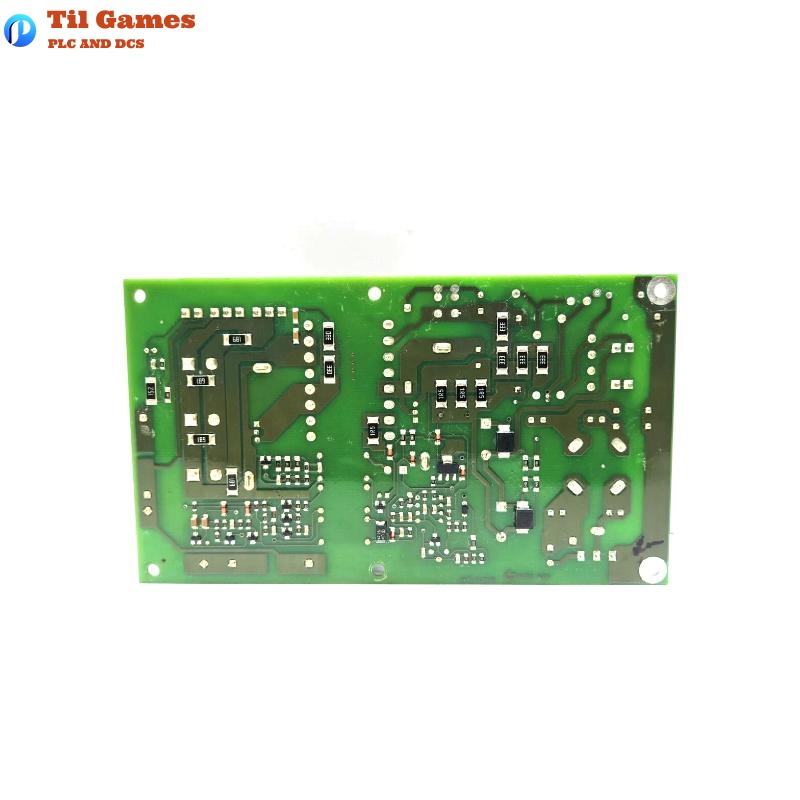

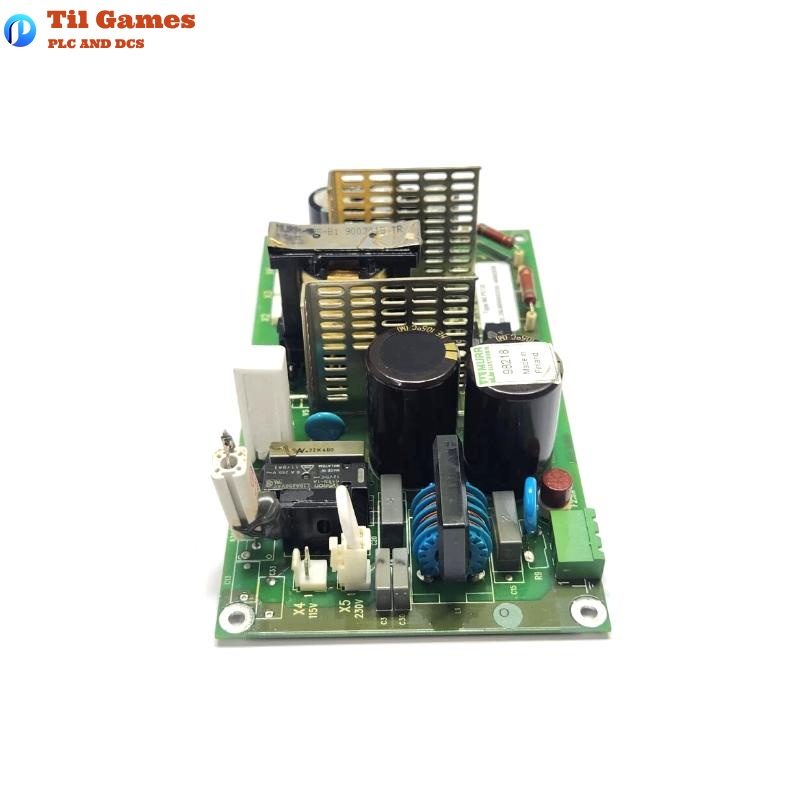

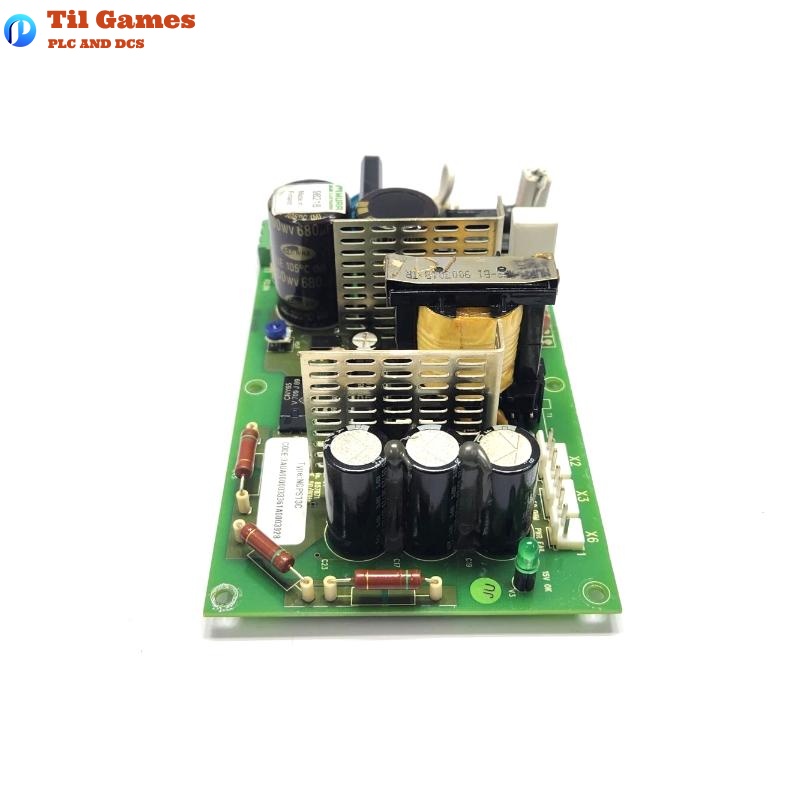

ABB NGPS-13C 3AUA0000033361 Option Kit Power Supply Board

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the NGPS-13C board?
A1: It supplies auxiliary power to internal control and communication circuits in the ACS 600 MultiDrive system.

Q2: Can the NGPS-13C be used with any frame size?
A2: No. It is intended for use within specific frame configurations, such as B2 to B5 and R6i to R12i.

Q3: Does the NGPS-13C require forced cooling?
A3: Yes. It relies on air circulation from the cabinet’s built-in fans. An air baffle is also necessary to avoid heat buildup.

Q4: Is EMC shielding mandatory during installation?
A4: Yes. Proper shielding, grounding, and use of conductive gasket materials are necessary for EMC compliance.

Q5: What is the recommended installation method?
A5: It should be mounted using M6 or M8 screws on the rear wall and base, with an air baffle to isolate hot air flow.

Q6: Are there any compatibility requirements for power voltage?
A6: Yes. Ensure the power board matches the cabinet’s rated voltage (230V or 115V) as per cooling fan specifications.

Q7: What precautions should be taken during wiring?
A7: Cable shielding must be 360° grounded at cabinet entries using conductive clamps and meshes to reduce EMI.

Q8: Is it necessary to install the NGPS-13C separately from main modules?
A8: No. It is designed to be integrated within the cabinet alongside other modules, but with proper airflow separation.

3AUA0000033361 ABB NGPS-13C Option Kit Power Supply Board
