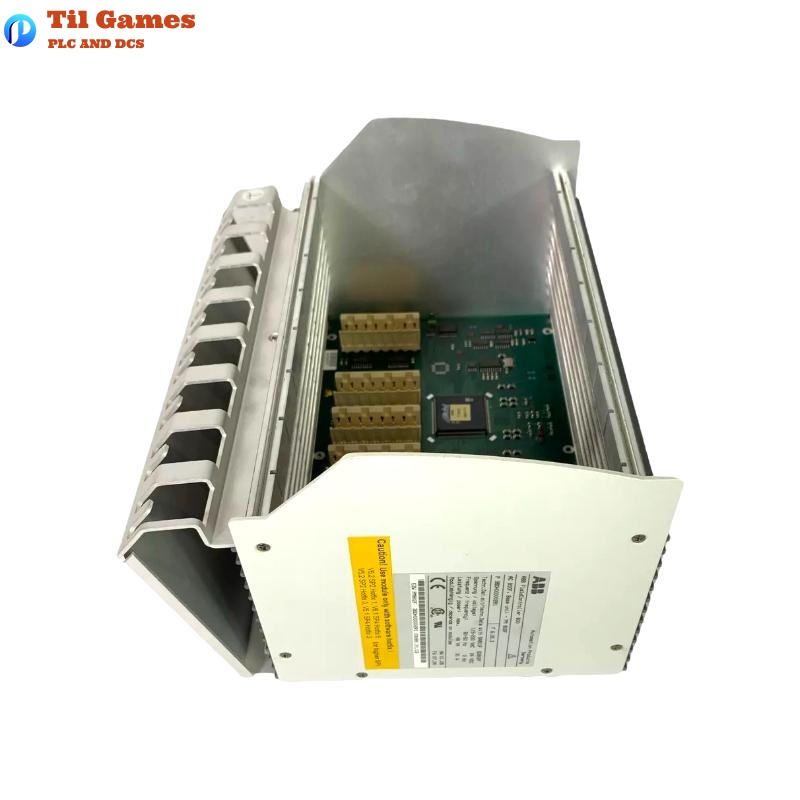

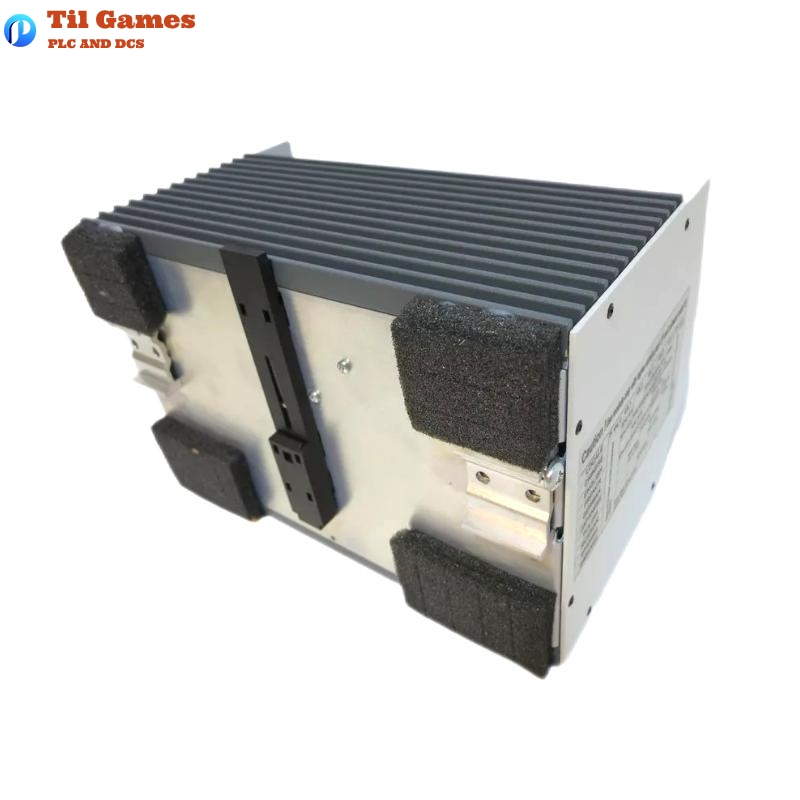

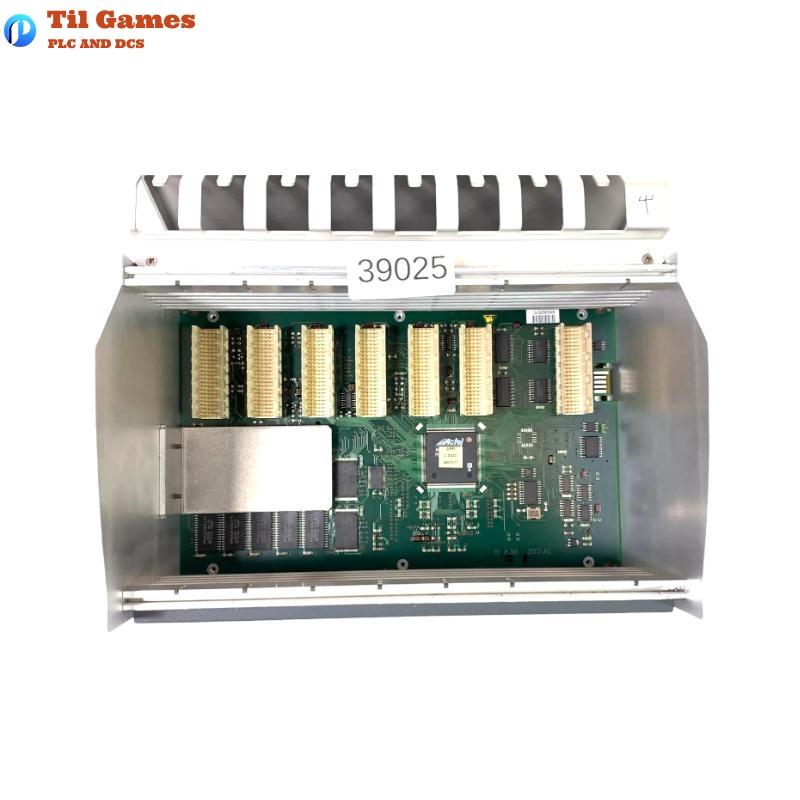

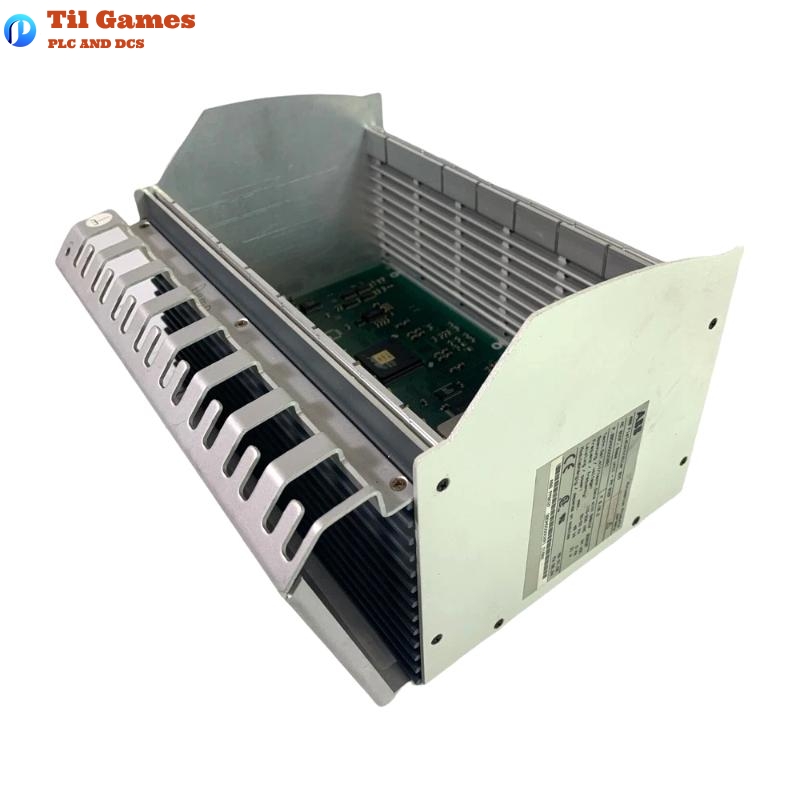

ABB PM 802F 3BDH000002R1 Freelance 800F Base Unit

FAQs for ABB PM 802F 3BDH000002R1 Freelance 800F Base Unit

1. What is the power supply voltage range for the PM 802F?
   The PM 802F supports a power supply voltage range of 115-230 V AC or 2 x 24 V DC.

2. How much RAM does the PM 802F have?
   The PM 802F is equipped with 4 MB of static RAM, which is battery-backed.

3. What is the maximum power consumption of the PM 802F?
   The maximum power consumption of the PM 802F is 6.3 W, depending on CPU usage and cycle time.

4. Can the PM 802F support redundancy?
   Yes, controller redundancy can be achieved by using two AC 800F controllers. Additionally, Ethernet communication and fieldbus lines support redundant operation.

5. What is the size of the PM 802F?
   The dimensions of the PM 802F are 239 mm in width, 202 mm in height, and 164 mm in depth.

6. What is the weight of the PM 802F?
   The weight of the PM 802F basic unit is 1.6 kg.

7. Does the PM 802F have battery backup?
   Yes, the PM 802F includes a battery backup to protect the system’s data in case of power loss.

8. What type of processor is used in the PM 802F?
   The PM 802F uses an Intel 80960HT25/75 32-bit RISC Super Scalar processor, with a processing speed of up to 150 MIPS.

3BDH000002R1 ABB Base Unit Freelance 800F PM 802F
