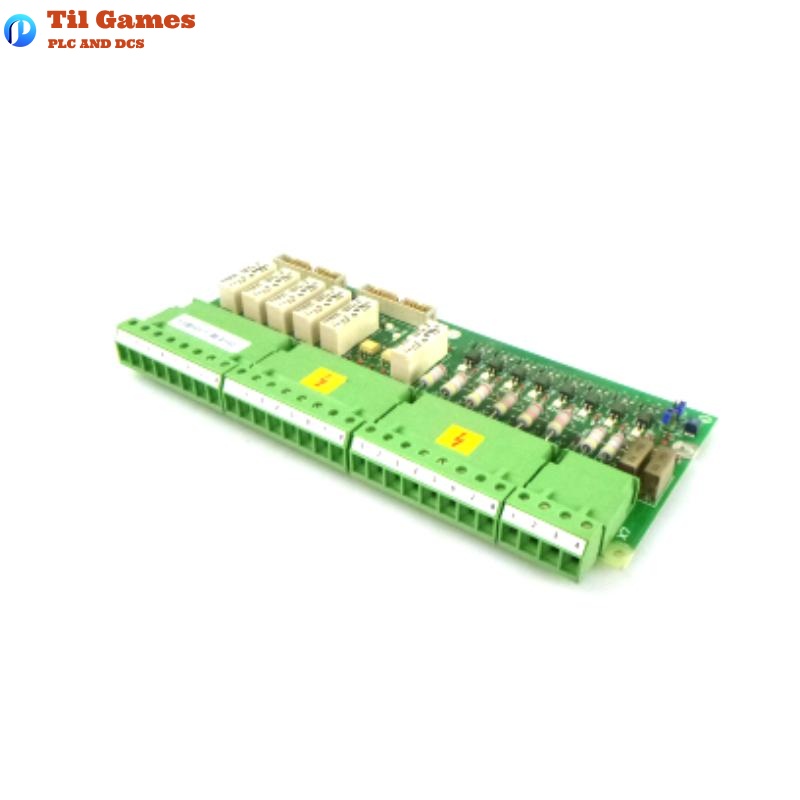

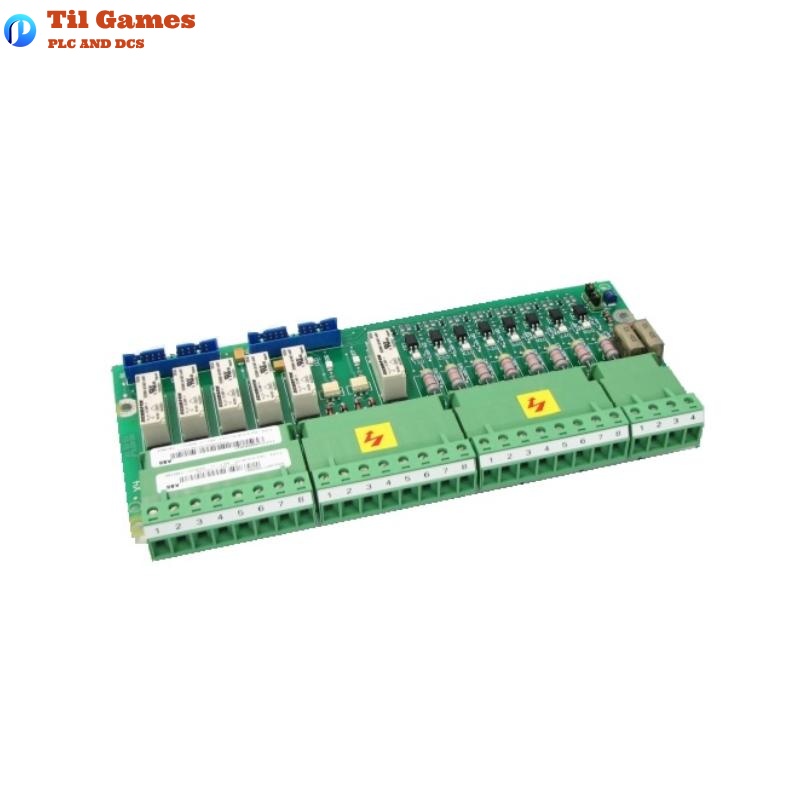

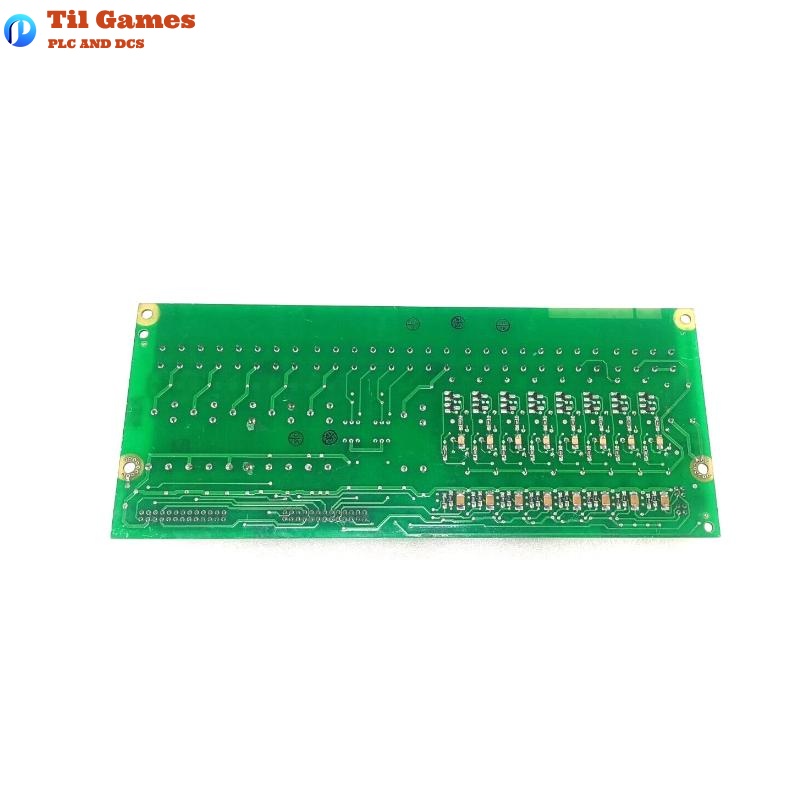

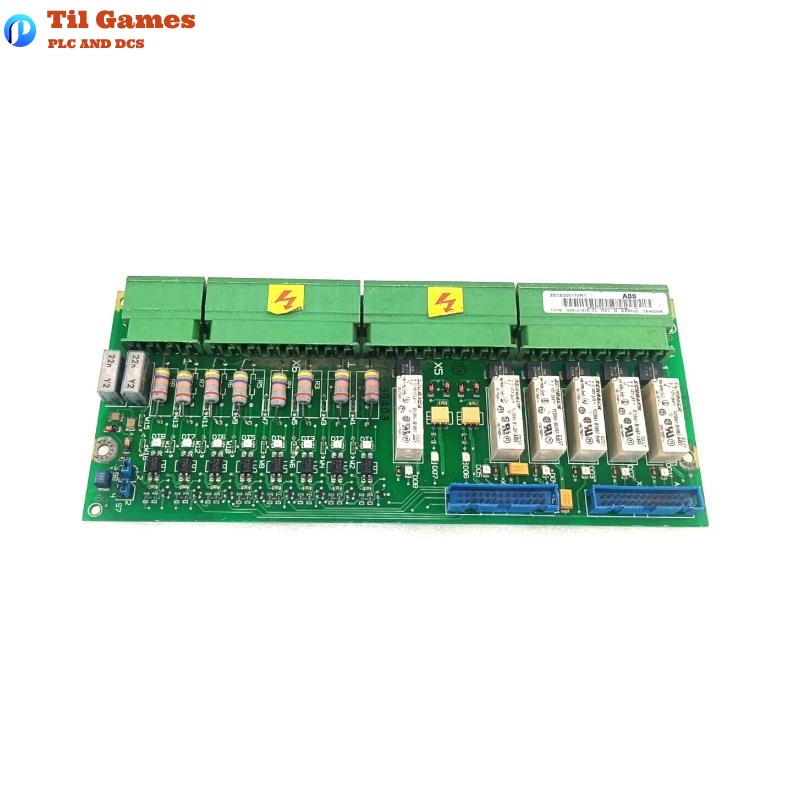

ABB SDCS-IOB-23 3ADT220090R0023 Digital Connection Board

Frequently Asked Questions (FAQ)

Q1: How many digital I/O channels does the SDCS-IOB-23 have?
A1: It provides 8 digital inputs and 8 digital outputs.

Q2: What is the input voltage range?
A2: The input voltage is 90 to 250 V AC; low level is considered below 40 V.

Q3: Are the inputs electrically isolated?
A3: Yes, the inputs are galvanically isolated using optocouplers with filters.

Q4: What types of output drivers are used?
A4: Relay drivers (K1-K5, K8) and optocoupler drivers (K6-K7) are used.

Q5: What is the maximum output voltage and current?
A5: Up to 250 V AC / 3 A or 24 V DC / 3 A; certain ports support 230 V DC / 0.3 A.

Q6: Is grounding necessary for installation?
A6: Yes, proper grounding through conductive supports is required.

Q7: Is this module compatible with SDCS-CON-4?
A7: Yes, but the cable length limits (X1X2 = 1.7 m, X1X3 = 0.5 m) must be observed.

Q8: Which ABB systems support this board?
A8: It is used in ABB DCS500 and DCS800 drive systems.

3ADT220090R0023 ABB Digital Connection Board SDCS-IOB-23
