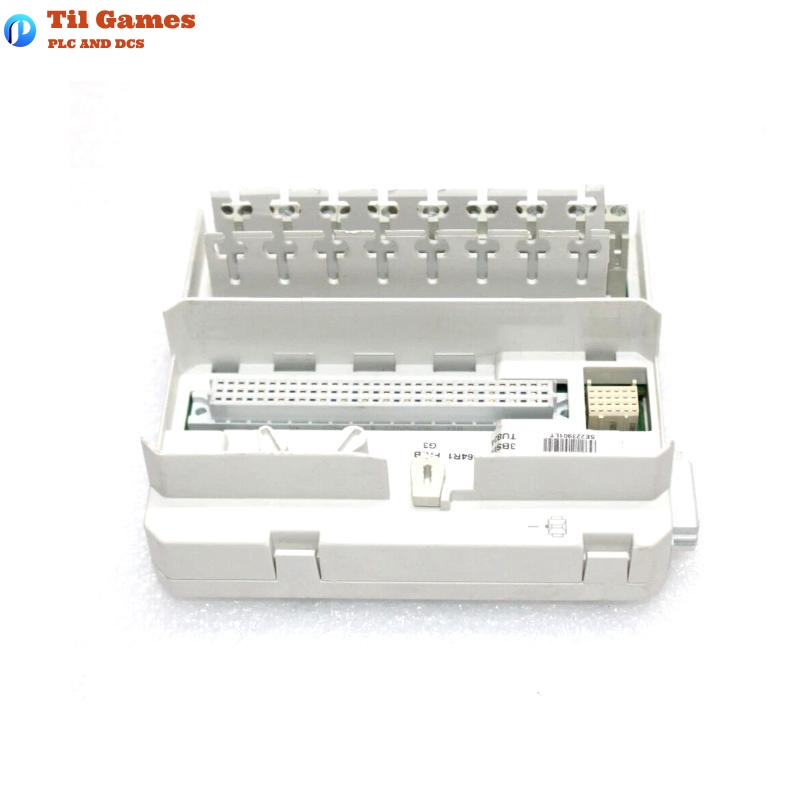

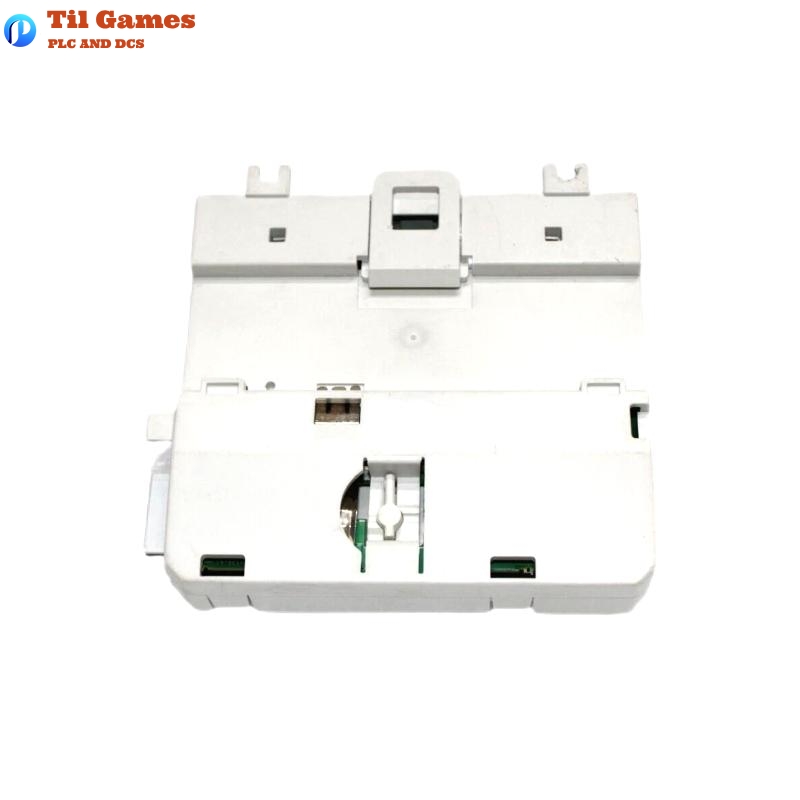

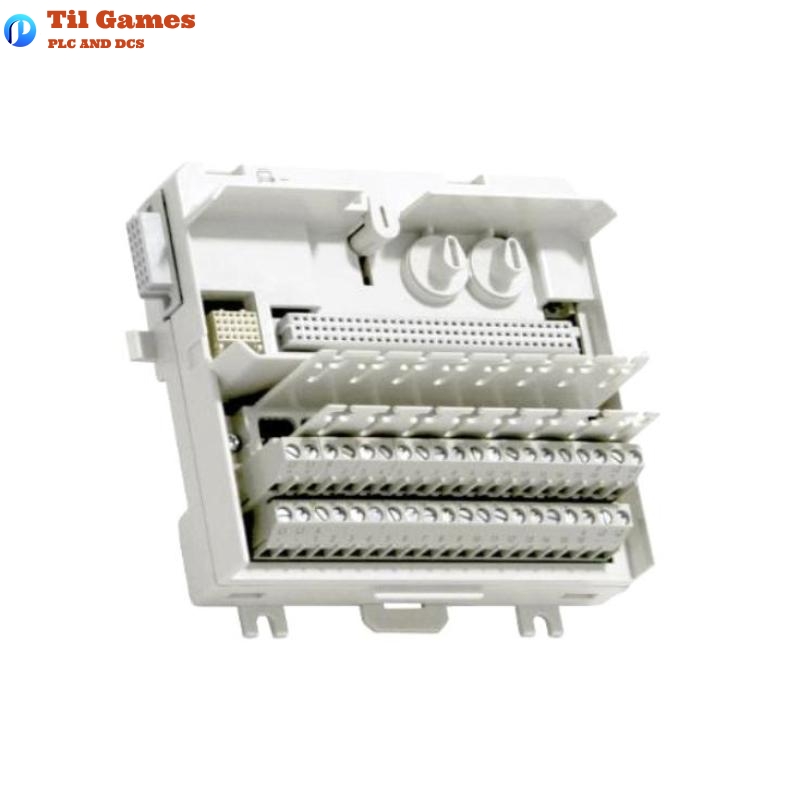

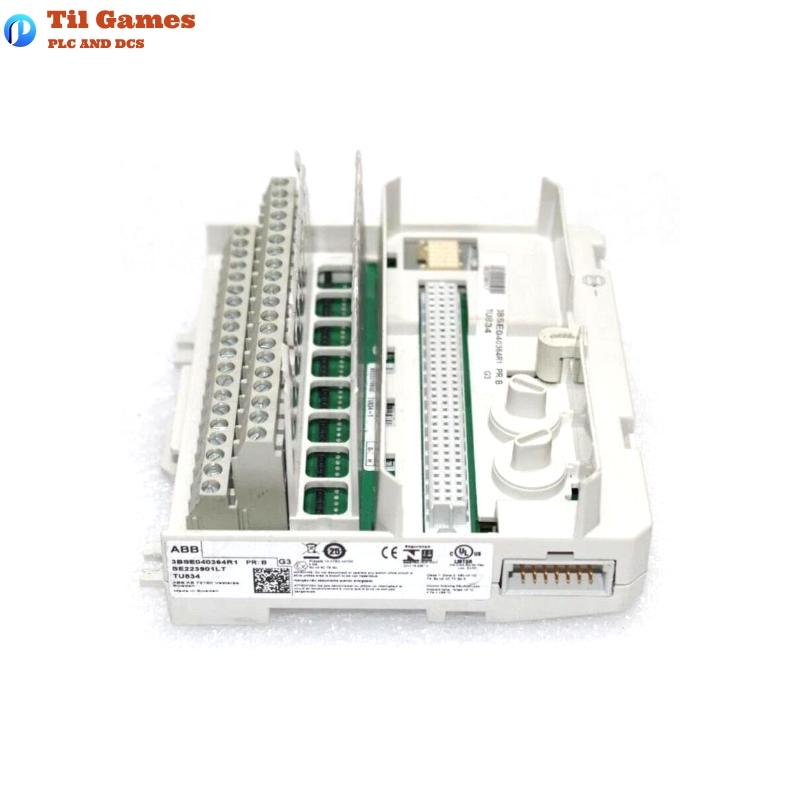

ABB TU834 3BSE040364R1 S800 I/O Extended Module Termination Unit (MTU)

FAQ

Q1: What is the maximum current for the I/O channels of the TU834 MTU?
A1: The maximum current per I/O channel is 2 A.

Q2: Can the TU834 MTU be mounted in both directions?
A2: Yes, the TU834 MTU can be mounted in both directions.

Q3: What is the recommended torque for wiring the TU834?
A3: The recommended torque is between 0.5 and 0.6 Nm.

Q4: What are the acceptable wire sizes for the TU834 MTU?
A4: For solid wires, the acceptable size is 0.2 – 4 mm², and for stranded wires, it is 0.2 – 2.5 mm² or 24 – 12 AWG.

Q5: What is the dielectric test voltage for the TU834?
A5: The dielectric test voltage is 500 V a.c.

Q6: What is the operating temperature range for the TU834 MTU?
A6: The operating temperature range is from 0 to +55 °C.

Q7: Does the TU834 MTU have environmental certifications?
A7: Yes, it has CE mark certification, along with UL, ATEX, and cULus certifications.

Q8: What is the weight of the TU834 MTU?
A8: The weight of the TU834 MTU is 0.28 kg.

3BSE040364R1 ABB Extended Module Termination Unit S800 I/O TU834
