Technical Specifications
| Parameter | Description |
|---|---|

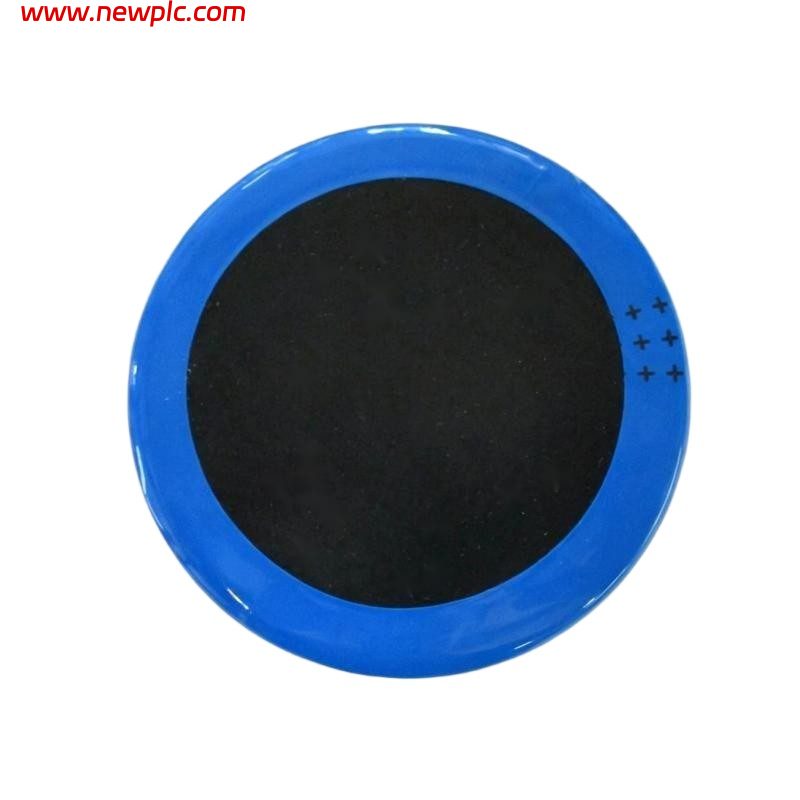

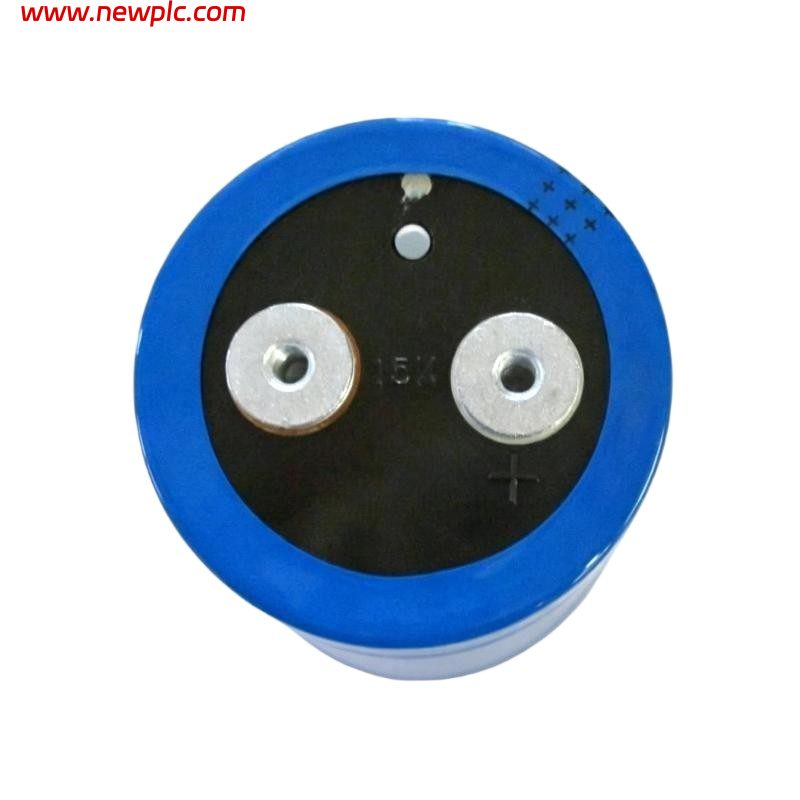

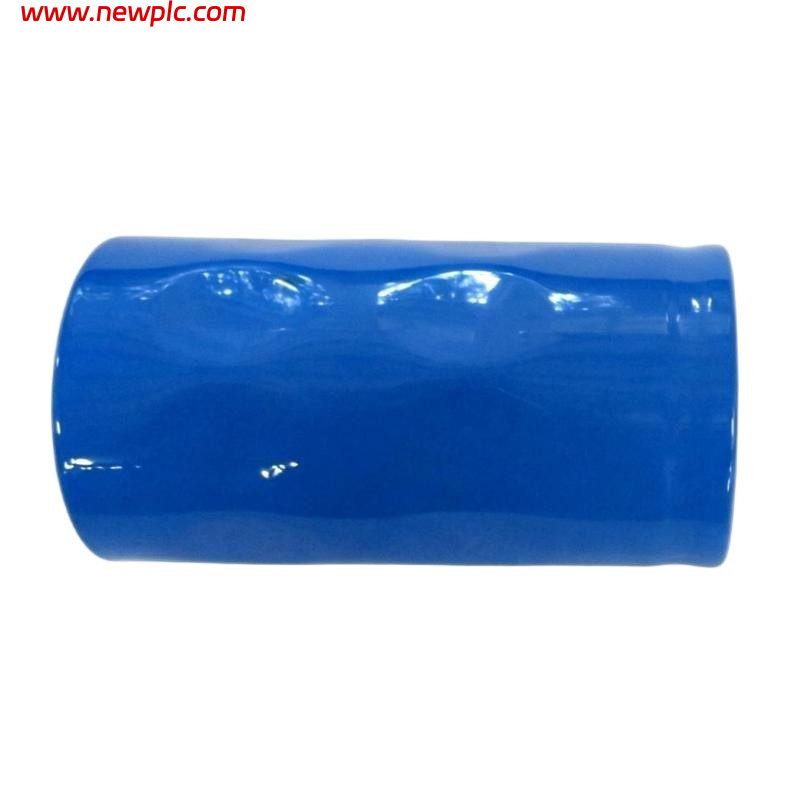

| Product Model | Allen-Bradley 1336-CAP-SP15A |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | 1336 Drive Series |
| Product Type | DC Bus Capacitor Assembly |
| Function | Stores and filters DC bus energy, reducing voltage ripple and providing stable DC power for the inverter section of the drive |
| Application | Variable frequency drives (VFD), AC motor control systems, industrial drive repair and maintenance |
| Compatible Drive Series | Allen-Bradley 1336 PLUS, 1336 PLUS II, 1336 FORCE, 1336 IMPACT, and 1336 REGEN drives |
| Compatible Frame | 1336STEF Frame F |
| Voltage Rating | 460 VAC drive system |
| Capacitor Type | Aluminum electrolytic bus capacitor |
| Capacitance | 4600 µF |
| Capacitor Voltage Rating | 400 VDC |
| Quantity | 1 capacitor assembly |
| Installation Location | DC bus section inside Allen-Bradley 1336 drive |
| Mounting Type | Internal drive chassis mounting |
| Application Function | DC link energy storage and voltage stabilization |
| Spare Part Type | Replacement capacitor kit |
| Operating Environment | Industrial control cabinet environment |
| Lifecycle Status | Obsolete / discontinued spare part |
| Dimensions | Approx. 160 × 90 × 90 mm |
| Weight | Approx. 0.91 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 1336-CAP-SP15A used for?
A: The 1336-CAP-SP15A is a DC bus capacitor assembly used inside Allen-Bradley 1336 drives to store electrical energy and smooth DC bus voltage for reliable motor control operation.
Q2: Which drives are compatible with the 1336-CAP-SP15A?
A: It is designed for Allen-Bradley 1336STEF Frame F drives with a 460V class power system, including compatible 1336 PLUS, PLUS II, FORCE, IMPACT, and REGEN drive platforms.
Q3: What are the main specifications of the capacitor?
A: The capacitor assembly has a capacitance of 4600 µF and is rated for a 400 VDC capacitor voltage application.
Q4: Is the 1336-CAP-SP15A a complete variable frequency drive?
A: No. It is only a replacement DC bus capacitor component installed inside compatible Allen-Bradley 1336 drive units.
Q5: What symptoms may indicate a failed DC bus capacitor?
A: Common signs include unstable DC bus voltage, drive faults, increased electrical noise, reduced performance, capacitor leakage, swelling, or visible physical damage.
Q6: What are the dimensions and weight of the 1336-CAP-SP15A?
A: The approximate dimensions are 160 × 90 × 90 mm, and the weight is approximately 0.91 kg. Actual values may vary slightly depending on manufacturing revision and packaging.
Q7: Can the 1336-CAP-SP15A replace another capacitor assembly?
A: Replacement should only be performed after confirming the drive model, frame size, voltage rating, capacitance value, mounting method, and original part number.
Q8: What should be checked before installing the 1336-CAP-SP15A?
A: Verify the drive model compatibility, disconnect and discharge the DC bus voltage completely, inspect terminals and mounting hardware, and follow proper electrical safety procedures before replacing the capacitor assembly.
