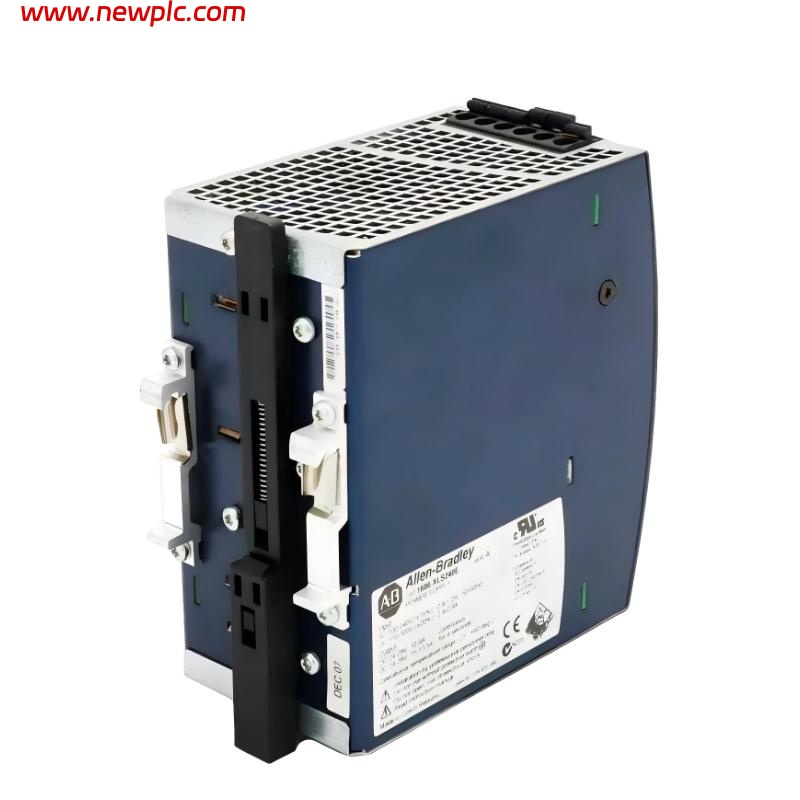

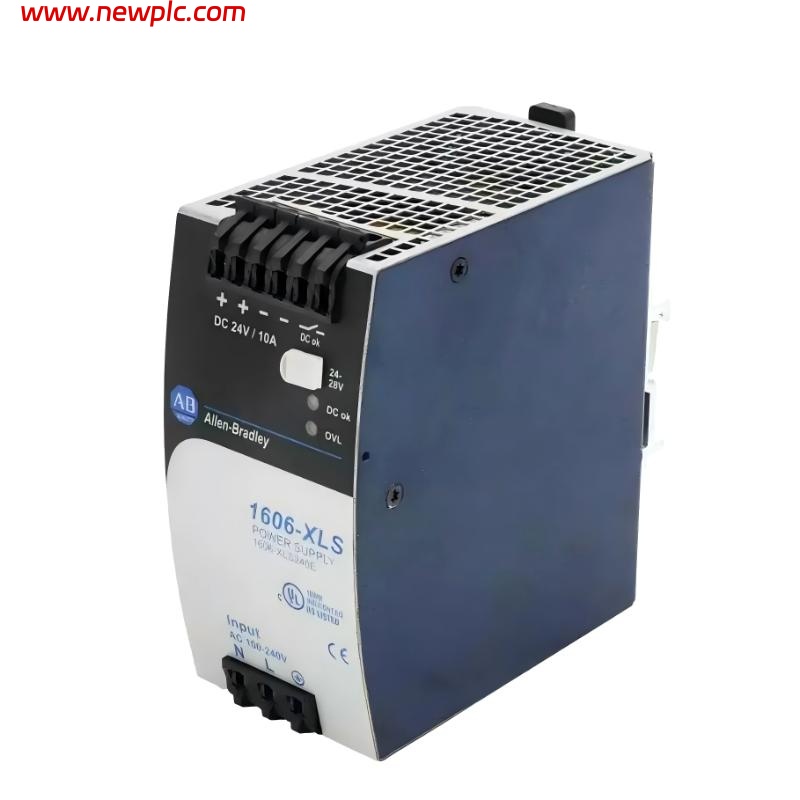

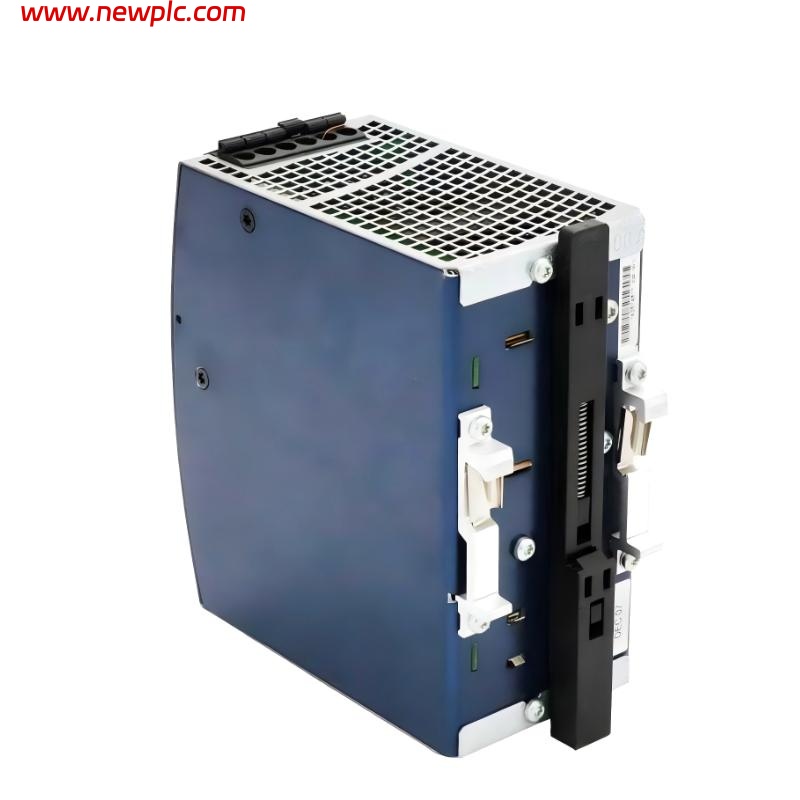

Allen Bradley 1606-XLS240E Industrial AC/DC Switched-Mode Power Supply

FAQ

Q1: What type of product is the 1606-XLS240E?
It is an industrial AC/DC switched-mode power supply from the Allen-Bradley 1606-XLS performance series.

Q2: What input voltage range does this model support?
It supports 100–240 V AC and 110–150 V DC, with a wider DC operational range up to 188 V.

Q3: What is the output voltage and current rating?
The unit provides 24 V DC (adjustable to 28 V DC) with a rated current of 10 A.

Q4: How much power can the 1606-XLS240E deliver?
It delivers 240 W continuously, with temporary boost capability up to 15 A.

Q5: What are the dimensions and weight of the unit?
The dimensions are 124 mm × 60 mm × 117 mm, and the weight is approximately 900 g.

Q6: What efficiency and performance can be expected?
Typical efficiency is about 93.5 %, with a hold-up time of around 27 ms and low ripple ≤ 50 mV.

Q7: What protection features are included?
It includes overload, short-circuit, and thermal protection, along with a DC-OK relay contact.

Q8: What environmental conditions can it operate in?
It operates from −25 °C to +70 °C with up to 95 % non-condensing humidity and IP20 protection.

1606-XLS240E Allen Bradley
