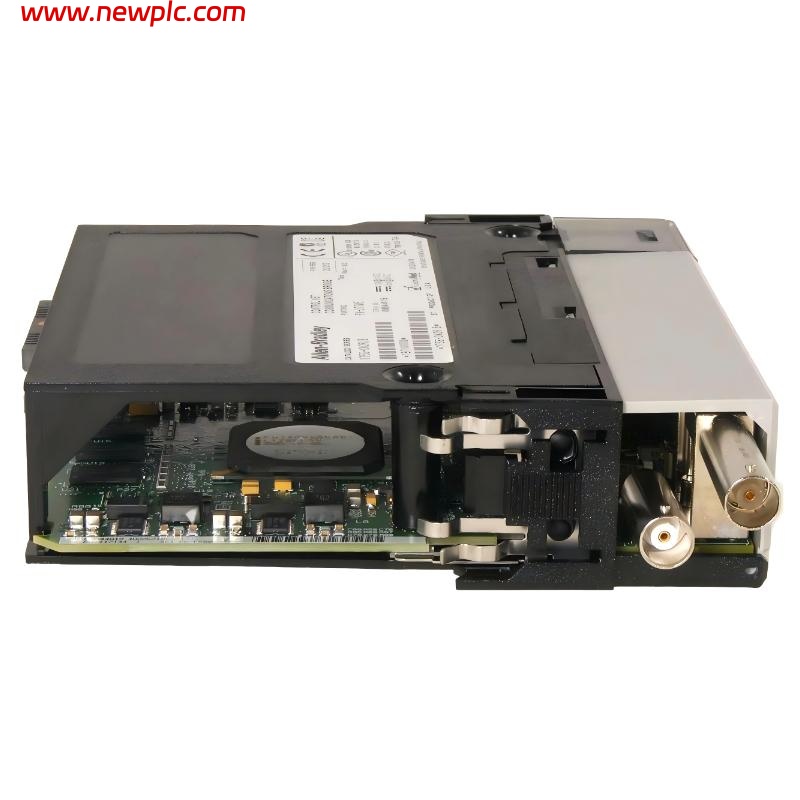

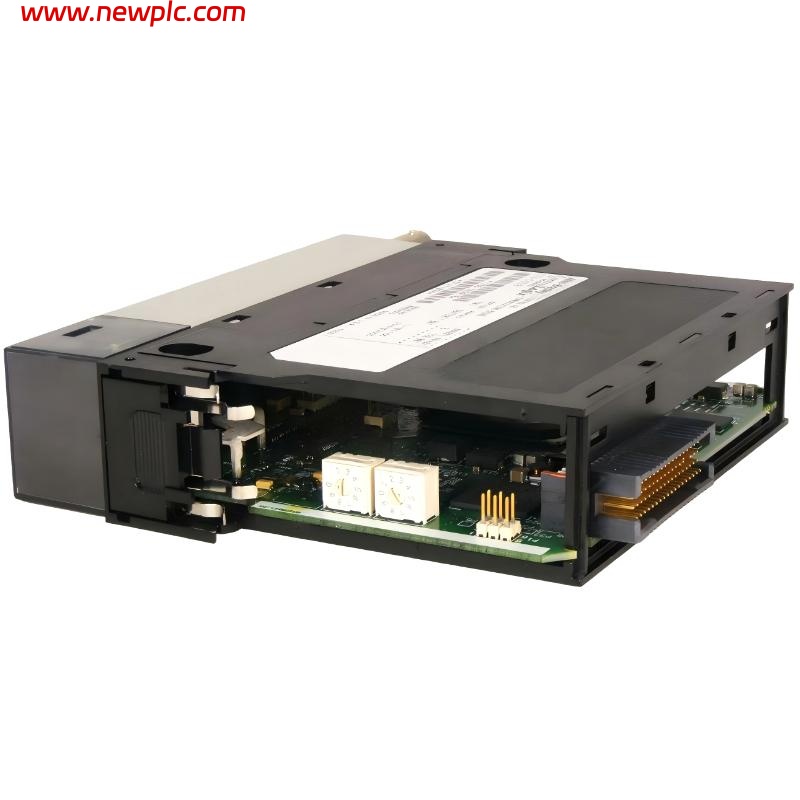

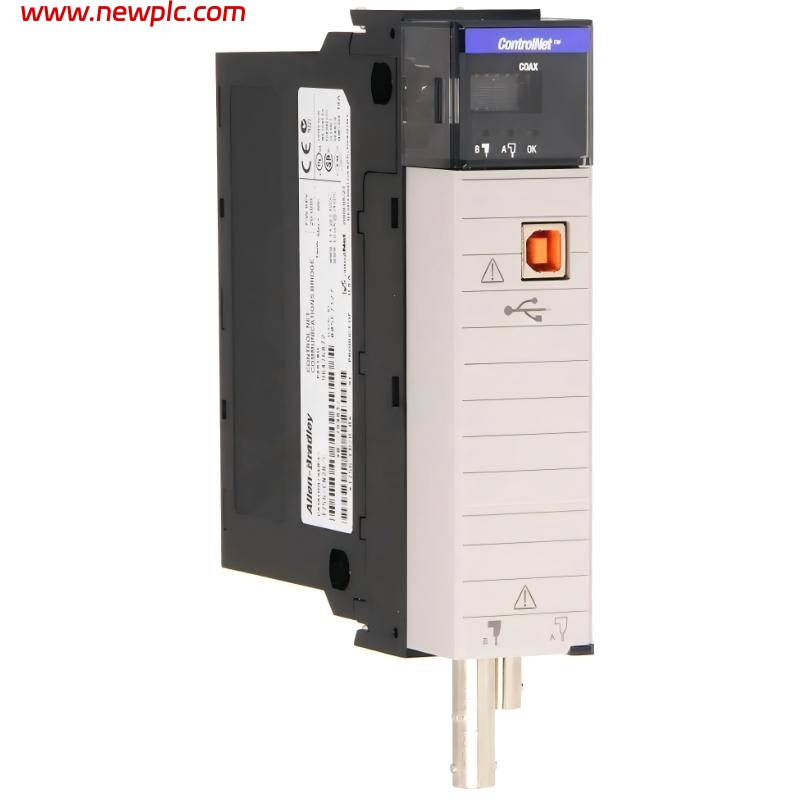

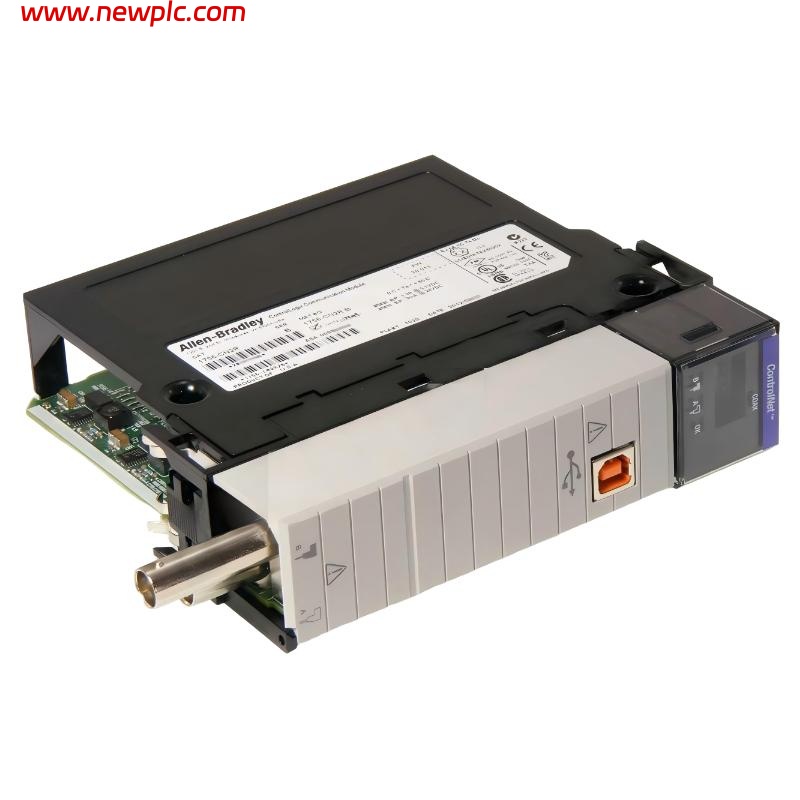

Allen Bradley 1756-CN2RK ControlLogix Communication Module

FAQ

Q1: What is the 1756‑CN2RK?
It is a redundant ControlNet communication module for ControlLogix systems that provides high‑speed network connectivity.

Q2: What network protocol does it support?
It supports the ControlNet industrial network protocol at up to 5 Mb/s.

Q3: How many ControlNet ports does it have?
It has two BNC ports for redundant ControlNet connections.

Q4: How many communications connections can it serve?
It can handle up to 128 Logix communication connections.

Q5: What cable type is required for ControlNet?
It uses 1786‑RG6 quad‑shield coaxial cable for the ControlNet physical layer.

Q6: What are the backplane current requirements?
It draws about 1300 mA at 5.1 V DC and approximately 3 mA at 24 V DC from the chassis backplane.

Q7: What are the physical dimensions and weight?
Dimensions are approximately 18.3 × 5.2 × 23.4 cm and weight is about 0.29 kg.

Q8: Is the 1756‑CN2RK still supported?
Yes — it is an active communication module in the ControlLogix product family.
