Technical Specifications
| Specification | Parameter |
|---|---|
| Part Number / Model | 1761-L10BWA |

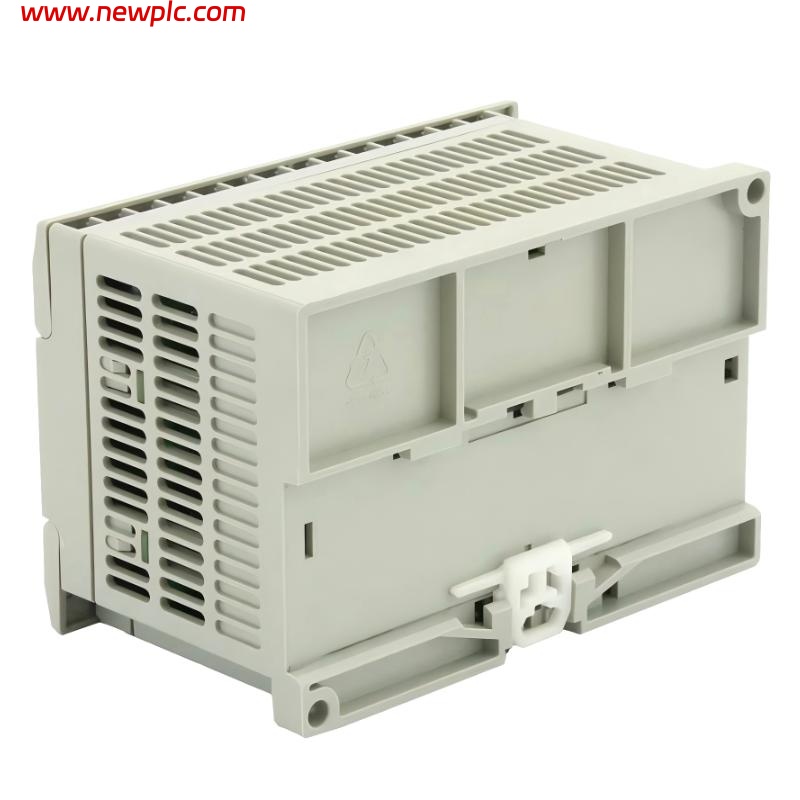

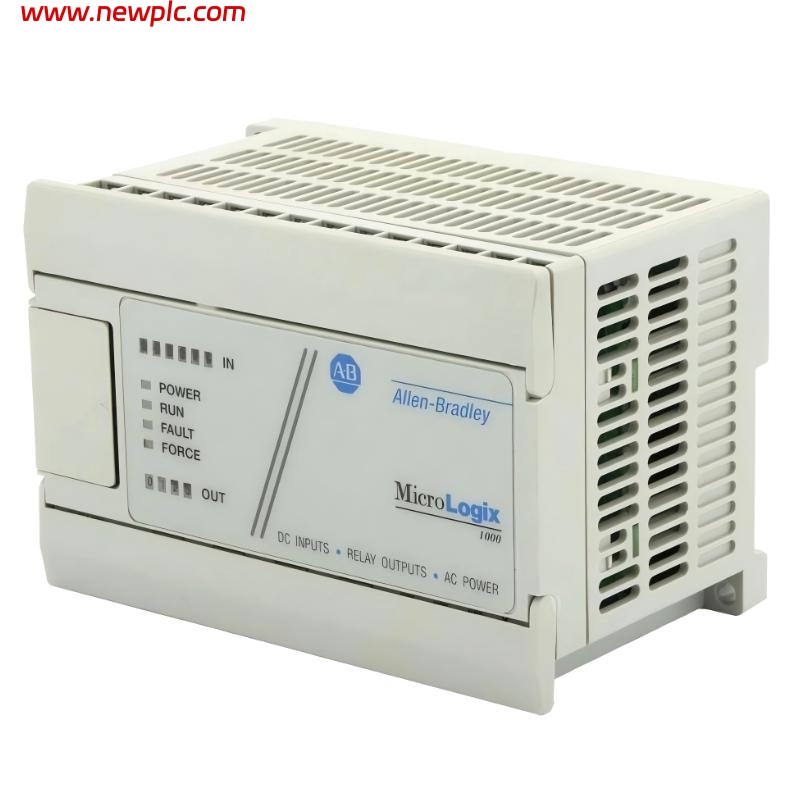

| Module Type | MicroLogix 1000 Programmable Controller |
| I/O Configuration | 10 points (6 inputs / 4 outputs) |
| Input Type | 24 V DC digital inputs |
| Output Type | Relay outputs |
| Power Supply | 120/240 V AC (85–264 VAC range) |
| Communication Protocol | DF1 serial communication |
| Communication Interface | RS-232 port |
| Memory Capacity | 1 KB EEPROM |
| Sensor Power Output | 24 V DC @ 200 mA |
| Mounting Options | DIN rail or panel mount |
| Operating Temperature | 0–55 °C |
| Enclosure Rating | IP20 |
| Lifecycle Status | Discontinued |
| Dimensions (L × W × H) | ~120 mm × 80 mm × 70–80 mm |
| Weight | ~1.0 kg |
FAQ
FAQ
Q1: What is the 1761-L10BWA used for?
It is a compact PLC used for small automation tasks such as machine control and simple process applications.
Q2: How many I/O points are available?
It provides 10 I/O points, including 6 digital inputs and 4 relay outputs.
Q3: What type of power supply does it require?
It operates on 120/240 V AC power with a wide input range.
Q4: What communication options are available?
It supports DF1 protocol via an RS-232 serial interface.
Q5: Can it be mounted in different ways?
Yes, it supports both DIN rail and panel mounting for flexible installation.
Q6: Is this controller still in production?
No, it has been discontinued since 2017.
Q7: What is the memory capacity of the controller?
It includes 1 KB of EEPROM memory for storing control programs.
Q8: What are the physical size and weight?
It measures approximately 120 mm × 80 mm × 70–80 mm and weighs about 1.0 kg.
