Technical Specifications
| Specification | Parameter |
|---|---|
| Part Number / Model | 1761‑L10BWB |

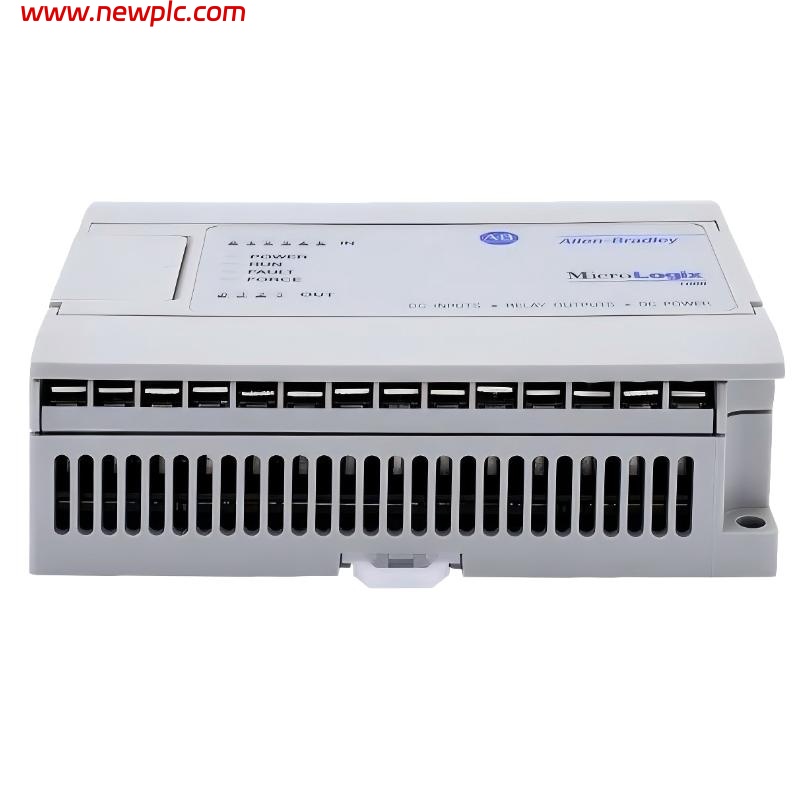

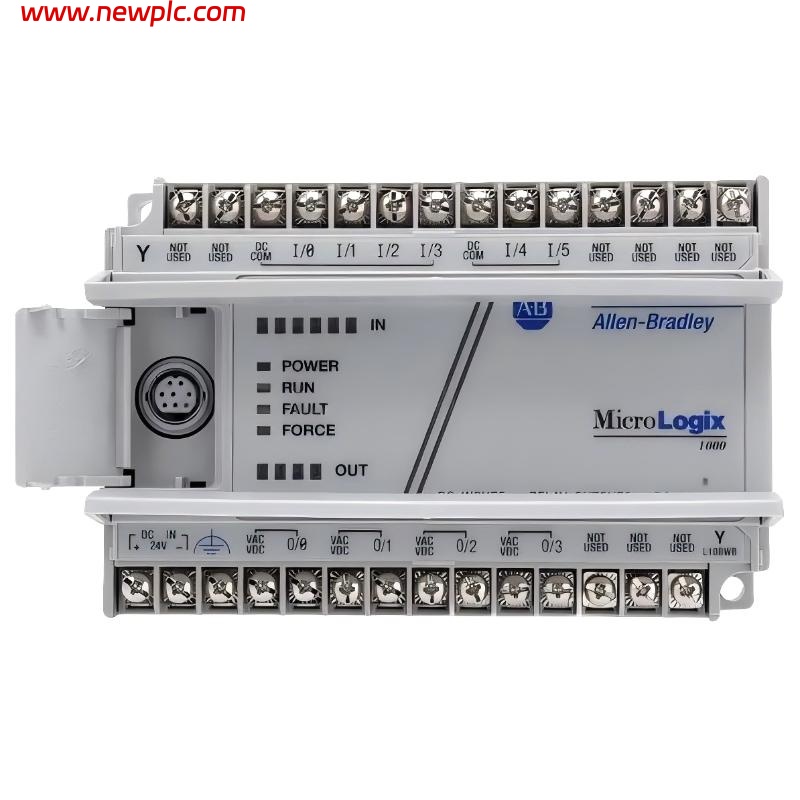

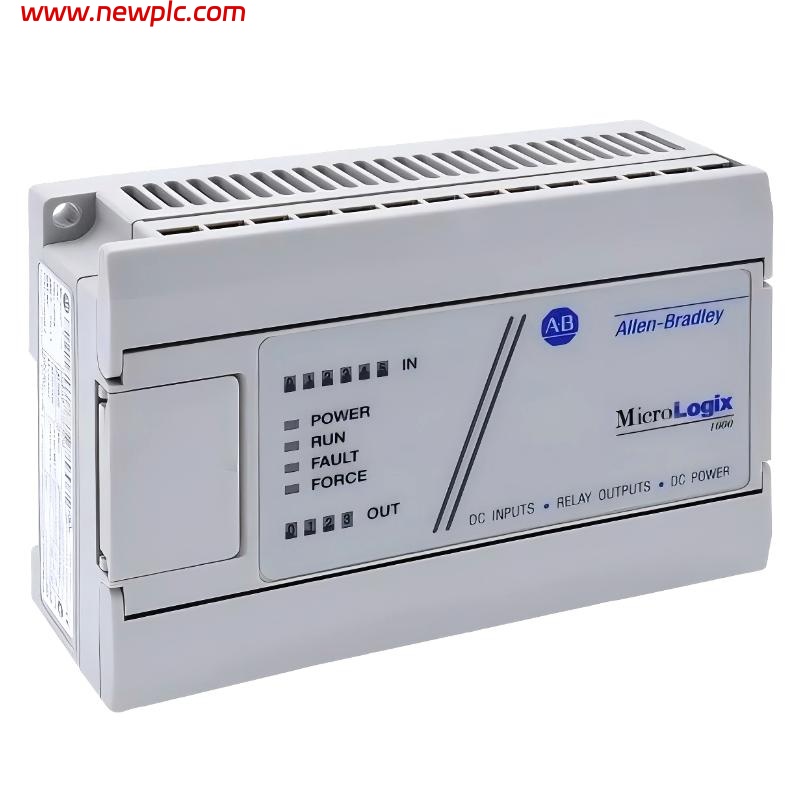

| Module Type | MicroLogix 1000 Programmable Controller |
| System Compatibility | MicroLogix 1000 PLC series |
| Input Type | 24 V DC digital inputs |
| Output Type | Relay outputs |
| Input Voltage Range | 20.4 – 26.4 V DC |
| I/O Count | 10 points (6 inputs, 4 outputs) |
| Discrete Inputs | Six (6) 24 V DC digital inputs |
| Output Ratings | Four (4) relay contact outputs |
| Communication Interface | RS‑232 (DF1 protocol) |
| Memory | 1 KB EEPROM (737 instruction, 437 data words) |
| Master Control Relay | Yes (safety feature) |
| Power Consumption | ~5–10 W, 30 A inrush for 4 ms |
| Mounting | DIN rail or panel |
| Operating Temperature | 0 °C to ~55 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5–95 % non‑condensing |
| Shock & Vibration | Industrial ratings |
| Dimensions (L × W × H) | ~120 mm × 80 mm × 73 mm (~4.72″ × ~3.15″ × ~1.57″) |
| Weight | ~0.23 kg (~0.50 lb) |
| Lifecycle Status | Discontinued/Obsolete |
FAQ
FAQ
Q1: What is the 1761‑L10BWB used for?
It is a compact programmable controller for small automation and control tasks.
Q2: How many I/O points does it have?
It has 10 I/O points: six digital inputs and four relay outputs.
Q3: What type of power supply does it use?
It operates on 24 V DC input power.
Q4: What communication interface does it support?
It includes an RS‑232 port using the DF1 protocol.
Q5: What is the memory capacity?
It includes 1 KB EEPROM memory for program and data retention.
Q6: What are the output specifications?
It has four relay contact outputs for switching AC or DC loads.
Q7: How can it be mounted?
It can be mounted on a DIN rail or a panel for flexible installation.
Q8: Is this controller still current?
No, it has been discontinued and is considered obsolete.
