Technical Specifications
| Specification | Parameter |
|---|---|

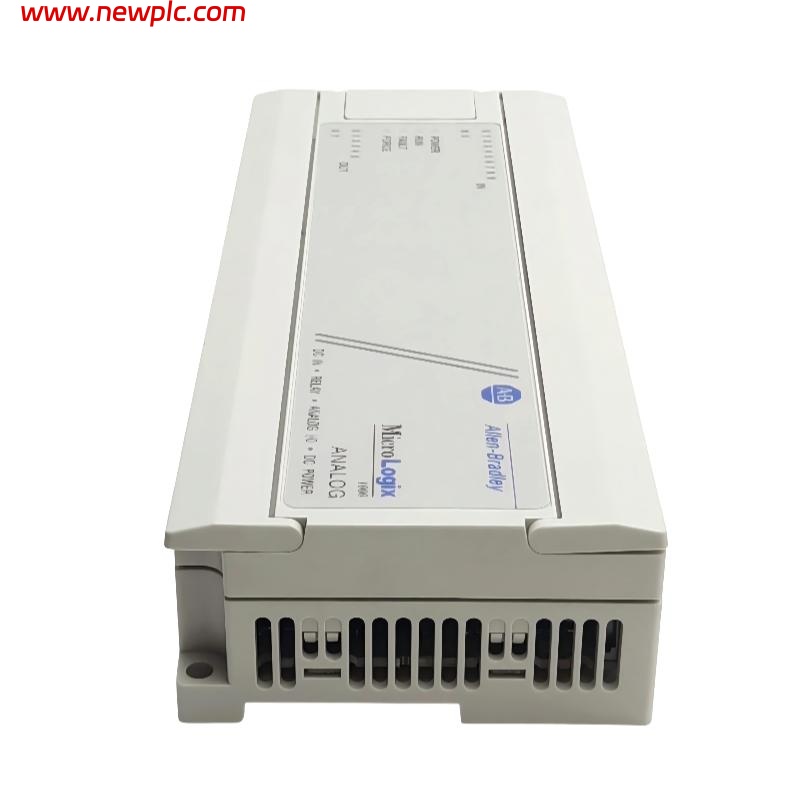

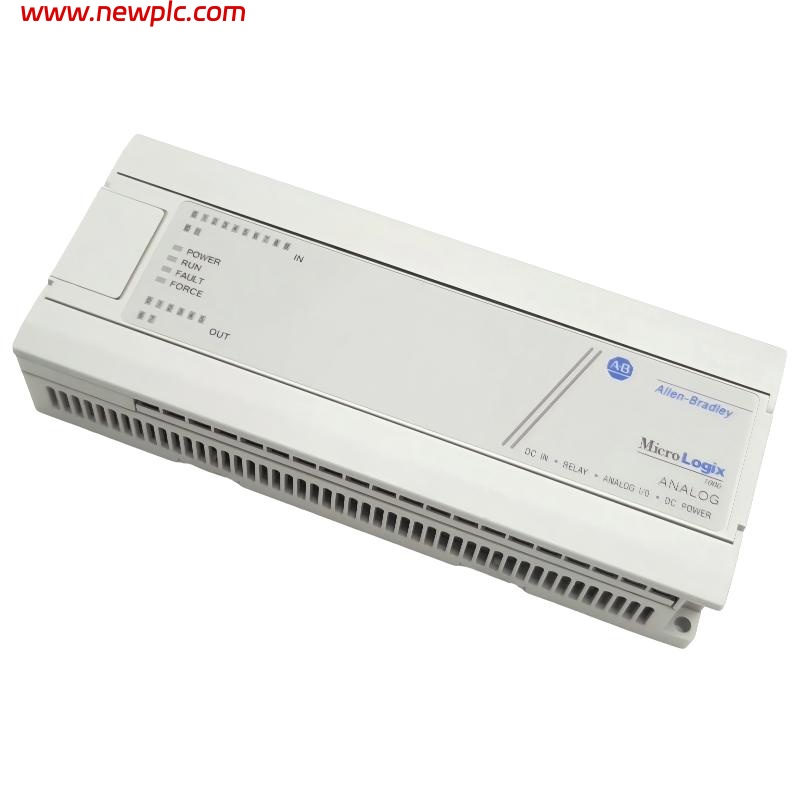

| Part Number / Model | 1761‑L20BWB‑5A |
| Module Type | MicroLogix 1000 Programmable Controller |
| System Compatibility | MicroLogix 1000 PLC series |
| Power Supply | 24 V DC (typical 20.4 – 26.4 V DC) |
| I/O Count | 20 total I/O points |
| Digital Inputs | Twelve (12) 24 V DC discrete inputs |
| Outputs | Eight (8) relay contact outputs |
| Output Type | Relay contacts suitable for AC/DC loads |
| Communication Interface | RS‑232 serial (DF1 protocol) |
| Memory Capacity | 1 KB EEPROM (program and data) |
| Master Control Relay | Yes (built‑in safety feature) |

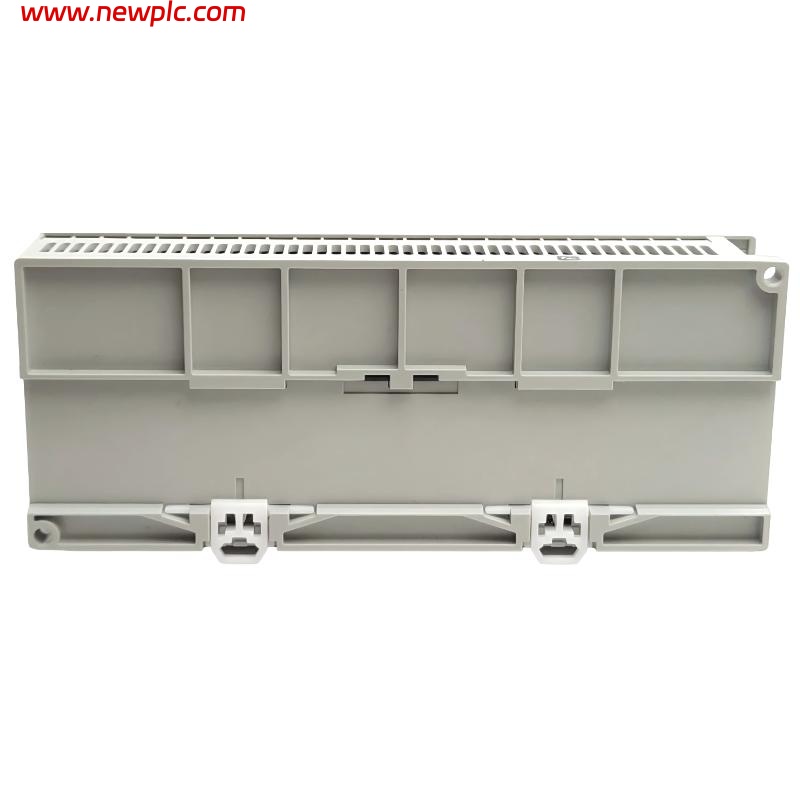

| Mounting | DIN rail or panel mount |
| Operating Temperature | 0–55 °C (32–131 °F) |
| Humidity (Operating) | 5–95 % non‑condensing |
| Shock & Vibration | Industrial‑rated shock and vibration |
| Dimensions (L × W × H) | ~200 mm × ~75 mm × ~80 mm (~7.87″ × ~2.95″ × ~3.15″) |
| Weight | ~0.26 kg (~0.57 lb) |
| Lifecycle Status | Discontinued/Obsolete (end of sale Jun 30, 2017) |
FAQ
FAQ
Q1: What is the 1761‑L20BWB‑5A used for?
It is a compact programmable logic controller for small industrial and machine automation applications.
Q2: How many I/O points does this controller have?
It provides 20 total I/O points with twelve digital inputs and eight outputs.
Q3: What type of outputs does it provide?
It uses eight relay contact outputs suitable for switching AC or DC loads.
Q4: What communication interface does it support?
It supports an RS‑232 serial port using the DF1 protocol for programming and data exchange.
Q5: What is the power supply requirement?
It operates from a 24 V DC power supply.
Q6: Does it include any safety features?
Yes — it has a built‑in Master Control Relay for safety logic control.
Q7: What are the environmental operating limits?
It typically operates from 0 °C to 55 °C with humidity up to 95 % non‑condensing.
Q8: Is this controller still in production?
No — the 1761‑L20BWB‑5A has been discontinued and is considered obsolete.
