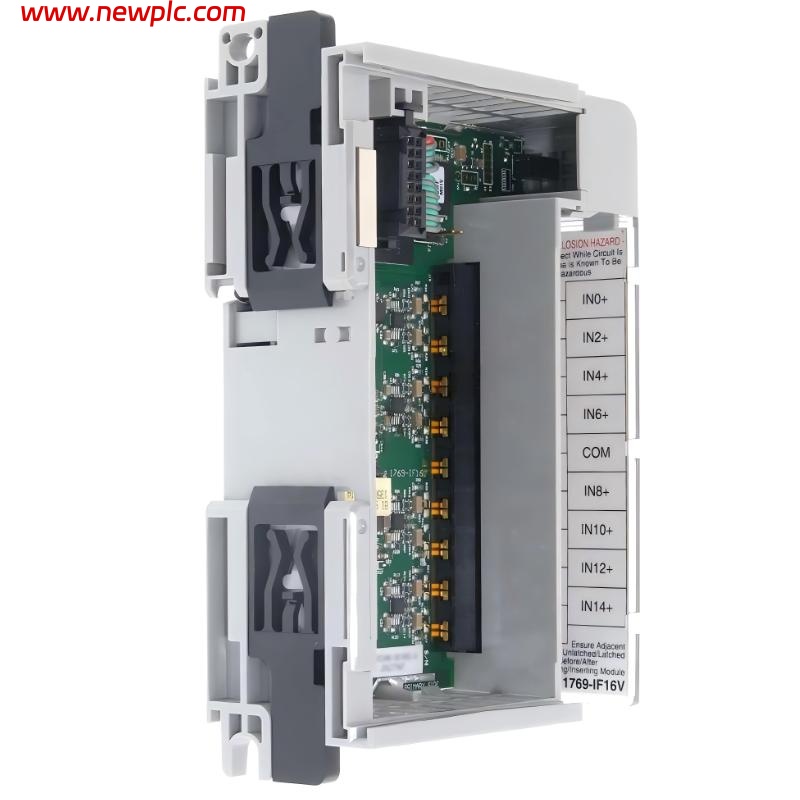

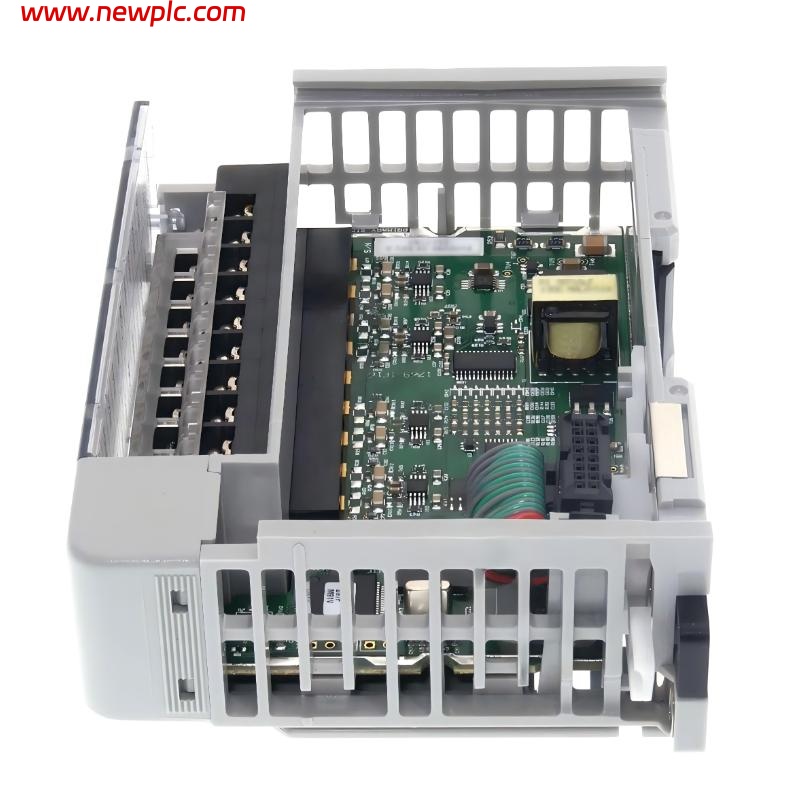

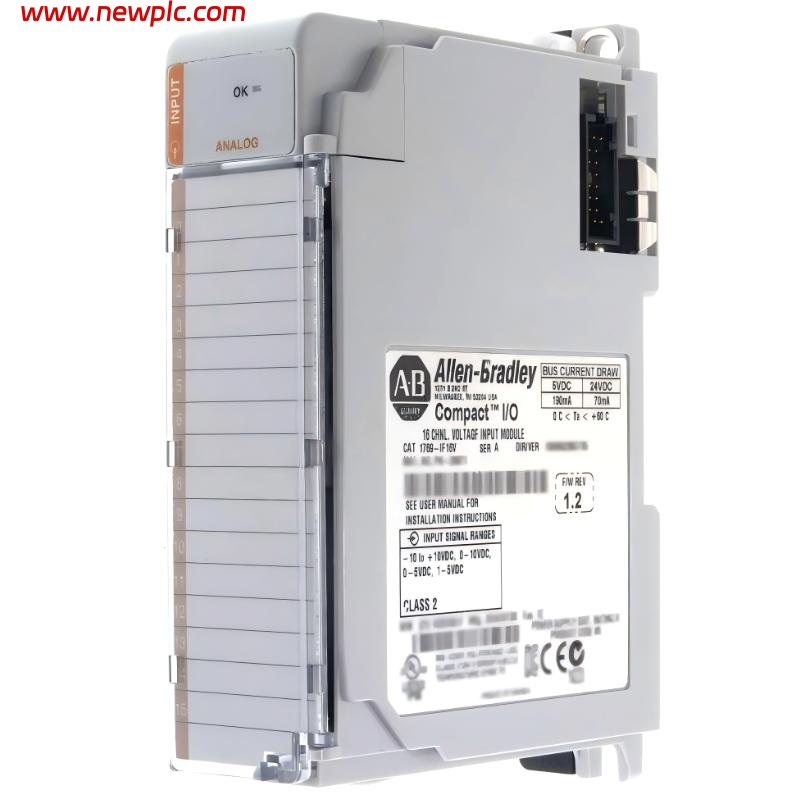

Allen Bradley 1769-IF16V Analog voltage input module

FAQ

Q1. What is the 1769-IF16V used for?
It is used to measure analog voltage signals such as 0–10 V or ±10 V from industrial sensors and devices.

Q2. How many input channels does it support?
It provides 16 differential analog voltage input channels.

Q3. What voltage ranges are supported?
It supports ±10 V, 0–10 V, and 0–5 V input ranges depending on configuration.

Q4. What is the resolution of the module?
It provides 16-bit resolution for precise voltage measurement.

Q5. Can each channel be configured independently?
Yes, each channel can be individually configured through software.

Q6. What is the update speed?
Typical update time is around 2.5 ms per channel.

Q7. Does the module need external power?
No, it is powered through the CompactLogix backplane.

Q8. What are the physical size and weight?
It measures approximately 118 mm × 35 mm × 87 mm and weighs about 0.3 kg.

1769-IF16V Allen Bradley

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
