Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Micro820 |

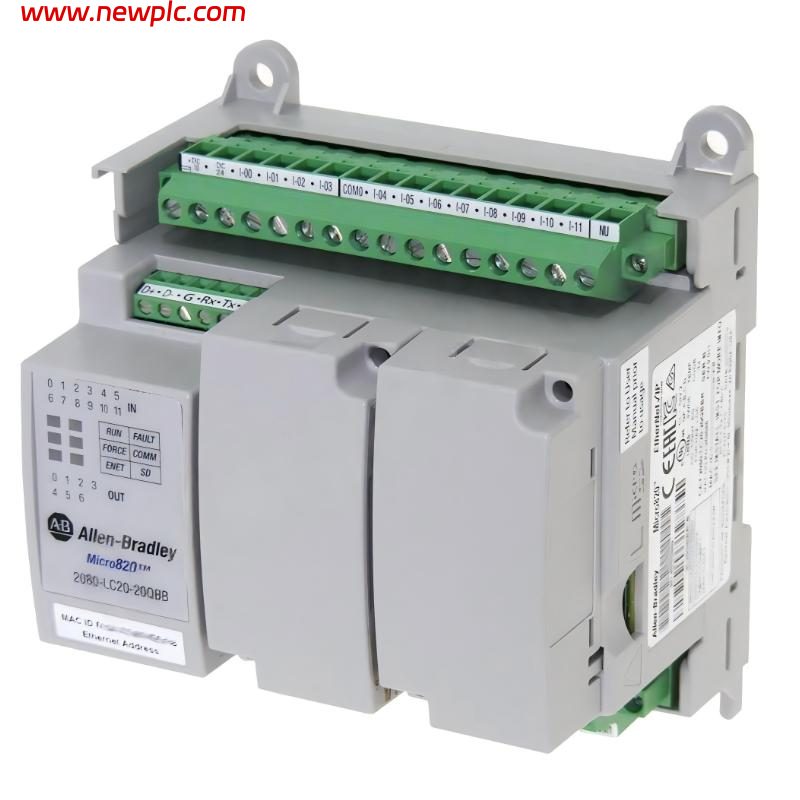

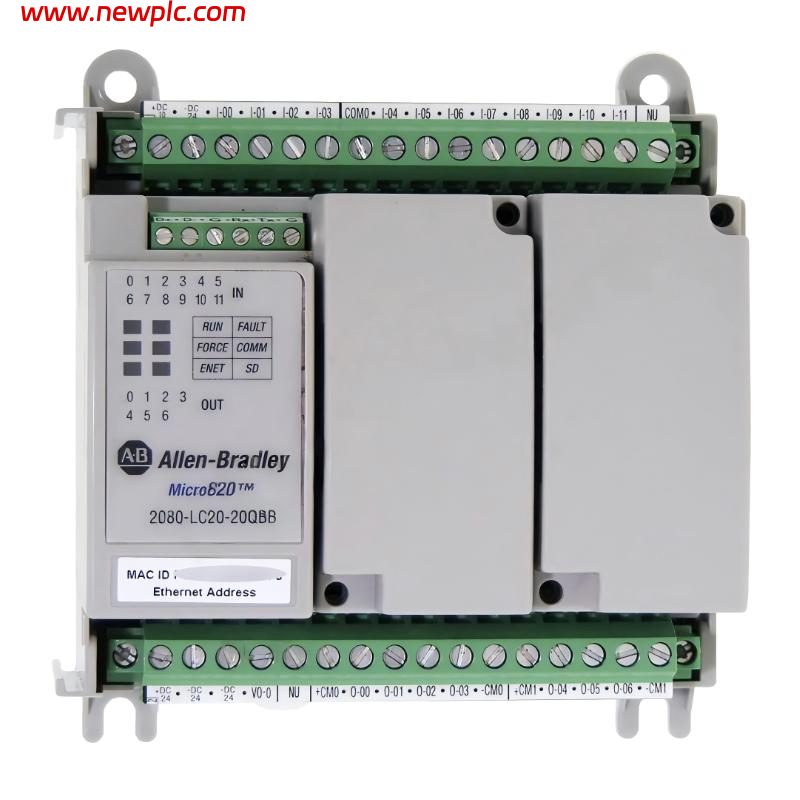

| Model Number | 2080-LC20-20QBBR |
| Product Type | Programmable Logic Controller (PLC) |
| Controller Family | Micro820 Ethernet Controller |
| Embedded I/O | 20 Points |
| Digital Inputs | 12 × 24V DC Inputs |
| Digital Outputs | 7 × 24V DC Source Outputs |
| Analog Inputs | 4 × Configurable Analog Inputs (0…10V DC / Thermistor Support) |
| Analog Outputs | 1 × Analog Output (0…10V DC) |
| PWM Output | 1 PWM Output Supported |
| Power Supply | 24V DC |
| Power Supply Voltage Range | 20.4…26.4V DC |

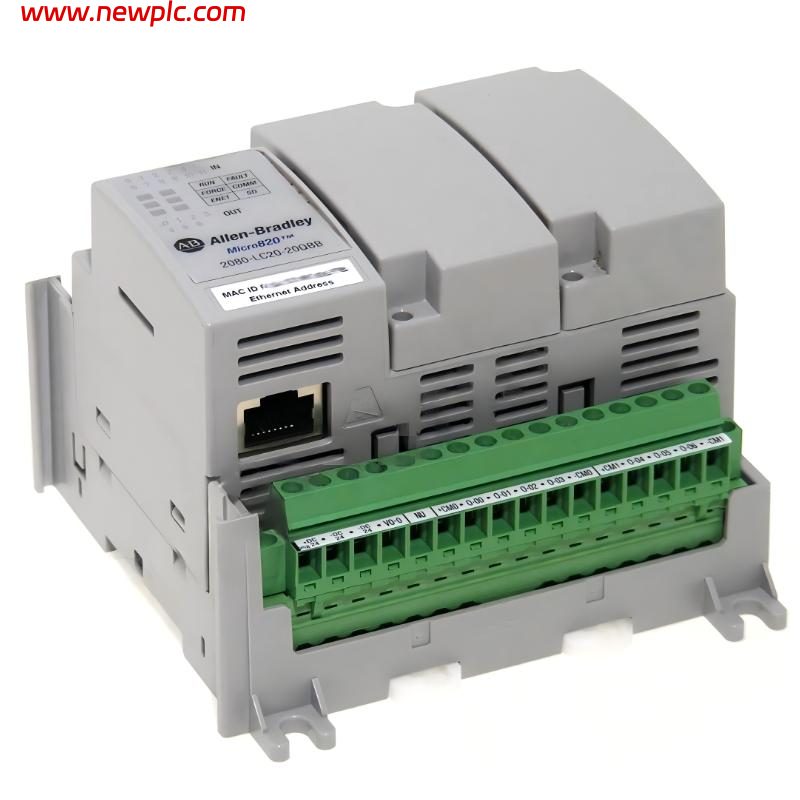

| Ethernet Port | 1 × Embedded EtherNet/IP Port |
| Serial Port | RS-232 / RS-485 Non-isolated |
| Communication Protocols | EtherNet/IP, Modbus RTU, Modbus TCP, CIP |
| Expansion Support | 2 Plug-in Module Slots |
| Memory Support | MicroSD Card Slot |
| Real-Time Clock | Embedded RTC |
| Programming Software | Connected Components Workbench (CCW) |
| Programming Languages | Ladder Diagram, Function Block, Structured Text |
| Terminal Type | Removable Terminal Block (RTB) |

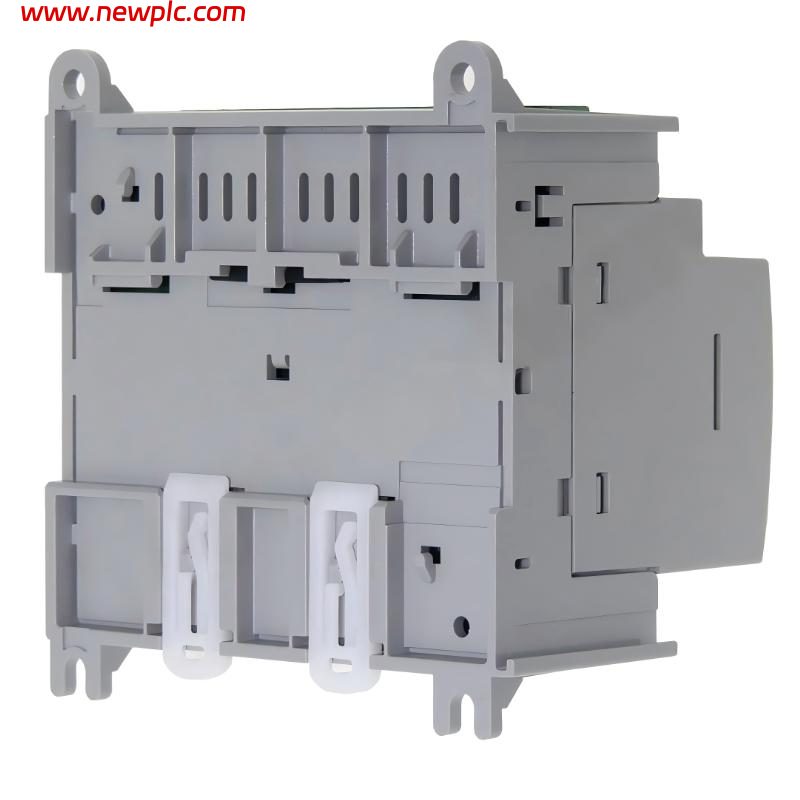

| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| Maximum Power Consumption | 5.62 W (without plug-in modules) |
| Maximum Power Dissipation | 6 W |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE, CSA, KC |
| Lifecycle Status | Active |
| Dimensions (H × W × D) | 90 × 104 × 75 mm |
| Approximate Weight | 0.38 kg |
| Typical Applications | Small Machine Control, OEM Equipment, HVAC, Pumps, Conveyors, Remote Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 2080-LC20-20QBBR used for?
A1: The 2080-LC20-20QBBR is a Micro820 programmable controller designed for compact machine automation and remote industrial control applications.
Q2: How many built-in I/O points does the 2080-LC20-20QBBR provide?
A2: The controller includes 20 onboard I/O points consisting of 12 digital inputs, 7 digital sourcing outputs, and 1 analog output, plus 4 configurable analog inputs.
Q3: Does the 2080-LC20-20QBBR support Ethernet communication?
A3: Yes. The controller includes an embedded EtherNet/IP port and an RS-232/RS-485 serial communication port.
Q4: What type of outputs are included in the 2080-LC20-20QBBR?
A4: The controller provides 7 × 24V DC sourcing outputs and 1 × 0…10V analog output.
Q5: Does the controller support removable terminal blocks?
A5: Yes. The “R” suffix in the catalog number indicates removable terminal block (RTB) connections.
Q6: What are the actual dimensions of the 2080-LC20-20QBBR?
A6: The controller dimensions are 90 × 104 × 75 mm (3.54 × 4.09 × 2.95 in.).
Q7: What is the actual weight of the 2080-LC20-20QBBR?
A7: The approximate shipping weight is 0.38 kg (0.83 lb).
Q8: What are common applications for the 2080-LC20-20QBBR?
A8: Common applications include packaging equipment, HVAC systems, conveyor control, pump automation, remote monitoring, and OEM machine control.
