Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Micro830 |

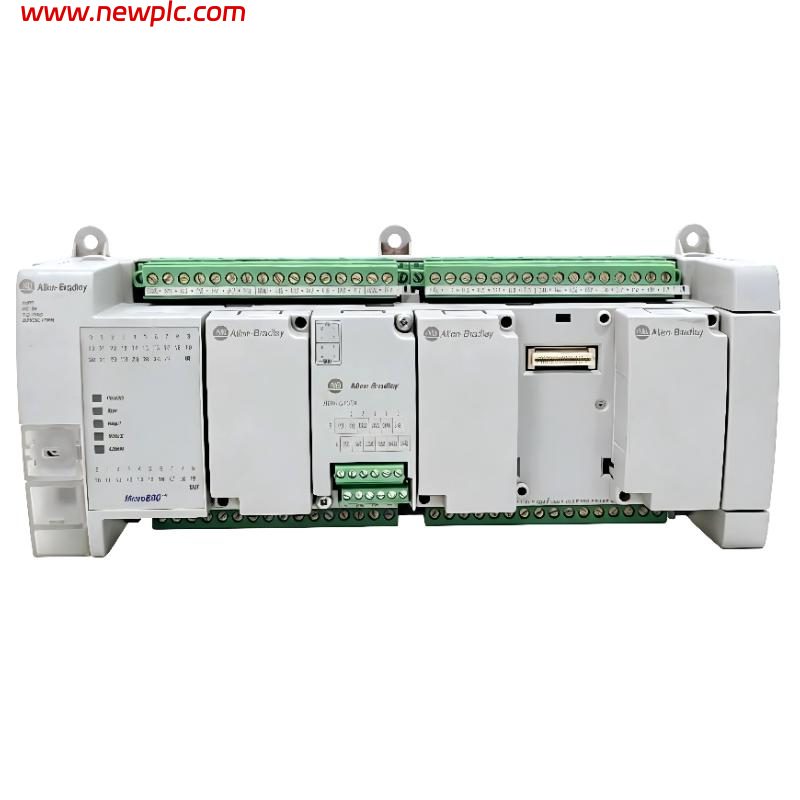

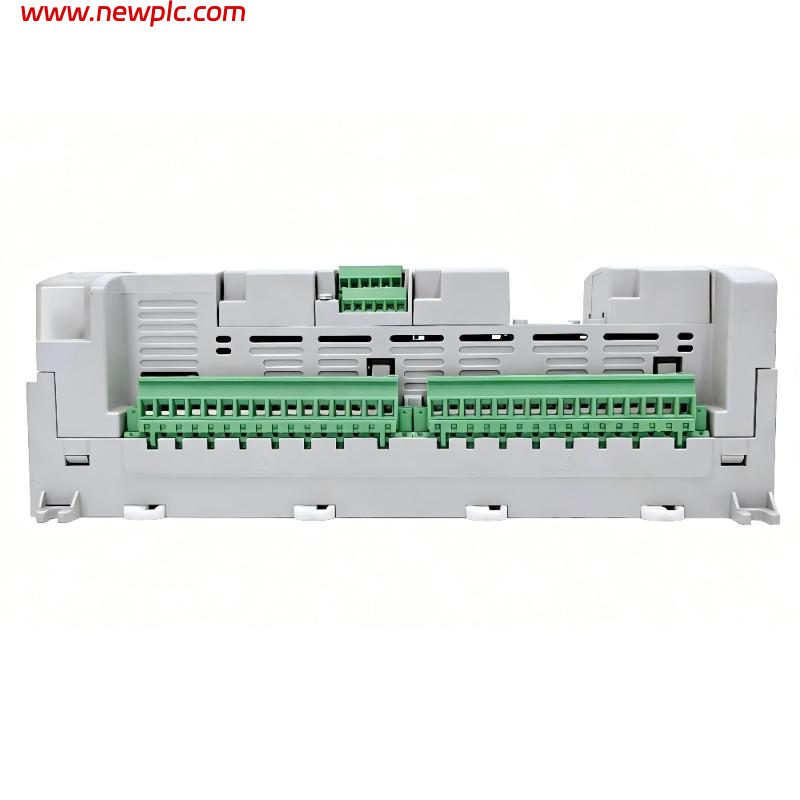

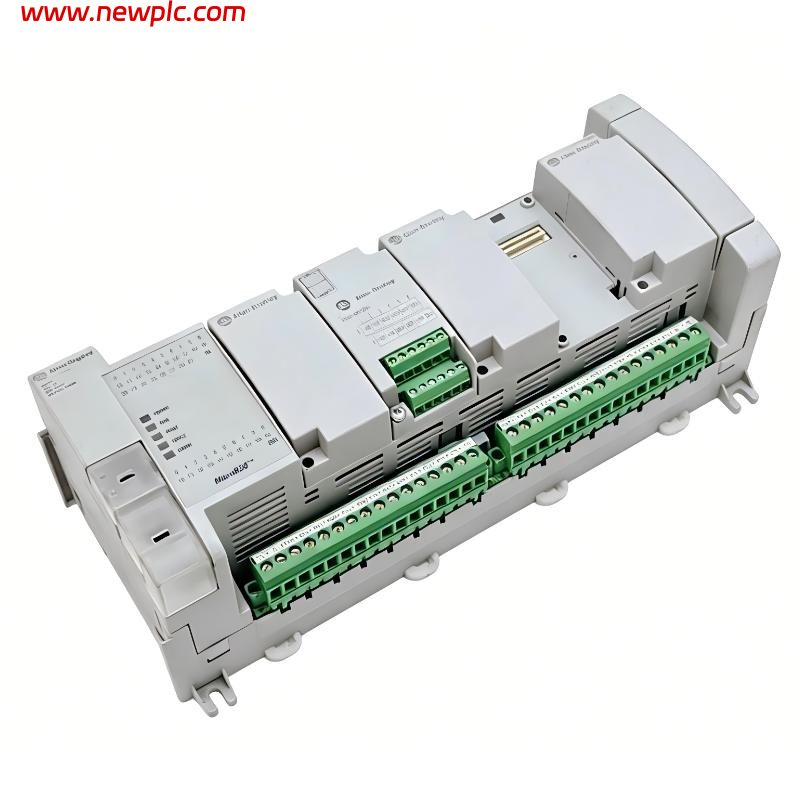

| Model Number | 2080-LC30-48QBB |
| Product Type | Programmable Logic Controller (PLC) |
| Controller Family | Micro830 Controller |
| Embedded I/O | 48 Points |
| Digital Inputs | 28 × 24V DC/AC Inputs |
| Digital Outputs | 20 × 24V DC Sourcing Outputs |
| Output Type | Transistor Source (NPN) |
| Power Supply | 24V DC |
| Power Supply Voltage Range | 20.4…26.4V DC |
| Communication Ports | USB Programming Port, RS-232, RS-485 |
| Communication Protocols | Modbus RTU |
| Ethernet Support | No Embedded Ethernet |
| Program Memory | 4 KB |
| Data Memory | 10 KB |
| Expansion Capability | Up to 5 Plug-in Modules |
| High-Speed Counters | 6 HSC Channels |
| PTO/PWM Outputs | 3 PTO/PWM Outputs |
| Programming Software | Connected Components Workbench (CCW) |
| Programming Languages | Ladder Diagram, Function Block, Structured Text |

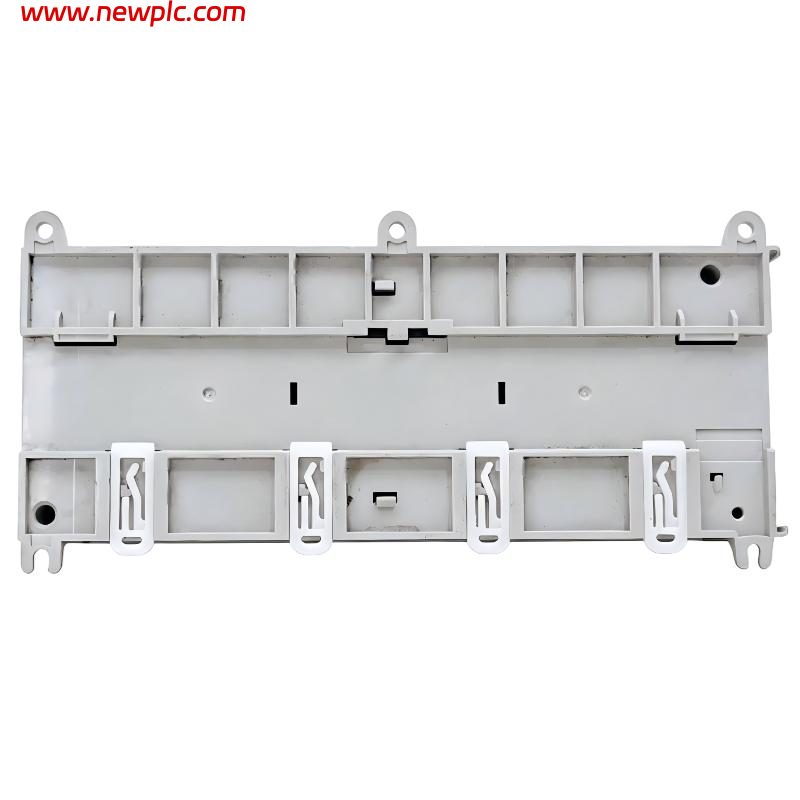

| Mounting Type | DIN Rail or Panel Mount |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Maximum Power Consumption | 18.2 W |
| Certifications | UL, CE, CSA, KC, Marine |
| Lifecycle Status | Active |
| Actual Dimensions (H × W × D) | 90 × 230 × 80 mm |
| Actual Weight | Approx. 0.725 kg |
| Typical Applications | Stand-alone Machine Control, Material Handling, Packaging Machines, OEM Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 2080-LC30-48QBB used for?
A1: The 2080-LC30-48QBB is a Micro830 programmable controller designed for stand-alone machine automation and OEM equipment control.
Q2: How many onboard I/O points does the 2080-LC30-48QBB provide?
A2: The controller includes 48 embedded I/O points consisting of 28 digital inputs and 20 sourcing digital outputs.
Q3: Does the 2080-LC30-48QBB include Ethernet communication?
A3: No. This Micro830 model provides USB, RS-232, and RS-485 communication ports, but does not include embedded EtherNet/IP.
Q4: What type of outputs are included in the 2080-LC30-48QBB?
A4: The controller provides 20 × 24V DC sourcing transistor outputs (NPN type).
Q5: What are the actual dimensions of the 2080-LC30-48QBB?
A5: The controller dimensions are 90 × 230 × 80 mm (H × W × D).
Q6: What is the actual weight of the 2080-LC30-48QBB?
A6: The approximate shipping weight is 0.725 kg (1.60 lb).
Q7: Does the 2080-LC30-48QBB support expansion modules?
A7: Yes. The controller supports up to five Micro800 plug-in modules for added functionality and I/O expansion.
Q8: What are common applications for the 2080-LC30-48QBB?
A8: Common applications include packaging equipment, material handling systems, stand-alone machines, conveyor systems, and OEM automation equipment.
